Engine Coolant Thermostat Guide for 1995-2001 Ford E-350 Econoline
Keep your Econoline's engine temperature in check by understanding when and how to replace a faulty thermostat.
- A thermostat failing 'open' causes a cold-running engine and poor heat, often triggering a P0128 code.
- A thermostat failing 'closed' causes rapid overheating and can lead to critical engine damage.
- For 7.3L Powerstroke engines, consider if a stock (195°F) or higher-temp (203°F) thermostat is right for your climate and use.
- Replacement is a straightforward DIY job for most owners, located at the top of the engine where the upper radiator hose connects.
Is Your E-350's Thermostat Failing?
A thermostat is a simple part, but its failure can cause noticeable problems. The two main ways a thermostat fails are by sticking open or sticking closed. Each has its own set of symptoms.
Symptoms of a Thermostat Stuck Open:
- Engine Takes Forever to Warm Up: The temperature gauge on your dash may stay on the cold side for an unusually long time.
- Poor Heater Performance: Because the engine isn't reaching full temperature, the coolant isn't hot enough to provide good heat to the cabin. This is especially noticeable in winter.
- Check Engine Light: A thermostat that's stuck open will often trigger a specific trouble code, P0128, which means the coolant temperature is below the thermostat's regulating temperature. 🎬 Learn more about what causes the P0128 trouble code.
- Decreased Fuel Economy: An engine that runs too cool is less efficient, leading to more fuel consumption.
Symptoms of a Thermostat Stuck Closed:
- Engine Overheating: This is the most serious symptom. The temperature gauge will climb into the red zone because hot coolant is trapped in the engine and can't get to the radiator.
- Gurgling or Boiling Sounds: You may hear sounds from the engine bay after shutting off the van as the trapped coolant boils.
- Coolant Leaks: Extreme pressure from overheating can force coolant out of the reservoir or past seals and gaskets near the thermostat housing.
Overheating Can Cause Severe Engine Damage
If you see the temperature gauge climbing into the red, pull over and shut off the engine as soon as it is safe to do so. Driving with an overheating engine can lead to warped cylinder heads or a blown head gasket, which are very expensive repairs.
Choosing the Right Aftermarket Thermostat
For the 1995-2001 E-350, you have several reliable aftermarket options. OEM quality is excellent, but many aftermarket brands provide similar performance for less money. The key is choosing the correct temperature rating and a reputable brand.
| Brand Tier | Brands | Typical Price | Notes |
|---|---|---|---|
| Good | Motorad, Mr Gasket | $7 - $20 | Motorad is a common OEM supplier for many brands and offers a reliable, budget-friendly choice that meets factory specifications. Many basic replacement kits fall in this category. |
| Better | Gates, Calorstat | $15 - $35 | Gates is a well-respected name in cooling system parts, known for quality belts, hoses, and thermostats that often meet or exceed OEM standards. They are a trusted choice for a durable replacement. |
| Best / Performance | Mishimoto, Edelbrock | $45 - $70 | These brands offer high-performance options. For example, Mishimoto offers a thermostat for the 7.3L Powerstroke that opens at a slightly higher temperature (205°F) to help the engine warm up faster, which can be beneficial in colder climates. |
Pro Tip: Check the Temperature Rating
For the 7.3L Powerstroke engines, there's a debate between the stock 192°F/195°F thermostat and a 203°F/205°F version. Proponents of the higher-temp thermostat claim it helps the diesel engine run more efficiently, especially under light load. 🎬 See how to install a 203-degree thermostat and housing. For gasoline engines like the 5.4L or 6.8L, sticking with the OEM-specified 192°F or 195°F thermostat is recommended.
Frequently Asked Questions (FAQ)
Is there a recall on the thermostat for my E-350?
No, there are no specific recalls issued by the NHTSA for the engine coolant thermostat on the 1995-2001 Ford E-350 Econoline. There was a major recall for a speed control deactivation switch that could cause a fire, but it is unrelated to the thermostat.
Do I need to replace the gasket or O-ring too?
Yes, absolutely. You should never reuse the old thermostat gasket or O-ring. Many thermostats come with a new one, but sometimes you must buy it separately. Always confirm you have a new gasket before starting the job to ensure a leak-free seal.
Can I just remove the thermostat and run without one?
No, this is a bad idea. Running without a thermostat will cause the engine to warm up very slowly, or not at all, leading to poor performance, bad fuel mileage, and a check engine light (P0128). On some engines, like the 7.3L Powerstroke, removing it or using the wrong type can also disrupt coolant flow and cause overheating in the rear cylinders.

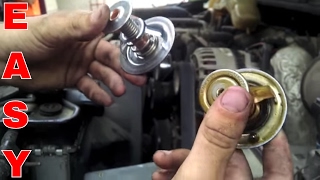

How difficult is it to replace the thermostat myself? 🎬 Watch this step-by-step E-350 thermostat replacement and P0128 fix.
For most owners with basic hand tools, this is a very feasible DIY job. The thermostat is located on the top front of the engine, where the upper radiator hose connects to the thermostat housing. The main steps involve partially draining the coolant, removing the air intake assembly for access, unbolting the housing (usually two 10mm bolts), swapping the thermostat, and then reassembling and refilling the coolant.
Helpful Videos
Technical Specifications
OEM Part Numbers: RT-1203
Standard Temperature: 192°F or 195°F. High-Temp (Diesel): 203°F or 205°F. A new gasket or O-ring is required for installation.
