Ford Windstar Horn Replacement Guide for 1995-2002 Models
Is your 1995-2002 Ford Windstar horn silent? Here’s what you need to know before you buy a new one.
- Always check the horn fuse and relay before buying a new horn; they are the most common failure points.
- The horn is located behind the driver's side front wheel splash shield, making it vulnerable to corrosion.
- If your airbag light is on, the problem is likely the clock spring in the steering column, not the horn assembly.
- Aftermarket brands like Standard Ignition offer reliable quality, while 'Replacement' brands provide a lower-cost alternative.
Is Your Windstar's Horn Really Broken?
When the horn stops working on a 1995-2002 Ford Windstar, the horn assembly itself is not always the problem. More often, the issue is a simpler electrical part. Before spending money on a new horn, check these items first:

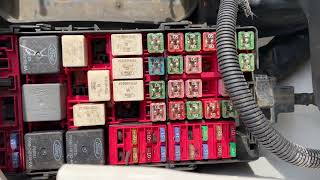

- The Fuse: The easiest and cheapest fix. Check your owner's manual for the location of the horn fuse 🎬 Watch: How to find your Windstar's fuse box location in the fuse box and see if it has blown. A blown fuse often points to a short circuit in the wiring.
- The Horn Relay: This is a small electrical switch that controls the power to the horn. You can often test it by swapping it with an identical relay from another system in the fuse box (like the one for the air conditioner). If the horn works with the swapped relay, you just need a new relay.

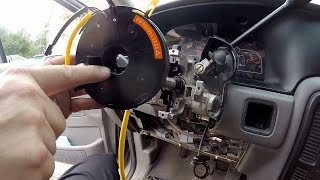

- The Clock Spring: This part is inside the steering column and allows the horn button and airbag to stay connected while the steering wheel turns. If your airbag light is on, or your cruise control also stopped working, the clock spring is the likely culprit. This is a more complex repair.
If you've checked the fuse and relay and they are fine, and there are no other related symptoms, the horn assembly itself may have failed due to age, corrosion, or internal damage.
Signs of a Failing Horn
You might need a new horn if you notice these symptoms:
- No Sound: The most obvious symptom. After checking the fuse and relay, a silent horn points to a failed horn unit or a wiring problem.
- Weak or Altered Sound: If your horn sounds quiet, muffled, or different than it used to, the internal diaphragm could be damaged. Most vehicles have a high and low-tone horn; if one fails, the sound will change noticeably.
- Corrosion: The horn on the Windstar is located behind the driver's side front wheel splash shield, exposing it to moisture and road salt. Visible rust or corroded electrical connectors can cause it to fail. Sometimes, simply cleaning the connectors can fix the issue.
Pro Tip: Test the Horn Directly
If you can safely access the horn, you can test it by disconnecting its electrical connector and using jumper wires to connect it directly to your vehicle's 12V battery. If the horn makes a sound, the problem is elsewhere in the circuit. If it remains silent, the horn itself is bad.
Choosing the Right Aftermarket Horn
For the 1995-2002 Ford Windstar, you don't need to buy an expensive OEM part from the dealer. Aftermarket horns offer a good balance of quality and value.
Brand Options
- Standard Ignition (SMP): Standard Ignition is a well-known and respected brand in the automotive aftermarket, specializing in electrical and engine management parts. Their horns are designed as direct OE replacements, ensuring proper fit and function. They are generally considered a high-quality option that meets or exceeds original specifications, making them a reliable choice for a long-lasting repair.
- Replacement Brand: This is often a private-label or generic brand that provides a more budget-friendly option. These parts are designed to fit and function like the original and can be a good value for vehicle owners looking to save money. While they may not have the long-standing reputation of a brand like Standard Ignition, they serve as a practical, lower-cost alternative.
Estimated Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Horn | $36 - $58 |
| New OEM Horn | $70 - $110 |
| Shop Labor for Installation | $80 - $150 |
Frequently Asked Questions (FAQ)
Where is the horn located on my 1995-2002 Ford Windstar?
The horn assembly is located behind the splash shield in front of the driver's side front tire. You will need to remove a few screws and retainers on the plastic shield to see and access it.
Can I replace my Windstar's horn myself?
Yes, this is a relatively easy DIY job for most people. It involves removing the splash shield, unplugging one electrical connector, and removing a single bolt. Basic hand tools are all that's required, and the job can typically be done in under an hour.
Was there a recall on the Ford Windstar horn?
No specific recalls were found for the horn assembly on the 1995-2002 Ford Windstar. However, issues with the clock spring in the steering column, which can cause the horn to fail, have been noted in some Ford vehicles. If your airbag light is also on, the problem is likely the clock spring, not the horn itself.
Why do I need to check the fuse and relay first?
The fuse and relay are the most common and cheapest points of failure in the horn circuit. A new horn will not work if the fuse is blown or the relay is bad. Checking these simple parts first can save you the time and money of replacing a horn that wasn't broken.
Helpful Videos
Technical Specifications
System Voltage: 12V. Most systems use a dual-horn setup (high and low tone).
