Engine Oil Pan Gasket Set for the 1995-2004 Buick Regal: A Complete Guide
Stop that oil leak for good by choosing the right oil pan gasket for your Regal's 3.8L V6 engine.
- First, rule out a valve cover gasket leak, which is a known fire-hazard recall item on 1997-2004 Regals and often mimics an oil pan leak.
- This is a difficult, labor-intensive repair; choosing a high-quality gasket from a brand like Victor Reinz is recommended to avoid repeat work.
- Due to the high labor cost ($560+), consider replacing the entire oil pan along with the gasket to ensure a flat, rust-free sealing surface.
- Do not overtighten the oil pan bolts; the correct torque is low (124 inch-lbs) and helps prevent gasket damage.
Is Your Buick Regal Leaking Oil? First, Check This Common Issue.
Before you assume your oil pan gasket is the problem, you need to know about a major safety recall affecting 1997-2004 Buick Regals. GM issued recall #15V701000 because the valve cover gaskets on the 3.8L V6 engine are prone to leaking oil onto the hot exhaust manifold, which can cause an engine fire. An oil leak from the valve cover is higher up on the engine and will drip down, making it look exactly like an oil pan gasket leak. Always check or have a mechanic check the valve cover gaskets first, as this is a very common point of failure and could be a free repair at a dealership.
🎬 See this step-by-step guide for replacing your valve cover gaskets.⚠️ Important Recall Information
A leaking valve cover gasket is a known fire hazard on these vehicles. Even if you are sure the leak is from the oil pan, it is wise to inspect the valve cover gaskets for any signs of seepage. Misdiagnosing the leak can be a costly mistake and a serious safety risk.
Symptoms of a Failing Oil Pan Gasket
If you've ruled out the valve covers, here are the classic signs that your oil pan gasket has failed:
- Oil Puddles: The most obvious sign is finding fresh puddles of dark, slick oil on the ground where you park your car.
- Burning Oil Smell: If the leak is slow and gets blown onto the exhaust system while driving, you'll notice a strong, sharp smell of burning oil, especially when the car is stopped.
- Smoke from Engine Bay: In cases of a more severe leak, oil dripping onto the hot exhaust can produce visible smoke from under the hood.
- Low Oil Light: A significant leak will cause your engine oil level to drop, potentially triggering the low oil warning light on your dashboard. Driving with very low oil can cause catastrophic engine damage.
Choosing the Right Aftermarket Gasket for Your Regal
The replacement is a labor-intensive job, so choosing a quality gasket is essential to avoid doing the work twice. The original stamped-steel oil pans on these Regals are known to have uneven sealing surfaces, which can cause repeat leaks even with a new gasket (per GM TSB #01-06-01-008A). For this reason, gasket design and material are as important as the brand.
Aftermarket Brand Tiers
Here’s an honest look at the brands available:
- Victor Reinz / Victor Gaskets: Often considered an OEM-quality supplier for many European and domestic vehicles. Victor Reinz gaskets are known for their precise fit and durable materials, making them a top-tier choice for a leak-free seal. This is a reliable option if you want peace of mind.
- Sce Gaskets: This brand specializes in high-performance and racing gaskets, such as copper and cut-ring head gaskets. While they are known for quality in extreme applications, an oil pan gasket from SCE might be overkill for a stock Buick Regal and is typically aimed at modified, high-horsepower engines.
- DNJ Engine Components: DNJ is generally known as a budget-friendly brand offering complete engine gasket kits. While they provide an affordable option, there is less feedback available regarding the long-term durability of their individual gaskets compared to premium brands.

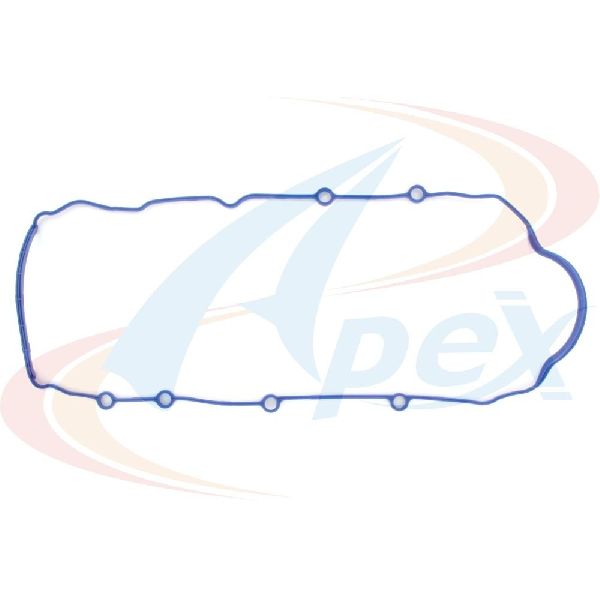

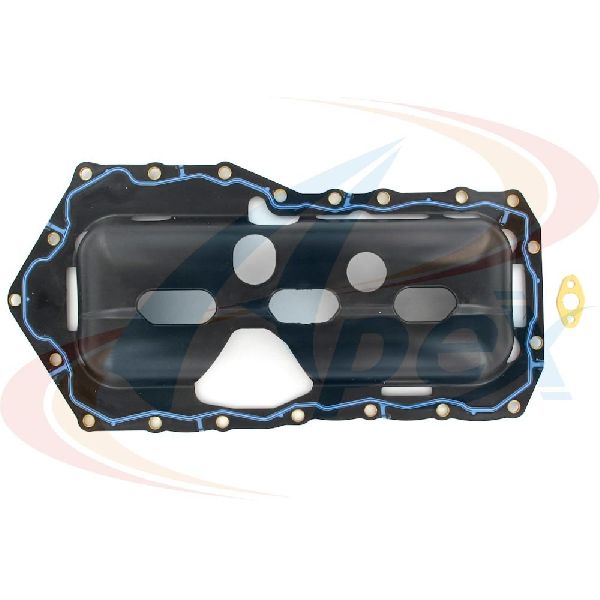

- Apex: Forum discussions on Apex gaskets are mixed. They are a budget-friendly option, and some users report success, while others prefer to stick with more established names for difficult jobs. Consider this a standard replacement-grade part.
Pro Tip: Consider the Material
Some mechanics and owners on forums for GM 3800 engines prefer thicker rubber or even cork gaskets over the standard thin rubber ones, believing they create a better seal on potentially warped original oil pans. When choosing your gasket, pay attention to its design and thickness, not just the brand name.
Cost to Replace a 1995-2004 Buick Regal Oil Pan Gasket
This is not a cheap repair, primarily due to the high labor cost. The job often requires lifting the engine to gain clearance to remove the pan. Because of the high labor cost, it is often recommended to replace the oil pan itself at the same time, especially if it is rusted or warped.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $34 - $89 |
| New OEM Gasket | $130 - $145 |
| Shop Labor | $560 - $820 |
| Total Professional Replacement | $695 - $960+ |
Frequently Asked Questions
Is this a DIY-friendly job?
No, this is considered a difficult job for a DIY mechanic. The process often involves supporting the engine with a hoist and removing motor mounts to get the pan out. 🎬 Watch: A complete walkthrough of the oil pan replacement process. Without the right tools and experience, it's best left to a professional.
Should I use RTV sealant with the gasket?
While some gaskets are designed to be installed dry, a GM Technical Service Bulletin (TSB #01-06-01-008A) for repeat leaks on these models recommends using RTV sealant. Always follow the instructions included with your specific gasket set, but applying a small amount of RTV at the corners where the engine block and timing cover meet is common practice.
Should I replace the oil pan at the same time?
Given the high labor cost, it is highly recommended. The original steel pans can rust, and the sealing rails can warp over time, leading to new leaks. Replacing the pan and gasket together ensures a flat, clean sealing surface and prevents you from having to pay for the same labor twice.
What is the torque spec for the oil pan bolts?
For the 3.8L V6, the oil pan bolts should be tightened to 14 Nm, which is approximately 124 inch-pounds. It is critical to tighten the bolts in a crisscross pattern and not to overtighten them, as this can damage the new gasket or the pan itself.
Helpful Videos
Technical Specifications
Fits 3.8L V6 Engine (RPO L36, L67). Gasket material varies by brand (molded rubber, cork, composite). Replacement often requires engine support and removal of flywheel cover and oil level sensor.
