A Guide to Replacing the Engine Oil Pan on Your 1995-2004 Honda Odyssey
A leaking or damaged oil pan is a common issue on older Odysseys; here is what you need to know before you buy a replacement.
- First, confirm the leak is from the oil pan and not a component higher up on the engine.
- Identify your vehicle generation: 1995-98 models use a steel pan and rubber gasket, while 1999-04 models use an aluminum pan and liquid sealant.
- Replacing the pan on the 1999-04 V6 is a complex job that requires exhaust removal and careful use of sealant.
- Always use a new drain plug gasket and torque all bolts (pan bolts and drain plug) to factory specifications to prevent leaks.
Is It Really Your Oil Pan Leaking?
Before you replace your oil pan, make sure it's the real source of the leak. On Honda engines, oil can leak from higher up and drip down, making it look like the pan is the problem. Check the valve cover gasket, VTEC solenoid gasket, and the area around the oil filter. A leak from the oil pan itself will typically be from the drain plug, the gasket seal where it meets the engine block, or from a crack or rust hole in the pan itself.
First Gen vs. Second Gen: A Tale of Two Pans
The 1995-2004 Odyssey spans two different generations with two completely different engine oil pans. It is critical to know which one you have.

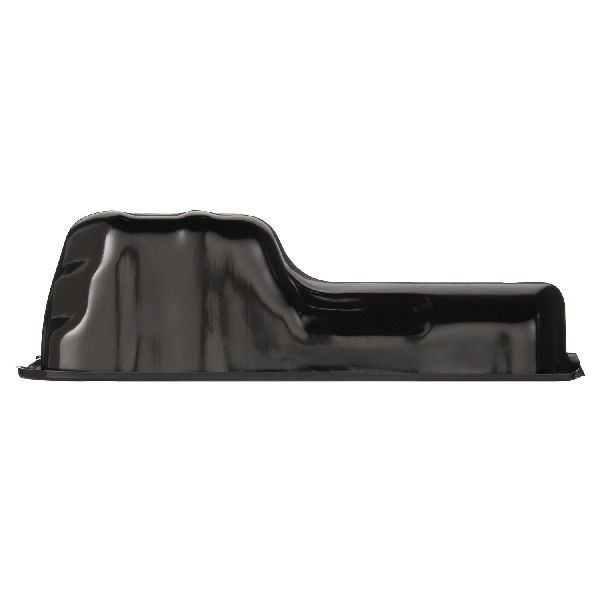

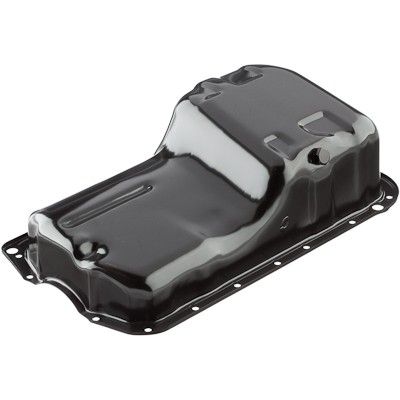

- 1995-1998 Honda Odyssey (First Generation): These models use a 4-cylinder engine and have a stamped steel oil pan. They are prone to rusting out, especially in areas where road salt is used. The good news is that they use a pre-formed rubber gasket which makes replacement a bit simpler.

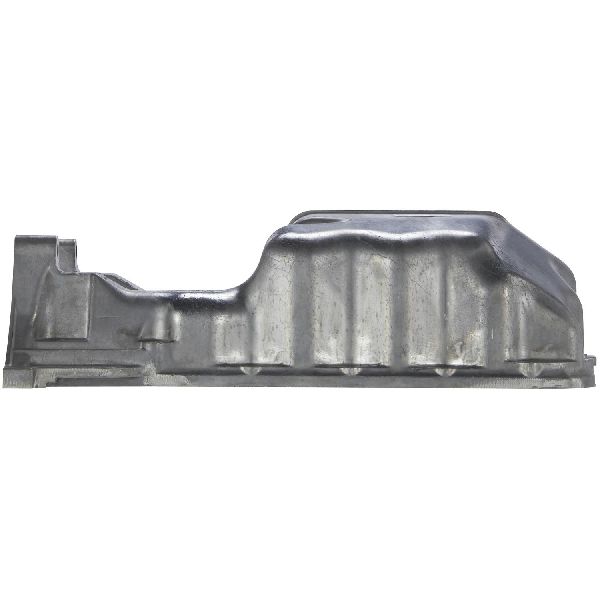

- 1999-2004 Honda Odyssey (Second Generation): These models have a 3.5L V6 engine with a cast aluminum oil pan. These pans don't rust, but the most common reason for replacement is stripped or damaged drain plug threads. They do not use a rubber gasket. Instead, they are sealed to the engine block with a special liquid sealant, like Hondabond.
V6 Replacement is an Advanced Job
Replacing the aluminum pan on the 1999-2004 V6 Odyssey is much more difficult than on the earlier 4-cylinder. The job requires removing the exhaust crossover pipe, and sometimes loosening a motor mount and slightly jacking up the engine to get enough clearance. It also requires meticulous cleaning of the old sealant and careful application of new liquid gasket to prevent future leaks. This is a challenging job for a beginner.
Choosing the Right Aftermarket Oil Pan
For a vehicle of this age, an aftermarket oil pan is a cost-effective choice. The quality of a simple part like an oil pan is generally good across reputable brands. They are often designed to be direct replacements for the original.
- Established Brands (Good Value): Brands like Dorman and Spectra are widely available and offer a good balance of quality and price. They often feature corrosion-resistant coatings which is a plus for the steel pans.
- Budget-Friendly Options: Brands like URO Parts and MTC are typically less expensive. While some users report success with these brands for simple metal parts, others have noted inconsistent quality. For an oil pan, the risk is relatively low compared to a complex electronic part.
- Other Brands: ATP, Pioneer Cable, and Skyward are also available, but there is less widespread feedback on their quality for this specific application.
Estimated Replacement Costs
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $57 - $175 |
| New OEM Oil Pan | $160 - $370 |
| Shop Labor | $230 - $340 |
| Total Professional Job | $290 - $515 |
Frequently Asked Questions
Can I just repair my old oil pan?
For a steel pan with a small rust hole, a temporary patch might be possible but is not recommended for a long-term solution. For an aluminum pan with stripped threads, a thread repair kit (like a Heli-Coil) is an option, but it requires careful installation. Given the affordable cost of a new aftermarket pan, replacement is almost always the better and more reliable option.
Do I need a gasket or sealant?
This is critical. If you have a 1995-1998 Odyssey with a steel pan, you need a rubber oil pan gasket. If you have a 1999-2004 Odyssey with an aluminum pan, you need to use a high-quality RTV liquid gasket sealant like Permatex Ultra Grey or OEM Hondabond HT. Do not try to use a rubber gasket on a V6 model.
What are the torque specs for the pan bolts?
The small bolts holding the pan to the engine block are very important to tighten correctly. They should be tightened in a specific sequence, usually starting from the center and working your way out. The torque value is very low, typically around 8.7 ft-lbs (or 104 inch-pounds). Over-tightening can warp the pan or damage the threads, causing leaks.
Are there any recalls on the Honda Odyssey oil pan?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no safety recalls specifically for the engine oil pan on 1995-2004 Honda Odyssey models.
Technical Specifications
OEM Part Numbers: 11200-P8A-A00 (Pan, 1999-2004 V6) 11200-PAA-A00 (Pan, 1998 4-Cyl) 11200-PT0-010 (Pan, 1995-1997 4-Cyl) 11251-P0A-000 (Gasket, 1995-1998 4-Cyl)
Pan material is either stamped steel (1995-98) or cast aluminum (1999-04). Seal is a rubber gasket for steel pans and liquid RTV sealant for aluminum pans. Pan bolt torque is approximately 8.7 ft-lbs (104 in-lbs). Drain plug size is M14x1.5.
