1995-2005 Buick Regal Engine Timing Chain and Kit Replacement Guide
Learn the symptoms of a bad timing chain on your 3.8L V6 and how to choose the right replacement kit.
- The 3.8L V6 is a non-interference engine, so a broken chain is unlikely to destroy your engine.
- The most common symptom of failure is a rattling noise on startup, indicating a worn tensioner.
- Always replace the complete timing kit (chain, sprockets, tensioner) for a lasting repair.
- Consider replacing the water pump during the job to save on future labor costs.
Is Your Buick Regal's Timing Chain Failing?
The GM 3.8L V6 engine in the 1995-2005 Buick Regal is known for its long life, and the timing chain is no exception. Many owners see well over 150,000 miles on the original parts. However, no part lasts forever. The most common failure isn't the metal chain itself, but the plastic tensioner or damper guides that keep it tight. When these wear out, the chain becomes loose, leading to noise and performance problems.
Common Symptoms of a Worn Timing Chain
🎬 Watch: Top 5 symptoms of a bad timing chain- Rattling Noise on Startup: This is the most common sign. You may hear a brief, loud rattling or scraping sound for a few seconds when you first start the engine. This noise comes from the loose timing chain slapping against the inside of the timing cover before oil pressure builds up to tighten the tensioner.
- Persistent Engine Noise: If the wear is severe, the rattling or whirring noise may not go away as the engine warms up.
- Check Engine Light: A significantly stretched chain can affect engine timing enough to trigger a Check Engine Light. You might see codes like P0016 (Crankshaft Position - Camshaft Position Correlation). This is usually a sign of advanced wear.
- Engine Performance Issues: In late stages of failure, you might notice a rough idle, engine hesitation, stalling, or a general lack of power as the camshaft and crankshaft are no longer perfectly in sync.
Good News: The 3.8L is a Non-Interference Engine
The Buick 3.8L V6 is a non-interference engine. This means that if the timing chain were to break completely, the pistons would not hit and destroy the valves. While a broken chain will leave you stranded, it is very unlikely to cause catastrophic internal engine damage, which is a major advantage for this engine design.
Choosing the Right Aftermarket Timing Kit
For a vehicle of this age, a high-quality aftermarket timing chain kit offers the best balance of performance and value. The original OEM parts have proven durable, but you can get similar or better quality from a reputable aftermarket brand for less money.

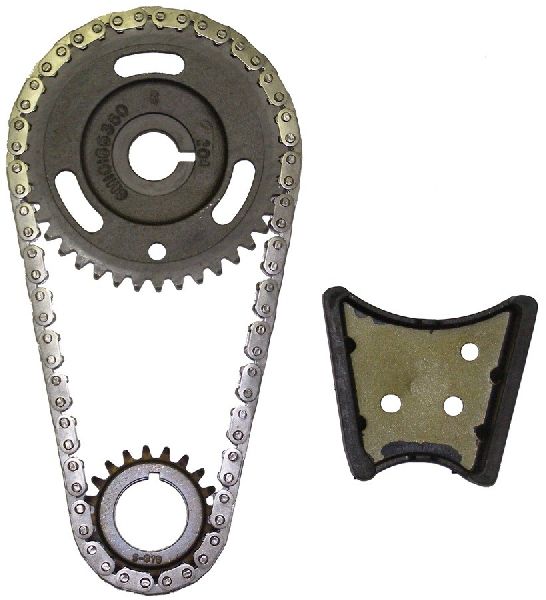

Cloyes is a well-regarded brand for timing components that meets or exceeds original factory performance requirements. Their kits are a reliable choice and typically include all the necessary parts for a complete job:
- Timing Chain
- Camshaft Sprocket
- Crankshaft Sprocket

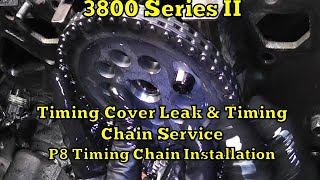

- Tensioner and Damper/Guide 🎬 Watch: Step-by-step guide to installing a new 3800 timing chain
Always buy a complete kit. Replacing just the chain without the sprockets and tensioner is a mistake. Worn sprocket teeth will cause a new chain to wear out very quickly, and a weak tensioner won't keep it tight.
Other Known Engine Issues
Note: While searching for timing chain issues, you may find information about an engine fire risk. This was a separate issue covered by a safety recall (NHTSA 08V-118 and others) for 1997-2003 Regals. It was caused by oil leaking from the front valve cover gasket onto the hot exhaust manifold, NOT by a timing chain problem. Ensure this recall repair has been performed on your vehicle.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit (e.g., Cloyes) | $70 - $90 |
| New OEM Kit | $150 - $250 |
| Shop Labor | $800 - $1,500 |
Frequently Asked Questions (FAQ)
Is the 3.8L V6 timing chain a common problem?
No, it is not considered a common problem. The engine is well-known for its durability, including the timing components. Failures typically happen at high mileage (over 150,000 miles) and are usually due to the plastic tensioner wearing out, not the chain itself.
Should I replace the water pump at the same time?
Yes, it is highly recommended. The timing chain replacement job requires removing many of the same parts needed to access the water pump. Replacing the water pump at the same time is a smart way to save hundreds of dollars in future labor costs.
🎬 See this walkthrough for replacing the timing cover and water pumpIs the Buick 3.8L an interference engine?
No, it is a non-interference engine. This is a significant benefit, as a broken timing chain is very unlikely to cause severe internal engine damage like bent valves or damaged pistons.
Can I just replace the noisy tensioner?
It is not recommended. If the tensioner is worn enough to cause noise, the chain has likely stretched and the sprocket teeth have also worn down. For the repair to last, you must replace the chain, sprockets, and tensioner as a complete kit.
Helpful Videos
![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
Fits 1995-2005 Buick Regal models with the 3.8L (3800) V6 engine. Kit should include chain, camshaft sprocket, crankshaft sprocket, tensioner, and damper.
