Chevrolet Astro A/C Clutch Cycle Switch Guide (1995-2005)
Is your Astro's A/C blowing warm or not working at all? The clutch cycle switch could be the simple fix you need.
- A faulty A/C clutch cycle switch is a common cause for A/C failure on the Astro and is a simple, inexpensive DIY fix.
- Symptoms often mimic more serious issues, like a bad compressor, but usually involve intermittent cooling or a complete lack of cold air.
- You do not need to evacuate the A/C system to replace this switch, as a Schrader valve prevents refrigerant loss.
- For this part, a quality aftermarket brand like Four Seasons offers a good balance of price and reliability, while ACDelco is the OE standard.
Symptoms of a Failing A/C Clutch Cycle Switch
When the A/C clutch cycle switch starts to fail on your Astro, it can cause a range of frustrating A/C problems. Because the switch controls the compressor, the symptoms often look like a major A/C failure, but it's often just this inexpensive sensor. Watch for these common signs:
- A/C Blows Warm Air: The most common symptom is an A/C system that doesn't cool at all. If the switch fails completely, it won't send the signal to turn the compressor on, so the cooling process never starts.
- Intermittent Cooling: You might notice the air from your vents switching between cold and cool or warm. A faulty switch can send erratic signals, causing the compressor to cycle on and off incorrectly.
- Compressor Clutch Doesn't Engage: If you turn on the A/C and look at the compressor pulley in the engine bay, the center part (the clutch) should click and start spinning with the pulley. If it never engages, the cycling switch could be the culprit, especially if you know the system has enough refrigerant.
- Rapid Clicking from Engine Bay: An audible, rapid clicking sound from the A/C compressor can indicate the clutch is trying to engage and disengage too quickly. This is a classic sign of a failing switch.
Check Refrigerant First
Many of these symptoms, especially a non-working A/C, can also be caused by low refrigerant from a leak. The cycling switch is designed to shut the system off if refrigerant is low. Before replacing the switch, it's wise to have the system pressure checked to rule out a leak.
Choosing the Right Aftermarket A/C Switch
For a part like the A/C clutch cycle switch, you don't necessarily need to buy the most expensive option. The replacement is simple, so labor cost isn't a major factor if the part fails prematurely. Here's an honest look at the available brands.
- Tier 1: ACDelco: As General Motors' own parts division, ACDelco is the Original Equipment (OE) supplier. Choosing ACDelco guarantees a perfect fit and the same quality as the part your Astro came with from the factory. While it's the most expensive aftermarket option, it provides the most peace of mind.
- Tier 2: Four Seasons: Four Seasons is one of the largest and most well-known aftermarket A/C parts manufacturers. For a simple sensor like this, their products are generally considered a reliable and cost-effective alternative to OE. While some users on forums report fitment issues with more complex Four Seasons parts, the cycling switch is a safe bet for a budget-conscious repair.
- Tier 3: Global Parts (GPD) & Other Budget Brands: Brands like GPD, UAC, and other private labels are the most affordable. They are a viable option if the lowest price is your top priority. However, there are some forum reports of lower long-term reliability on parts like compressors from these brands. Given the low cost difference, stepping up to Four Seasons is often a worthwhile investment.
Cost of Replacing the A/C Clutch Cycle Switch
| Part Type | Part Cost | Estimated Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket (DIY) | $17.16 - $58.18 | $0 | $17.16 - $58.18 |
| New Aftermarket (Shop) | $17.16 - $58.18 | $50 - $100 | $67.16 - $158.18 |
Pro Tip: Replacing this switch is a very easy DIY job that takes less than 30 minutes and requires only a basic wrench. The system has a Schrader valve, like a tire valve, under the switch, so you won't lose your refrigerant when you unscrew it. This can save you around $100 in shop labor.
Frequently Asked Questions
Where is the A/C clutch cycle switch located on my Astro van?
The switch is located in the engine compartment on the passenger side. You will find it screwed into the A/C accumulator, which is a silver or black metal can connected to the A/C lines near the firewall.
Can I replace this switch myself?
Yes, this is a great DIY repair for beginners. You simply unplug the electrical connector, use a wrench to unscrew the old switch, and screw the new one on. The system is designed so that refrigerant will not leak out when you change it.
What happens if I don't replace a bad switch?
Your air conditioning will not work correctly, if at all. While it won't stop you from driving the vehicle, you will not have A/C. In some cases, a faulty switch can cause the compressor to cycle rapidly, which could lead to premature wear on the A/C compressor clutch over a long period.
Are there any recalls for the A/C switch on the 1995-2005 Astro?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from GM or the NHTSA for a widespread failure of the A/C clutch cycle switch on this generation of Chevrolet Astro.

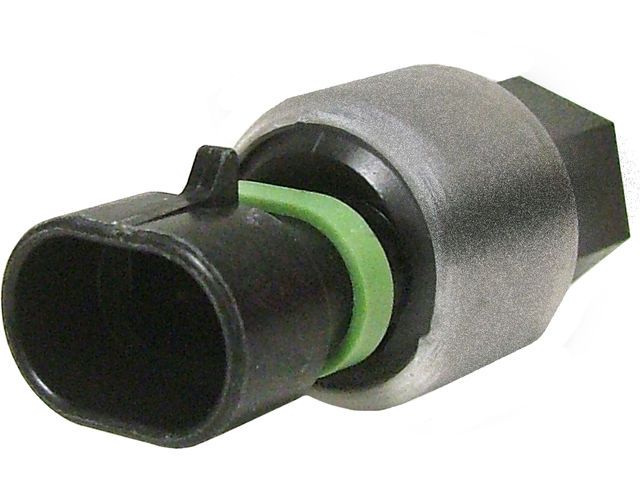

Technical Specifications
OEM Part Numbers: 15-5615 15-5705
Mounts on A/C Accumulator. Features a 2-pin (blade) electrical connector.
