Chrysler Sebring Idle Air Control Valve Guide (1995-2006)
Fix your Sebring's rough idle or stalling issues by choosing the right Idle Air Control Valve.
- A bad IAC valve causes stalling, rough idle, and Check Engine Light code P0505.
- Always check for vacuum leaks first, as they can mimic the symptoms of a failing IAC valve.
- You MUST verify your engine size (2.4L, 2.7L, etc.) and part specifications before buying, as they are not interchangeable.
- Standard Ignition is a premium aftermarket choice, while Crown and Holstein are more budget-conscious options.
Is Your Sebring Stalling or Idling Rough?
A bad Idle Air Control (IAC) valve is a common problem on the 1995-2006 Chrysler Sebring that can cause a range of frustrating issues. Because the IAC's job is to keep the engine's RPMs stable at idle, you'll notice problems most when the car is stopped or moving at very low speeds. The most frequent signs of a failing IAC valve are an engine idle that is unusually high, low, or bounces up and down. You may also experience engine stalling when you come to a stop, or when you turn on the A/C. In some cases, it can make the car difficult to start, especially when the engine is cold. These symptoms are often accompanied by an illuminated Check Engine Light.
🎬 Watch: See these 4 common symptoms of a bad IAC valve.Pro Tip: Check for Vacuum Leaks First
Before replacing the IAC valve, inspect all vacuum hoses connected to the intake manifold. A cracked or disconnected hose can cause a vacuum leak, which creates symptoms identical to a bad IAC valve, including a high idle and a P0505 trouble code. 🎬 See how to fix a P0505 code on the 2.7L engine. A simple visual inspection or listening for a hissing sound can save you from replacing a part you don't need.
Choosing the Right Aftermarket IAC Valve
When shopping for a new aftermarket IAC valve for your Sebring, you'll find a few brands with different reputations for quality and price. Since OEM Mopar parts can be expensive or hard to find, a quality aftermarket part is often the best choice.
- Standard Ignition (SMP): Widely considered a top-tier aftermarket brand, Standard Ignition parts are known for their reliability and performance, often meeting or exceeding OEM quality. They are typically the most expensive aftermarket option but are a trusted choice for a long-term fix.
- Holstein: Holstein specializes in engine management sensors and promotes its parts as high-quality, OE-spec replacements with a good warranty. They represent a solid mid-range option for owners looking for a balance of price and quality.
- Crown Automotive: Known primarily for Jeep parts, Crown also offers components for Chrysler vehicles. User reviews are mixed; some find their parts to be a good budget-friendly alternative, while others have reported issues with fit and quality. Crown is best considered a budget-friendly option.
Warning: Verify Your Engine and Part Before Ordering!
The 1995-2006 Sebring was available with several different engines (e.g., 2.0L, 2.4L, 2.5L, 2.7L). The IAC valve is specific to the engine. Furthermore, some models use a part with a different electrical connector blade count. Always confirm your Sebring's engine size and, if possible, check the blade count on your existing IAC valve's connector to ensure you order the correct replacement.
Cost of Replacing a Chrysler Sebring IAC Valve
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket IAC Valve | $40 - $328 |
| Shop Labor | $95 - $150 |
| Total Estimated Cost (DIY) | $40 - $328 |
| Total Estimated Cost (Installed) | $135 - $478 |
Frequently Asked Questions
Can I just clean my old IAC valve?
Sometimes, cleaning the carbon buildup from the IAC valve's plunger and the port in the throttle body can restore its function. However, this is often a temporary fix. If the valve's internal motor is worn out or failing electrically, cleaning will not solve the problem and replacement is necessary.
Where is the IAC valve located on my Sebring?
The IAC valve is located on or near the throttle body. On the popular 2.7L V6 engine, it is found on the driver's side of the engine, behind the main air intake hose, and is attached with two small bolts.

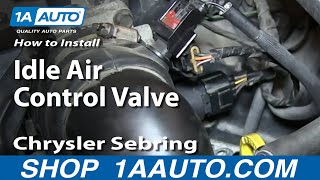

🎬 Watch this step-by-step guide to replacing the valve yourself.Do I need to do anything after installing a new IAC valve?
Yes, after replacement, the engine's computer may need to perform an "idle relearn" procedure to adapt to the new valve. This can sometimes be as simple as letting the engine idle for several minutes, or it may involve a specific sequence of steps. Some owners report the car idling strangely for a short period before returning to normal.
Are there any recalls for the Sebring IAC valve?
No, there are no specific recalls issued by the NHTSA for the Idle Air Control Valve on any 1995-2006 Chrysler Sebring models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4861325AB 4593849AA 4861325AD 4861325AC 4861325AA
Varies by engine. Check for 2-blade vs. 6-blade connector type.
