Volkswagen Golf Engine Camshaft Position Sensor Guide (1995-2007)
If your Golf is stalling, running rough, or won't start, a bad camshaft position sensor could be the culprit.
- A bad camshaft sensor will cause stalling, no-starts, and a check engine light with codes like P0340 or P0341.
- For this part, it is highly recommended to use an OEM-supplier brand like Bosch or Delphi to avoid premature failure.
- The location and difficulty of replacement vary greatly by engine; some are easy (one bolt), while others require timing belt removal.
- Driving with a failing sensor is risky as the engine can stall at any time.
Is Your Golf's Camshaft Position Sensor Failing?
A failing camshaft position sensor (often called a CMP sensor) can cause problems that range from annoying to serious. Because it's a critical electronic part, symptoms often appear suddenly and can sometimes be intermittent, making them tricky to diagnose. Heat from the engine can cause a sensor to fail only when the car is fully warmed up, and then work again when it cools down.
Key Failure Symptoms
Look out for these common signs of a bad camshaft position sensor in your 1995-2007 Golf:
- Check Engine Light: This is the most common sign. You will likely get a diagnostic trouble code such as P0340, P0341, or P0342.
- Engine Won't Start: The engine will crank but may refuse to start because the ECU isn't getting the signal it needs to fire the spark plugs and injectors.
- Stalling: The engine may stall unexpectedly while you are driving or idling at a stoplight. This is a serious safety concern.
- Rough Running and Misfires: Your Golf may idle poorly, shake, or feel like it's stumbling or hesitating when you accelerate.
- Loss of Power: The car may feel sluggish and weak, especially when trying to accelerate or go up hills.
Choosing the Right Aftermarket Sensor
When it comes to electronic sensors for a Volkswagen, quality matters. A cheap, poorly made sensor can fail quickly or even be dead on arrival, forcing you to do the job twice. It is often recommended to use either a genuine VW part or one from a brand that supplies parts directly to Volkswagen (an OEM supplier).
Aftermarket Brand Tiers for Your Golf
- Tier 1 - OEM Suppliers: Brands like Bosch and Delphi are excellent choices. They manufacture parts to the same standards as the original factory sensor, ensuring proper fit and long-term reliability. Hella is another reputable German brand often associated with VW parts.
- Tier 2 - Quality Aftermarket: Brands such as Standard Ignition (SMP), Walker Products, and Holstein offer a good balance of quality and price. They are established names in the aftermarket and generally produce reliable sensors with good warranties.
- Tier 3 - Budget Options: Brands like URO Parts or other lower-cost options can be a gamble. While the price is tempting, forum discussions among VW owners often warn that critical sensors from these brands may not last. For a part this important, saving a few dollars now could lead to more headaches later.
Cost of Replacing the Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $21 - $136 |
| New OEM (Dealer) Sensor | $90 - $200 |
| Shop Labor | $100 - $225 |
Frequently Asked Questions
Can I drive my Golf with a bad camshaft position sensor?
You can, but it is not recommended. The engine could stall at any time, creating a dangerous situation in traffic. It's best to get the car repaired as soon as possible.
Where is the camshaft position sensor located on my Golf?
The location varies by engine. On many 2.0L and Mk5 GTI engines, it is easily accessible on the cylinder head. However, on some engines, it is located behind the camshaft pulley, which requires removing the timing belt and is a much more difficult job. A repair manual for your specific engine is highly recommended.
Is this a difficult DIY job?
If the sensor is easily accessible, it is a simple DIY job for most people. It is often held in by a single T30 Torx bolt. If it is located behind the timing cover, the job is much more complex and may be best left to a professional mechanic.
Will a new sensor fix a P0341 code?
Often, yes. However, a P0341 code (Camshaft Position Sensor Circuit Range/Performance) can also be caused by other issues, such as damaged wiring, a stretched timing chain, or low oil pressure. If a new sensor doesn't solve the problem, these other areas should be investigated.
Technical Specifications
OEM Part Numbers: 06A905161B 078905161C 07K907601A 045957147B

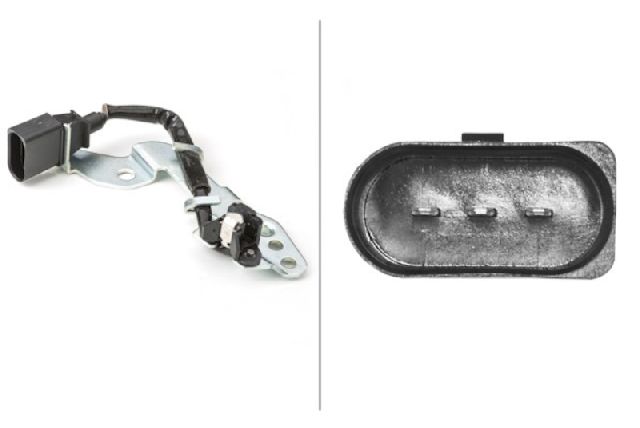

Typically a three-pin Hall-effect sensor. The specific design and mounting style vary significantly depending on the engine type (e.g., 2.0L, 1.8T, VR6, TDI).
