Ford Ranger Wiper Motor Guide: Diagnosing and Replacing (1995-2011)
If your Ranger's wipers only work on high speed or won't park correctly, your wiper motor is the most likely cause.
- The most common failure symptom on a 1995-2011 Ranger is the wipers only working on the high-speed setting, which almost always means the motor needs replacement.
- Before replacing the motor, always check the fuses, relays, and wiring connector first to rule out a simple electrical issue.
- Replacement is a DIY-friendly job that takes about an hour and a half with basic tools, saving you significant labor costs.
- Choosing a NEW aftermarket motor from a brand like Cardone or WAI is a reliable, cost-effective alternative to expensive OEM parts.
Common Symptoms of a Failing Ford Ranger Wiper Motor
A bad wiper motor can be a major safety hazard in bad weather. On the 1995-2011 Ranger, the symptoms are often very specific and point directly to a problem inside the motor itself. Watch for these common signs of failure.
- Wipers Only Work on High Speed: This is the most common failure symptom for this generation of Ford Ranger. The low and intermittent speed settings stop working, but the high-speed setting still functions. This usually points to a problem with the motor's internal speed control circuits or resistor.
- Wipers Won't Park Correctly: When you turn the wipers off, they should return to their resting position at the base of the windshield. A faulty motor might cause them to stop in the middle of the glass or wherever they are in their cycle. This is often caused by a bad park switch inside the motor assembly.
- Slow or Erratic Wiper Movement: The wipers may move much slower than they should, or they might pause and stutter as they move across the windshield. 🎬 Watch this video to diagnose intermittent wiper failure. This can be caused by internal wear or electrical resistance in an aging motor.
- No Movement at All: If the wipers don't move on any setting, the motor may have burned out completely. You might hear a faint humming or grinding sound from the motor when you turn the wipers on, which indicates it's getting power but has failed mechanically.
- Wipers Won't Turn Off: In some cases, a failure in the park switch circuit can cause the wipers to run continuously, even when the switch is in the 'off' position.
Before You Buy: Check These First
While the motor is a common failure point, it's not the only one. Before spending money on a new motor, quickly check these other components, as they can cause similar symptoms:

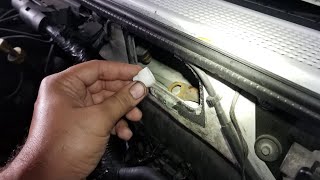

- Wiper Fuses & Relays: Check the fuse box in the engine compartment. A blown fuse or a corroded relay can cut power to the system. You can try swapping a suspicious relay with an identical one from another system 🎬 See how to troubleshoot common wiper electrical issues. (like the horn) to test it.
- Multi-Function Switch: The switch on the steering column (turn signal stalk) can wear out and cause wiper problems, including the 'high-speed only' issue.
- Wiring & Connectors: On an older truck, the wiring harness plug at the motor can become corroded or loose, leading to intermittent operation. Ensure the connection is clean and secure.
Choosing the Right Aftermarket Wiper Motor
For a vehicle like the 1995-2011 Ranger, you don't need to pay dealership prices for an OEM part. Aftermarket wiper motors offer a cost-effective and reliable solution. They are designed to be direct-fit replacements, meaning they will bolt in and plug up just like the original part without any modifications.
Aftermarket Brand Tiers
The main aftermarket brands available for your Ranger are Cardone and WAI Global. Both are positioned as budget-friendly alternatives to the original Ford part.
- Cardone: Cardone is a well-known aftermarket brand that offers both new and remanufactured parts. While their new parts are generally considered a solid value, some users have reported that their remanufactured components can have quality control issues, such as being noisy or failing prematurely.
- WAI Global: WAI Global specializes in automotive electrical components and offers new wiper motors that are designed to meet original specifications. They are a common choice for repair shops due to their wide availability. However, some online discussions suggest that WAI parts can be of inconsistent quality, with some users preferring other brands. There are also some reports of WAI parts being relabeled products from other manufacturers.
Pro Tip: Given the mixed reviews on remanufactured parts, choosing a NEW aftermarket motor from either Cardone or WAI Global is often the safer bet for long-term reliability. The small price difference is usually worth the peace of mind.
Wiper Motor Replacement Cost for 1995-2011 Ford Ranger
The cost to replace your Ranger's wiper motor depends on whether you do it yourself or take it to a shop. The job is straightforward for a DIYer with basic tools.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Cardone, WAI) | $76 - $119 |
| New OEM (Motorcraft) | $120 - $200 |
| Shop Labor | $140 - $205 |
| Total Professional Replacement | $216 - $324 |
Frequently Asked Questions (FAQ)
Why do my Ranger's wipers only work on high speed?
This is the most common failure for this part. It happens when the low-speed resistor or circuit inside the wiper motor assembly fails. The high-speed setting uses a different, direct circuit that bypasses the failed component. Replacing the motor assembly is the standard fix.
Is it hard to replace the wiper motor on a 1995-2011 Ranger?
No, it is considered a relatively easy DIY job. The process involves removing the wiper arms, taking off the plastic cowl cover, unplugging the motor, unbolting it, and disconnecting it from the wiper linkage. It typically takes about an hour with basic hand tools.
🎬 Watch this step-by-step guide to replacing your wiper motor.Do I need to replace the wiper linkage at the same time?
Not usually. You should only replace the wiper linkage (transmission) if the pivot points are seized, bent, or excessively worn, causing the wipers to move erratically or not at all. If the linkage moves freely by hand when disconnected from the motor, it does not need to be replaced.
Will an aftermarket motor last as long as the original?
A quality new aftermarket motor should provide many years of reliable service, similar to the original. The original motors on these trucks often last for over a decade, and a new replacement from a reputable brand is expected to have good longevity. Remanufactured parts can be less predictable in their lifespan.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L5Z-17508-AA F87Z-17508-AB 8L5Z-17508-A
The wiper motor for the 1995-2011 Ford Ranger is a front-mounted unit. The electrical connector type and motor housing changed slightly across the years, so it is important to match the part to your specific model year. For example, motors for 1995-1997 models may have a different plug design than 1998-2011 models. Always verify the fitment before purchasing.
