Engine Coolant Bypass Hose Guide for 1996-2000 Nissan Pathfinder
Learn about this small but critical hose to prevent coolant leaks and overheating in your Pathfinder.
- A failing bypass hose will cause coolant leaks and can lead to critical engine overheating.
- Symptoms include visible leaks, a sweet coolant smell, and a dropping coolant level.
- High-quality aftermarket brands like Gates, Dayco, or Continental are excellent, cost-effective replacements.
- Due to tight access, this repair can be frustrating for DIYers; always replace hose clamps with the hose.
Is Your Pathfinder Leaking Coolant? It Could Be the Bypass Hose
A small coolant leak can quickly turn into a big problem. On the 1996-2000 Nissan Pathfinder, the engine coolant bypass hose is a common part to fail due to age. Made of rubber, this hose becomes hard, brittle, and cracked over time, leading to leaks. Ignoring a leak can result in low coolant levels, engine overheating, and potentially severe engine damage.
Symptoms of a Failing Bypass Hose
- Coolant Puddles: You might see small puddles of green or pink fluid under your vehicle, often towards the center or back of the engine bay.
- Low Coolant Level: The coolant level in your reservoir may drop over time, requiring you to top it off frequently.
- Sweet Smell: You may notice a distinct sweet smell coming from the engine bay, which is the scent of burning coolant.
- Visible Hose Damage: If you inspect the hose, you might see cracks, swelling, or a spongy texture.
- Engine Overheating: In serious cases, a significant leak will cause the engine temperature gauge to rise, leading to overheating.
Warning: Do Not Ignore Overheating
If your Pathfinder's temperature gauge enters the red zone, pull over immediately and turn off the engine. Driving an overheating engine can cause catastrophic damage, including a warped cylinder head or a blown head gasket.
Choosing the Right Aftermarket Bypass Hose
For a vehicle like the 1996-2000 Pathfinder, a high-quality aftermarket hose is a reliable and cost-effective choice. The original OEM hoses have likely become brittle with age, and reputable aftermarket brands manufacture their parts to meet or exceed original specifications using modern materials like EPDM rubber, which resists heat, ozone, and chemical degradation. There is no significant advantage to sourcing an expensive OEM hose from a dealer for this application.

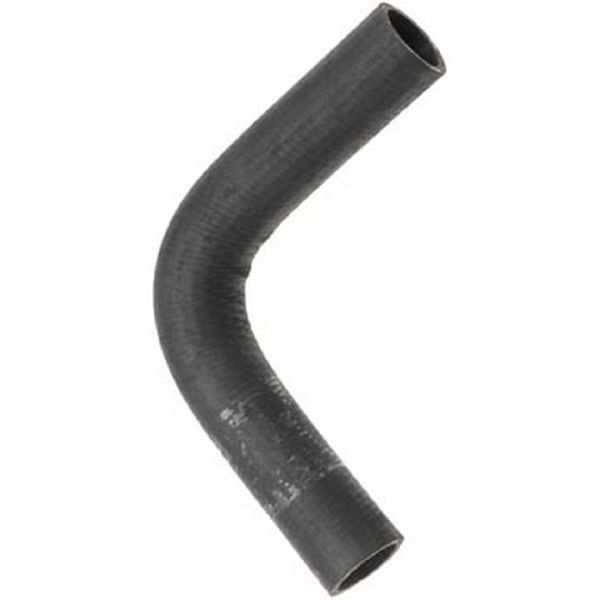

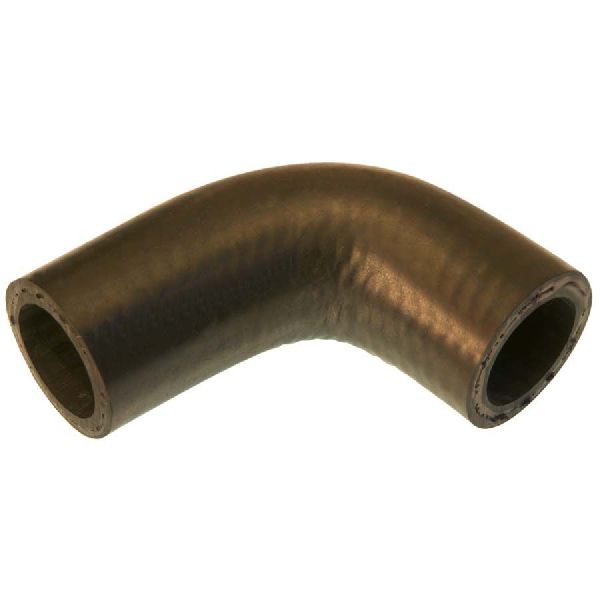

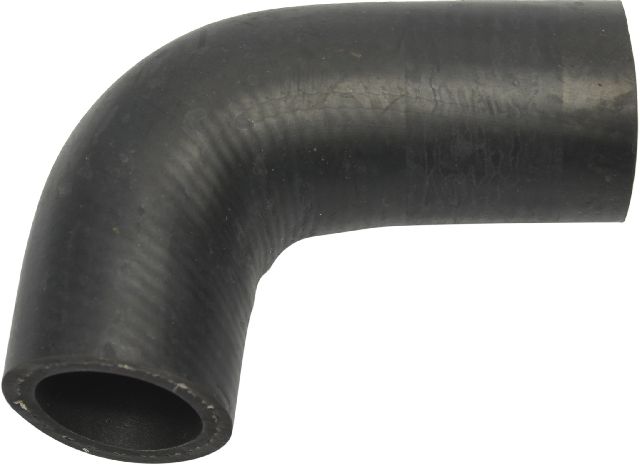

Available Brands: Continental, Dayco, and Gates
Continental, Dayco, and Gates are all well-regarded manufacturers of cooling system components. All three produce molded hoses designed to be a direct fit for your Pathfinder, with the correct bends and diameters. While some mechanics have personal preferences, all three brands offer good quality for this part. The most important factor is ensuring the hose is a "molded" type, which means it is pre-shaped to fit perfectly, preventing kinks that could restrict coolant flow.
Pro Tip: Replace Your Hose Clamps
It is highly recommended to replace the old spring-style hose clamps with new worm-gear style clamps when you replace the hose. Old clamps can lose their tension over time and may not provide a secure seal on the new hose, leading to new leaks.
Replacement Cost
Replacing the engine coolant bypass hose is an affordable repair. The main cost is labor, as the hose can be difficult to access.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hose (Continental, Dayco, Gates) | $20 - $23 |
| Shop Labor | $150 - $250 |
| Total Estimated Cost | $170 - $273 |
Frequently Asked Questions (FAQ)
Is this a difficult DIY job?
For an experienced DIY mechanic, this is a manageable job. However, access is very tight. Forum users report that it can be a frustrating job due to the limited space to work and remove the old clamps. If you have large hands or are not comfortable working in tight spaces, it may be best to leave this to a professional.
Where is the engine coolant bypass hose located?
On the 3.3L V6 engine, the bypass hose is a short, curved hose located near the top-rear of the engine, connecting to the water outlet piping near the thermostat housing. You will likely need to remove parts of the air intake to see and access it.
Are there any recalls for this part on my Pathfinder?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Nissan or the NHTSA for the engine coolant bypass hose on the 1996-2000 Pathfinder. There was a significant recall for strut tower corrosion in certain states, but it is unrelated to the cooling system.
Should I replace other hoses at the same time?
Yes. If the bypass hose has failed due to age, it's very likely that your upper and lower radiator hoses, as well as heater hoses, are also nearing the end of their service life. It is a cost-effective and preventative measure to replace all major coolant hoses at the same time to avoid future breakdowns.
Technical Specifications
OEM Part Numbers: 14056-0W002 14056-1W600 14056-1W601
Material: EPDM Rubber, Molded: Yes, Inside Diameter: Approx. 1.08 in / 27mm.
