BMW 328i (1996-2001) Engine Coolant Reservoir & Expansion Tank Guide
The plastic coolant expansion tank is one of the most common failure points on the E36 and E46 BMW 328i.
- First, confirm if your 328i is an E36 (1996-98) or E46 (1999-01) as they use different tanks.
- Do not buy the cheapest tank available; the cooling system is critical. Choose an OEM-equivalent brand like Mahle/Behr for reliability.
- Plan to replace the tank preventatively every 60,000-75,000 miles to avoid being stranded by a sudden failure.
- Always replace the expansion tank cap at the same time and properly bleed the system after installation to prevent overheating.
Is Your 1996-2001 328i an E36 or E46?
Before buying a new coolant reservoir, you must know your car's chassis code. The 1996-2001 328i was built on two different platforms, and they use different parts.
- 1996-1998 BMW 328i: This is the E36 generation. It uses a rectangular tank that mounts on the side of the radiator with hose clamps.
- 1999-2001 BMW 328i: This is the E46 generation. It uses a tank that clips directly onto the radiator with O-ring connections.
Visually check your engine bay to confirm which style you have. Ordering the wrong part is a common mistake.
Symptoms of a Failing Coolant Reservoir
The plastic used in BMW expansion tanks becomes brittle over time due to constant pressure and heat cycles. Failure is a matter of when, not if. Look for these warning signs:
- Low Coolant Warning: A frequent "CHECK COOLANT LEVEL" message on your dashboard is the most common symptom.
- Visible Cracks: Hairline cracks may appear on the tank, especially around the seams or hose connections.
- Coolant Residue: Look for white, crusty stains or fresh blue/green coolant on the tank or underneath it.
- Steam from Engine Bay: If you see steam, pull over immediately. The tank may have developed a leak or split at the seam.
- Engine Overheating: If the temperature gauge enters the red, it's a critical sign of a major leak, possibly from a burst tank.
- Broken Level Indicator: The red float stick inside the filler neck can break, making it impossible to check the level accurately.
Preventative Replacement is Key
Most BMW mechanics and enthusiasts recommend replacing the expansion tank as a preventative measure every 60,000 to 75,000 miles, even if it's not leaking yet. A sudden failure can leave you stranded and risk catastrophic engine damage.
Choosing the Right Aftermarket Reservoir
The cooling system on your 328i is not the place to cut corners. While saving money is tempting, a cheap, low-quality tank is a major gamble. Here’s a breakdown of available aftermarket brands based on owner experiences.
Tier 1: OEM-Equivalent Brands
These brands are known to be the original equipment suppliers to BMW. Quality and fit are identical to the part you'd get from a BMW dealer, but without the dealer price tag.
- Mahle (or Mahle/Behr): Widely considered the original manufacturer for BMW cooling system parts. This is the safest and most recommended aftermarket choice for a plastic tank.
- Nissens: A well-respected brand for cooling components with a reputation for quality.
Tier 2: Quality Aftermarket Brands
These brands are a good compromise between price and quality and are generally trusted by the BMW community.
- CRP (Rein): Generally a solid choice, and many owners use them without issue. However, some users have noted inconsistent quality or sticky level floats on newer production runs.
Tier 3: Budget & Standard Aftermarket Brands
These brands offer significant savings but come with higher risks. Use with caution.

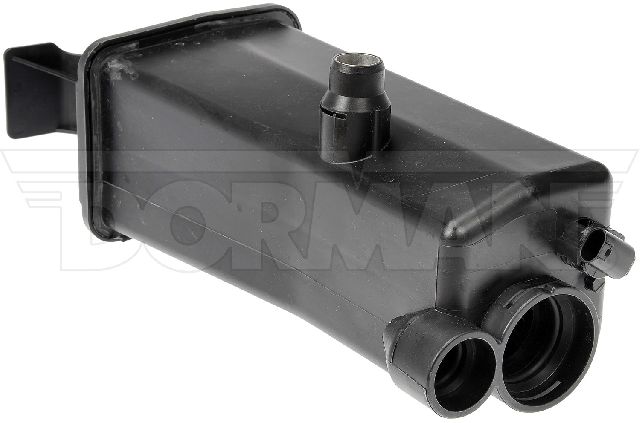

- Dorman: A widely available option that often comes with a lifetime warranty from retailers, which is a major benefit. Quality is generally considered acceptable for a standard replacement, but may not have the longevity of OEM.

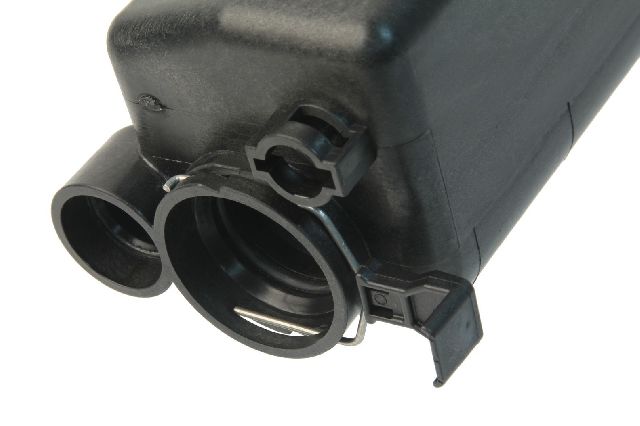

- URO Parts: Generally not recommended for pressurized cooling system parts. Forum users have reported very early failures, sometimes in less than a few hundred miles. Avoid this brand for this specific part.
- Vaico, Skyward, Global Parts: These fall into the budget category. Given the critical nature of the expansion tank, it's wiser to invest in a higher-tier brand.
Always Replace These Parts Together
When replacing your expansion tank, it is highly recommended to also replace the expansion tank cap and the coolant level sensor. The cap holds pressure and can fail, while the sensor can become faulty. Also, inspect all connected coolant hoses for swelling or cracking and replace them as needed.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $110 - $160 |
| New Aftermarket (OEM-Equivalent) | $70 - $120 |
| New Aftermarket (Standard) | $38 - $70 |
Frequently Asked Questions (FAQ)
Is there a recall on the 1996-2001 328i coolant reservoir?
No, there are no specific recalls from BMW or NHTSA for the coolant expansion tank on the E36 or E46 328i. The part is considered a standard wear-and-tear item that requires periodic replacement.
Why do these tanks fail so often?
The tanks are made of plastic and are constantly exposed to high pressure and extreme temperature changes. Over time, the plastic becomes brittle and weak, especially at the seams where the two halves of the tank are joined. This eventually leads to cracks or complete separation.
Can I install a stronger aluminum expansion tank?
Aluminum tanks are available but are not always recommended. The stock plastic tank is designed to be the "weak link" in the system. If pressure becomes too high, the tank fails first, which is a relatively cheap and easy fix. Installing a metal tank may cause that excess pressure to blow out a more expensive part, like the radiator or a heater core.
Do I need to bleed the cooling system after replacement?
Yes, absolutely. Trapped air in the cooling system will cause overheating. You must follow the specific BMW bleeding procedure, which involves turning the ignition on (without starting the engine), setting the heat to high, and slowly adding coolant until all air bubbles are purged from the bleeder screw.
Technical Specifications
OEM Part Numbers: 17111723520 (for 1996-1998 E36 328i) 17117573781 (for 1999-2001 E46 328i)
Material: Plastic. Includes integrated coolant level float. Cap and level sensor are typically sold separately.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
