A Guide to Replacing Spark Plugs on Your 1996-2001 INFINITI I30
Keep your I30's V6 engine running smoothly with the right set of spark plugs and proper installation.
- Stick with OEM-equivalent brands like NGK or Denso for the best performance and longevity.
- Use platinum or iridium plugs as specified for this engine; avoid basic copper plugs.
- Be aware that replacing the three rear spark plugs is a difficult job that requires removing the intake manifold.
- While replacing plugs, inspect the ignition coils for oil contamination, which signals a leaking valve cover gasket.
Signs of Failing Spark Plugs
When your I30's spark plugs are worn out, your engine's performance will suffer. You might notice one or more of these symptoms:
- Rough Idling: The engine may shake or vibrate more than usual when stopped.
- Reduced Fuel Economy: You'll find yourself filling up the gas tank more often.

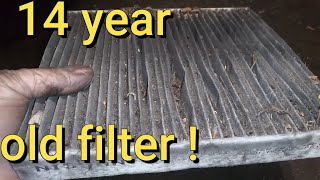

- Engine Misfires: The engine may stumble or hesitate during acceleration. This can trigger the Check Engine Light. 🎬 Watch a detailed case study on diagnosing engine misfires.
- Hard Starting: The engine takes longer to crank and start, especially when cold.
- Poor Acceleration: The car feels sluggish and lacks its usual power.
Choosing the Right Aftermarket Spark Plugs
For the 1996-2001 INFINITI I30, the original equipment (OEM) spark plugs were made by NGK. Aftermarket plugs from NGK and Denso are generally considered the best choice, as they are often identical to the OEM parts. Cheaper copper plugs are available but will not last as long as the recommended platinum or iridium types.
Brand Quality Tiers
| Tier | Brands | Description |
|---|---|---|
| OEM-Equivalent / Best Quality | NGK, Denso | These brands are trusted OEM suppliers for many Japanese vehicles, including Infiniti. Their Iridium and Platinum plugs offer the best performance and longest life, often lasting up to 100,000 miles. |
| Good Quality / Standard | Bosch, Champion | These are reputable brands that offer quality platinum and iridium spark plugs that meet or exceed OEM specifications. They are a solid choice if OEM-equivalent brands are not available. |
| Economy | Autolite | Autolite provides a more budget-friendly option. While functional, they may not offer the same longevity or performance consistency as the higher-tiered brands for this specific engine. |
A Note on Installation: The Rear Plugs Are Difficult

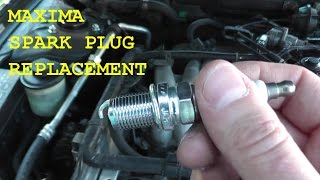

Replacing the spark plugs on the I30's V6 engine is a tale of two halves. The three front plugs (cylinders 2, 4, 6) are easy to access. 🎬 Watch: How to replace spark plugs using basic hand tools. However, the three rear plugs (cylinders 1, 3, 5, near the firewall) are much more difficult. Accessing them requires removing the upper intake manifold. 🎬 See this walkthrough for removing the upper intake manifold. This turns a simple job into a more complex and time-consuming one. If you are not a confident DIY mechanic, you may want to leave this job to a professional.
Frequently Asked Questions
What is the correct spark plug gap for my I30?
The recommended spark plug gap for the 1996-2001 I30 is 0.044 inches (1.1mm). However, most modern Iridium and Platinum spark plugs come pre-gapped from the factory and should not be adjusted. Adjusting them can damage the fine electrode tip.
How often should I replace the spark plugs?
With high-quality platinum or iridium plugs, a replacement interval of 60,000 to 100,000 miles is typical. If you use basic copper plugs, you will need to change them much more frequently, around every 30,000 miles.
Should I replace my ignition coils at the same time?
It is not required, but it is a good idea to inspect them. A common issue on these engines is for the valve cover gaskets to leak oil into the spark plug tubes, which can damage the ignition coils. If you see oil on the old spark plugs or coil boots when you remove them, you should replace the valve cover gaskets and the oil-fouled coils.
Can I use cheaper copper spark plugs?
While copper plugs will work, they are not recommended for the I30. The VQ30DE engine was designed for long-life platinum plugs. Using copper plugs will result in a much shorter service life and potentially reduced performance and fuel economy compared to platinum or iridium plugs.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22401-1P115 22401-97E15 22401-27N65 22401-1P1S5VW 22401-97E65
Required Plug Type: Platinum or Iridium Spark Plug Gap: 1.1mm or 0.044 inches (most are pre-gapped) Engine: 3.0L V6 (VQ30DE)
