Replacing the A/C Compressor on Your 1996-2002 Chevrolet Express 2500
If your Express van's A/C is blowing hot air, this guide will help you choose the right replacement compressor.
- Always replace the accumulator and orifice tube when installing a new compressor to prevent premature failure and to validate the warranty.
- These vans are known for compressor "belly leaks"; inspect the bottom of the old unit for signs of oil seepage.
- Choose a new compressor from a quality brand like Delphi, ACDelco, or Four Seasons over a remanufactured unit for better reliability.
- This is not a simple DIY job; it requires specialized A/C tools and knowledge of handling refrigerants.
Is Your A/C Compressor Failing? Common Symptoms
A bad A/C compressor on your 1996-2002 Express van will give you clear signs. Look out for these common symptoms before you're stuck in the heat.
- Warm Air from Vents: The most obvious sign. If the compressor can't pressurize the refrigerant, the system can't produce cold air.
- Loud Noises: A grinding or squealing noise when you turn the A/C on points to failing internal bearings or other mechanical parts. A bad clutch can also cause noise.
- Visible Refrigerant Leaks: The compressor used on these vans, a Harrison HT-6 style, is known for leaking oil and refrigerant from its body seals. Look for a coating of oily dirt on the bottom of the compressor, a condition often called a "belly leak."
- Compressor Clutch Not Engaging: If you turn on the A/C and the center part of the compressor pulley doesn't spin, the clutch has failed or the system has lost its refrigerant charge. The system has a low-pressure switch that prevents the clutch from engaging if there isn't enough refrigerant, protecting the compressor from damage.
Choosing the Right Aftermarket A/C Compressor
When you're shopping for a new aftermarket compressor, you'll find several brands. They generally fall into different quality tiers. For this specific van, choosing a NEW compressor is highly recommended over a remanufactured one due to higher reliability.
Tier 1: OEM-Quality Aftermarket
These brands were often the original equipment manufacturers (OEM) for General Motors. They offer the best fit and performance, closely matching the part that came on your van from the factory.
- Delphi: Delphi was a major OEM supplier to GM for A/C components. Choosing a new Delphi compressor is often like buying the original factory part. Owners report good long-term reliability with Delphi on GM trucks of this era.
- ACDelco (GM Genuine Parts): This is GM's official parts brand. While ACDelco offers different lines, the "GM Genuine" part is the same as what a dealer would install. Be aware that even OEM-style compressors can develop the common "belly leak" if not installed carefully.
Tier 2: Quality Aftermarket Brands
These brands are well-known in the aftermarket and offer a good balance of price and quality. They are a solid choice for most repairs.

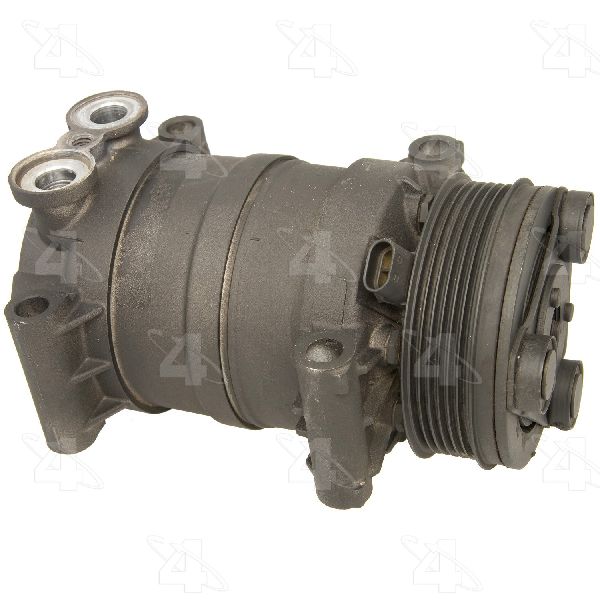

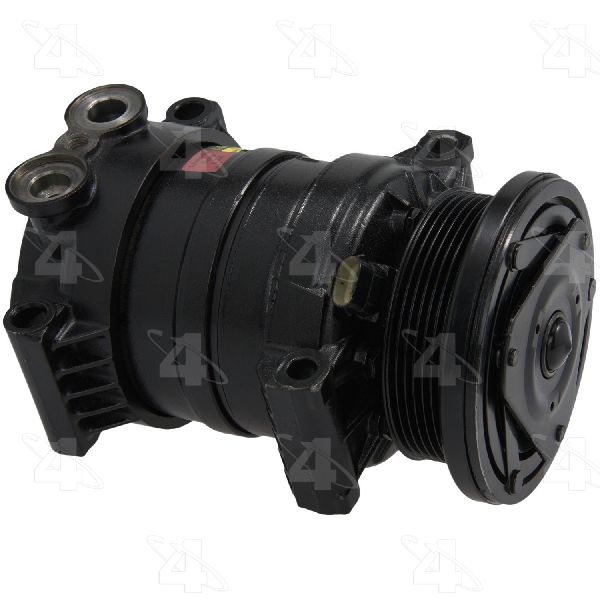

- Four Seasons: A very popular aftermarket brand. For best results, choose a NEW Four Seasons compressor, not a remanufactured one. Forum discussions show that many owners have had success with new Four Seasons units when the rest of the A/C system is properly serviced during installation.
- Valeo: Another respected OEM supplier for many car brands, Valeo also produces quality aftermarket compressors that are a reliable option.
- Global Parts Distributors (GPD): A common aftermarket brand that offers new compressors that meet or exceed OE specifications.
Critical Replacement Steps for A/C Compressor Warranty
Nearly all new A/C compressors require you to replace other parts at the same time to validate the warranty and prevent immediate failure. If you skip these steps, your new compressor will likely fail. You MUST replace:
- The A/C Accumulator (or Receiver/Drier): This part absorbs moisture from the refrigerant. Once the system is opened to the air, it becomes saturated and must be replaced.
- The Orifice Tube: This is a small filter that meters refrigerant flow. It can get clogged with debris from the old, failing compressor.
Additionally, if your old compressor failed internally, the entire system must be flushed with a special solvent to remove metal particles that will destroy the new compressor.
Cost of Replacing Your A/C Compressor
The total cost depends on whether you do the work yourself or hire a professional. This job requires special tools for handling refrigerant.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $231 - $421 |
| New OEM A/C Compressor | $581 - $711 |
| Shop Labor | $201 - $295 |
| Total Professional Replacement | $782 - $1,006 |
Pro Tip: Avoid Remanufactured Compressors
While the lower price is tempting, remanufactured A/C compressors have a reputation for high failure rates. Investing in a new compressor from a reputable brand is a safer bet and will save you from having to do the job twice.
Frequently Asked Questions
Do I have to replace other parts with the compressor?
Yes, it is mandatory. To ensure your new compressor lasts and to keep its warranty, you must replace the A/C accumulator and the orifice tube. If the old compressor failed catastrophically, the condenser and lines should also be flushed or replaced to remove debris.
What is a "belly leak" on these compressors?
The Harrison HT-6 compressor used on these vans has a two-piece case held together with bolts. Over time, or due to improper installation, the seals between the case halves can fail, causing refrigerant and oil to leak out from the bottom of the compressor. This is commonly called a "belly leak."
Can I replace the A/C compressor myself?
This is an advanced DIY repair. It requires specialized tools, including a refrigerant recovery machine, a vacuum pump, and an A/C manifold gauge set. Handling refrigerant without proper training and equipment is dangerous and illegal in many places. For most owners, this job is best left to a professional mechanic.
What kind of oil does the A/C system use?
The A/C system in the 1996-2002 Express 2500 uses PAG 46 oil. New compressors often come pre-filled with oil, but you must always check the instructions to confirm the amount and drain/add oil as needed to match the amount removed from the old compressor. The total system oil capacity is spread between the compressor, accumulator, and evaporator.
Technical Specifications
OEM Part Numbers: 88964862 1134302 1134327 1134343 2724794
Compressor Style: Harrison HT6, Refrigerant Type: R-134a, Oil Type: PAG 46
