Audi A4 Quattro Engine Coolant Reservoir Guide (1996-2007)
Everything you need to know about replacing your B5, B6, or B7 generation coolant expansion tank.
- Failure is common due to cracks from heat and pressure, often causing leaks or faulty low coolant warnings.
- Replacement is an easy DIY job, taking less than an hour with basic tools.
- Always use the correct G12/G13 coolant for your Audi; never mix with other types.
- Consider replacing the reservoir cap at the same time for a complete repair.
Is Your Audi A4 Coolant Reservoir Failing?
The plastic coolant reservoir in your 1996-2007 Audi A4 Quattro lives in a harsh environment. Constant heat and pressure from the engine's cooling system eventually take their toll. Over time, the plastic becomes brittle, leading to cracks and leaks. It's a common failure point on these cars, but thankfully, it's inexpensive and easy to fix.
Key Symptoms of a Bad Coolant Tank
- Low Coolant Warning Light: A common issue is a faulty level sensor built into the bottom of the tank, which can trigger the warning light on your dash even if the coolant level is correct. This happens when coolant seeps into the sensor's connector. 🎬 Watch this guide on troubleshooting the Audi coolant warning light.
- Visible Cracks or Stains: Look for fine hairline cracks, especially along the seams of the tank. You might see a faint trace of pink or purple G12/G13 coolant residue.
- Coolant Smell: You may notice a sweet smell from the engine bay after a drive, which is a sign of leaking coolant.
- Puddles Under Car: Pink or purple fluid under the front, left side of your car is a sure sign of a leak from the cooling system.
- Engine Overheating: A significant leak will cause a loss of coolant, leading to engine overheating. This is a serious condition that can cause major engine damage.
A Note on Vehicle Generations

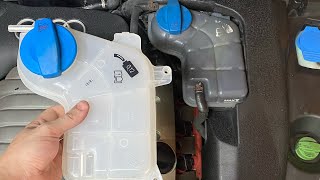

The 1996-2007 range covers three distinct Audi A4 generations: the B5 (1996-2001), B6 (2002-2005), and B7 (2005.5-2008). 🎬 See a step-by-step B6 A4 coolant reservoir replacement walkthrough. While the function is the same, the exact shape and part number of the coolant reservoir can differ. Always verify the part fits your specific year and model before purchasing.
Choosing the Right Aftermarket Reservoir
You don't need to buy a Genuine Audi part to get a quality replacement. Several aftermarket brands offer excellent quality, often from the same manufacturers that supply Audi. Here’s a breakdown of common choices:
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM Supplier Quality | Mahle (Behr), Febi | Mahle Behr is a well-regarded OEM supplier for German auto parts, known for meeting or exceeding original specifications. Febi is another trusted German brand. These are excellent choices for a durable, long-lasting repair. |
| Quality Aftermarket | CRP (Rein) | Rein Automotive (a CRP brand) produces parts designed to match OEM performance. They use high-quality virgin plastic to prevent cracking from heat cycles, making them a reliable alternative. |
| Standard Aftermarket | Dorman, URO Parts, Vaico | These brands offer a budget-friendly solution. Dorman is a widely available option. However, some owners have reported issues with aftermarket tanks leaking at the coolant level sensor connection, so careful installation is key. |
Pro Tip: Replace the Cap, Too
The reservoir cap holds pressure in the system. A faulty cap can cause leaks or prevent the system from pressurizing correctly. Since it's an inexpensive part, it's smart to replace the cap whenever you replace the reservoir.
Frequently Asked Questions
Is it hard to replace the coolant reservoir myself?
No, this is a great DIY job for beginners. It typically takes less than an hour with basic tools like a screwdriver and pliers. The tank is located on the left side of the engine bay and is held in by one or two screws and some clips. You'll need to disconnect two or three hoses and an electrical connector for the level sensor on the bottom.
🎬 Follow this video to replace your reservoir in under an hour.What kind of coolant should I use?
Your Audi requires a specific type of coolant, usually G12 (pink) or G13 (purple). Do not use generic green or orange antifreeze. Mixing coolant types can cause damage to your cooling system. Always top off with the correct type or flush the system completely if changing types.
Are there any recalls for the coolant reservoir?
There are no specific recalls for the coolant reservoir itself on the 1996-2007 A4. There were recalls for electric coolant pumps on later model A4s (2013-2016), but this does not affect the reservoir on the B5, B6, or B7 generations.
My new tank is leaking from the bottom sensor. What should I do?
This can sometimes happen with aftermarket tanks. First, ensure the electrical connector is fully seated and locked in place. The O-ring on the sensor needs to create a perfect seal. If it still leaks, the tank may be defective and should be exchanged for a new one.
Helpful Videos
Technical Specifications

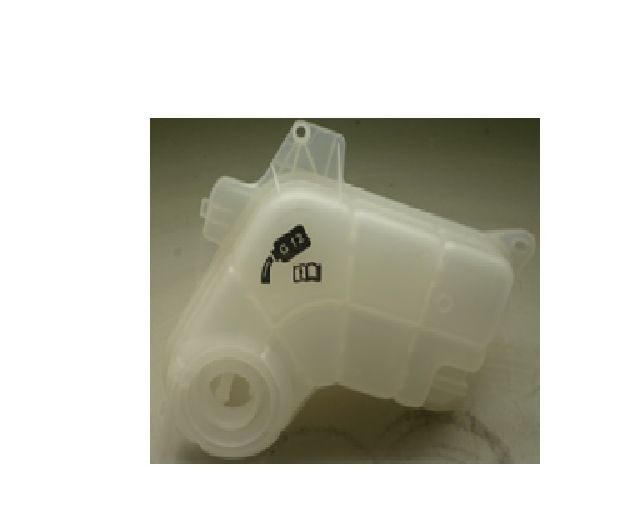

OEM Part Numbers: 8D0121403L 8D0121403F 8D0121403J 8E0121403
Material: Plastic. Includes: Coolant Level Sensor. Cap not always included.
