Guide to the Automatic Transmission Oil Cooler for the 1996-2007 Dodge Caravan
Keep your Caravan's transmission running cool and prevent costly repairs by choosing the right oil cooler.
- Heat is the #1 enemy of your Caravan's transmission; a functional cooler is not optional.
- An external fluid leak is the most common failure sign; check for red or brown drips under the front of the van.
- Upgrading to a heavy-duty aftermarket cooler from a brand like Derale or Hayden is a wise investment, especially if you tow.
- If your coolant looks like a pink milkshake, stop driving immediately. Your cooler has failed internally, and your transmission is at risk of catastrophic damage.
Is Your Caravan's Transmission at Risk?
The automatic transmissions in the 1996-2007 Dodge Caravan are known to be sensitive to heat. The transmission oil cooler is your main line of defense against overheating, which can lead to expensive transmission damage. Whether your cooler has sprung a leak or you're looking to upgrade for better performance, this guide will help you understand your options.
Symptoms of a Failing Transmission Cooler

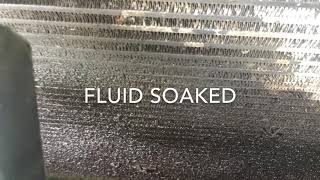

A bad transmission cooler can cause serious problems. It's important to recognize the signs early. 🎬 Watch this video to identify early signs of cooler failure. Failures typically happen in two ways: an external fluid leak or a much more serious internal leak.
- External Fluid Leaks: This is the most common issue. You may notice reddish or dark brown fluid spots on your driveway, usually under the front of the van. The cooler lines themselves may look wet, oily, and covered in grime, especially where the rubber hoses are crimped to the metal ends.
- Transmission Overheating: If the cooler is clogged or has lost too much fluid from a leak, the transmission will run hot. This can trigger a dashboard warning light, cause a burning smell, and lead to poor performance.
- Poor Shifting Performance: When the fluid is low or overheated, you might feel the transmission slipping, shuddering, or shifting harshly between gears. You may also hear new whining or grinding sounds.
- Internal Leaks (Coolant Contamination): On models where the cooler is part of the radiator, a failure can allow engine coolant and transmission fluid to mix. The most obvious sign is a pink, milky substance that looks like a strawberry milkshake in your coolant overflow tank. This is a critical failure that can quickly destroy your transmission.
Choosing the Right Aftermarket Cooler
When replacing your transmission cooler, you have a few options. You can replace the factory unit or, as many owners do, install a more robust, standalone aftermarket cooler. This is a popular upgrade, especially for owners who tow or live in hot climates.
Brand Tiers for Aftermarket Coolers
Not all brands are created equal. Here’s a breakdown of the common choices for your Caravan:
- Heavy-Duty / Upgrade Brands (Derale, Hayden): These brands are well-regarded for performance and durability. They specialize in standalone coolers that can be installed to either supplement or completely bypass the factory cooler. Derale offers various designs, including efficient stacked-plate coolers and models with electric fans for maximum cooling. Hayden is another popular and trusted choice for reliable aftermarket coolers. An upgrade to one of these brands is a smart investment to prolong transmission life. 🎬 Compare the top-rated aftermarket transmission coolers for your vehicle.
- Standard Replacement Brands (Dorman, Four Seasons, Global Parts): Dorman is a widely available brand that primarily offers direct-fit replacement cooler lines and some cooler assemblies. They are a common choice for replacing leaking factory lines. Four Seasons and Global Parts are also standard aftermarket brands you will find available. These brands are generally suitable for a stock replacement if you are not looking for a performance upgrade.
Estimated Replacement Costs
| New OEM Cooler Assembly | $285 - $325+ |
| New Aftermarket Cooler | $51.93 - $225.95 |
| New Aftermarket Cooler Lines | $90 - $105 |
| Shop Labor (Cooler Assembly) | $256 - $376 |
| Shop Labor (Cooler Lines Only) | $145 - $224 |
Note: Costs are estimates and can vary based on your location and specific vehicle configuration. If your cooler is integrated into the radiator, a failure may require replacing the entire radiator, which is a more expensive repair.
Frequently Asked Questions
Do I need a heavy-duty cooler for my Caravan?
If you frequently tow, carry heavy loads, or live in a hot climate, upgrading to a heavy-duty aftermarket cooler from a brand like Derale or Hayden is highly recommended. It provides extra protection against overheating and can significantly extend the life of your transmission.
Is an aftermarket cooler better than the OEM part?
For this specific vehicle, a quality aftermarket auxiliary cooler is often considered an upgrade over the factory design. It provides dedicated cooling, which can be more effective than the standard cooler integrated into the radiator, and it eliminates the risk of a catastrophic internal leak mixing coolant and transmission fluid.
Were there any recalls on the transmission cooler?
No, there have been no specific safety recalls issued by the NHTSA for the automatic transmission oil cooler or its lines for the 1996-2007 Dodge Caravan. Recalls that exist for Dodge Caravans around this time period relate to other transmission components, like the oil pump on much later models.
Can I replace a transmission cooler myself?
For a skilled DIYer, this is a manageable job. Replacing the lines or installing an auxiliary cooler typically takes a few hours. However, access can be tight, and the cooler line fittings use special clips that can be tricky to remove without the right tool. It's important to ensure there are no leaks after installation.
🎬 Follow this step-by-step guide to install your new transmission cooler.Helpful Videos
Technical Specifications
The factory cooler is typically an integrated design, either within the radiator or A/C condenser. Aftermarket options include tube-and-fin, plate-and-fin, and stacked-plate designs. Common hose inlet sizes are 11/32" or 3/8".
