Toyota RAV4 Starter Motor Guide for 1996-2008 Models
Everything you need to know before replacing the starter motor on your first, second, or third-generation RAV4.
- A single 'click' with no crank is the most common symptom of starter failure on the 1996-2008 RAV4, usually due to worn solenoid contacts.
- Replacement is a feasible DIY project, typically requiring removal of the battery and air intake to access the starter on top of the transmission.
- No major recalls exist for the starter, but it is a known common failure item among owners.
- A new aftermarket starter offers excellent value and reliability compared to more expensive OEM or potentially less reliable remanufactured options.
Is Your RAV4 Starter Failing? Common Symptoms
A failing starter on a 1996-2008 Toyota RAV4 usually gives clear warning signs. Recognizing them early can prevent you from being stranded. The most common issue reported by owners is an intermittent no-start condition, where the car starts fine sometimes and other times it won't.
- Single, Loud Click, But No Start: This is a classic symptom. You turn the key, hear one distinct "click" from the engine bay, but the engine doesn't crank. This often points to worn-out copper contacts inside the starter solenoid, a very common issue on these models.
- No Sound at All: If you turn the key and hear absolutely nothing, it could mean the starter has completely failed or there's an issue in the electrical circuit leading to it, like a bad relay or ignition switch.
- Slow, Labored Cranking: If the engine turns over very slowly, like it's struggling, it can be a sign of a weak starter motor drawing too much power, though you should always check your battery first.
- Grinding or Whirring Noise: A grinding sound during or after starting can indicate that the starter gear is not engaging or disengaging properly with the engine's flywheel, which can cause damage over time.
Known Issues, Recalls, or TSBs
For the 1996-2008 Toyota RAV4, there are no major recalls or widespread Technical Service Bulletins (TSBs) issued by the NHTSA for the starter motor itself. However, owner forums frequently discuss the wear of internal solenoid contacts as a common failure point. This often leads to the classic "click, no start" symptom. Many DIY-inclined owners choose to rebuild the solenoid with new contacts, but replacing the entire starter assembly is a more common and often simpler repair.
Starter Replacement Cost for 1996-2008 Toyota RAV4
| Part Type | Estimated Part Cost | Estimated Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket | $96 - $215 | $183 - $269 | $279 - $484 |
| Remanufactured | $140 - $230 | $183 - $269 | $323 - $499 |
| New OEM | $295 - $342 | $183 - $269 | $478 - $611 |

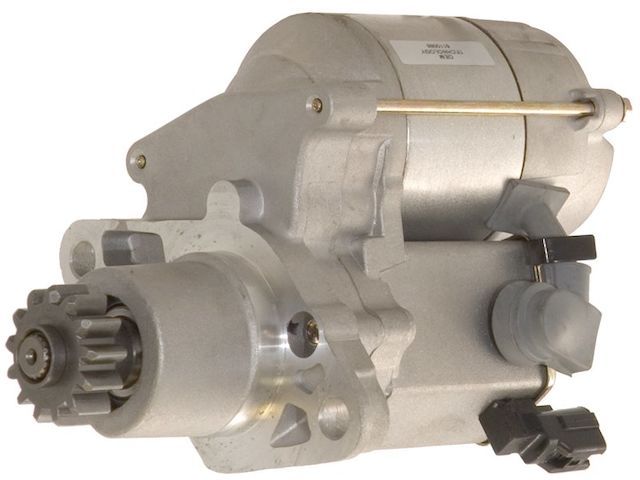

Choosing Your Aftermarket Starter: ACDelco vs. MPA
When replacing your RAV4's starter, you don't have to buy an expensive OEM part from the dealer. Quality aftermarket brands offer a reliable and affordable alternative. Both ACDelco and MPA (Motorcar Parts of America) are established names in the aftermarket industry.
- ACDelco: While traditionally associated with GM vehicles, ACDelco produces parts for many makes and models, including Toyota. They offer different tiers (like Gold and Professional) that provide a good balance of quality and value, often meeting or exceeding original specifications.
- MPA (Motorcar Parts of America): MPA is a major manufacturer and remanufacturer of starters and alternators. Their parts are widely available through major auto parts retailers and are built to meet OEM fit and function standards.
Pro Tip: For this generation of RAV4, a new aftermarket starter from a reputable brand like ACDelco or MPA is often a better value than a remanufactured unit. You get all-new components and avoid potential issues from a poorly rebuilt part, often for a similar price.
Generation & Engine Differences
The replacement process varies slightly across the 1996-2008 range.
- 1996-2005 (4-Cylinder): 🎬 Watch this step-by-step removal guide for 1996-2005 RAV4 models. On first and second-generation models, the starter is typically located on top of the transmission, underneath the air filter box. Access requires removing the battery, battery tray, and air intake assembly.

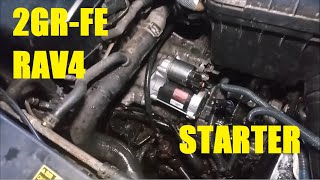

- 2006-2008 (V6 Engine): 🎬 See how to replace the starter on a 3.5L V6 engine. On the 3.5L V6 engine, the starter is in a similar location on top of the transaxle but is more accessible once the battery and battery trays are removed. The airbox may not need to be fully removed.
Frequently Asked Questions (FAQ)
Can I replace the RAV4 starter myself?

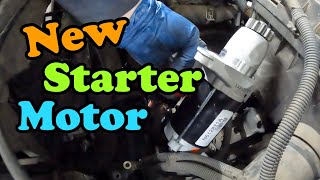

Yes, for many DIY mechanics, this is a manageable job. It requires 🎬 Follow this DIY video to replace your 2006-2008 starter motor. basic hand tools (sockets, wrenches, extensions), and the key is removing components like the battery and its tray to gain access. The job typically takes 1.5 to 2.5 hours. Always disconnect the negative battery terminal before starting any electrical work.
Is a "click but no start" always the starter?
Not always, but it's the most likely cause on these RAV4s. Before replacing the starter, always ensure your battery is fully charged and the terminals are clean and tight. A weak battery can also cause a click. If the battery is good, the starter solenoid is the next logical suspect.
Should I buy a new or remanufactured starter?
For the price, a new high-quality aftermarket starter is generally recommended over a remanufactured one. New units contain 100% new components, providing peace of mind and often a better warranty, sometimes for a lower price than a remanufactured starter from a premium brand.
What's the difference between the starter motor and the solenoid?
The solenoid is a small component, usually attached to the starter motor itself. It acts as a powerful switch that takes the signal from your ignition and allows the high current from the battery to flow to the starter motor. It also pushes the starter gear forward to engage the engine. A faulty solenoid is often the cause of the "single click" problem.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28100-74260 28100-74270 28100-28071 28100-20021
Voltage: 12V, Power Output: 1.2kW to 1.7kW depending on engine and year.
