Pontiac Grand Am Back Up Light Switch Guide (1997-2004)
Fix your reverse lights with this complete guide to the back up light switch for your Grand Am.
- On automatic Grand Ams, this part is also the Neutral Safety Switch.
- Always check bulbs and fuses first before replacing the switch.
- A quality aftermarket switch is a good, cost-effective alternative to OEM.
- This is a manageable DIY job that can save you over $100 in labor costs.
Is Your Grand Am's Back Up Light Switch Failing?
A failing back up light switch is a safety issue and can get you a traffic ticket. The most obvious sign of a problem is when your reverse lights don't turn on. Before you blame the switch, always check for simpler problems first. Make sure the light bulbs aren't burned out and check the 'TURN LPS' or similar fuse in the fuse panel. Sometimes, a bad ground wire in the trunk can also cause lighting problems.
Key Symptoms of a Bad Switch
- Reverse lights do not turn on: This is the most common symptom. You shift into reverse, but the lights stay off.
- Reverse lights stay on: The switch might be stuck in the 'on' position, keeping the lights on even when you're not in reverse.
- Lights flicker when shifting: If you can make the lights flash by wiggling the gear shifter, it often points to a worn-out or poorly adjusted switch.
- Car won't start (Automatics Only): Since the switch is part of the neutral safety switch, a complete failure can prevent the car from starting because it doesn't recognize that it's in Park or Neutral.
Important Note for Automatic Transmissions
On automatic Grand Ams, the back up light switch is integrated into the Neutral Safety Switch. When searching for this part, you will see it listed under both names. They are the same component for this vehicle.
Choosing the Right Aftermarket Switch
When your original switch fails, you have a choice between an OEM part from GM and an aftermarket part. For a simple electronic switch like this, a quality aftermarket part can offer the same performance for less money.
- OEM (GM Genuine Parts / ACDelco): These are the exact parts your car was built with. They guarantee a perfect fit and function but come at a higher price.
- Aftermarket (Facet and others): Brands like Facet produce parts that are designed to be equivalent to OEM quality. Facet is an established Italian company that makes a wide range of automotive electronics. Aftermarket parts are a cost-effective option. When choosing one, look for a good warranty and positive user reviews if available.
Pro Tip: This is a straightforward replacement job. An experienced DIYer can save on labor costs, which could be more than the cost of the part itself. The switch is located on the transmission and is accessible from under the car.
Typical Replacement Costs
The cost for a new back up light switch for your Grand Am can vary. Below are typical price ranges you can expect.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $24.27 |
| New OEM (GM) | $55 - $65 |
| Used OEM | $10 - $25 |
| Shop Labor | $100 - $150 |
Frequently Asked Questions
Where is the back up light switch located on a Grand Am?
For both automatic and manual transmission models, the switch is mounted on the transmission itself. You will need to safely raise the vehicle and look for a small sensor with a wiring connector, usually on the top or side of the transmission housing.
Can I replace the back up light switch myself?
Yes, this is a DIY-friendly repair for most home mechanics. The process involves disconnecting the battery, raising the car safely, unplugging the electrical connector, unscrewing the old switch, and installing the new one. It typically takes about an hour.
Are there any recalls for the Grand Am back up light switch?
No, there are no specific recalls or technical service bulletins (TSBs) from the NHTSA for the back up light switch or neutral safety switch on the 1997-2004 Pontiac Grand Am. There were major recalls for the ignition switch and multifunction switch, but these are different parts.
My reverse lights still don't work after replacing the switch. What now?
If a new switch doesn't solve the problem, you may have an issue elsewhere in the circuit. First, re-check the bulbs and the fuse. Next, inspect the wiring leading to the switch and from the switch to the tail lights for any breaks or corrosion. A bad ground wire in the trunk is another common cause of light failure on these cars.

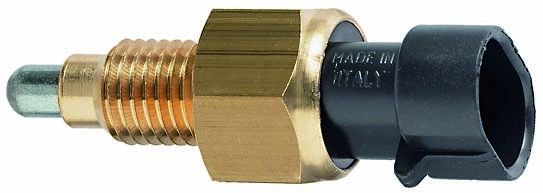

Technical Specifications
OEM Part Numbers: D2257C 24219476
For automatic transmission models, this part is a combined Neutral Safety and Back Up Light Switch. For manual transmission models, it is a dedicated back up light switch.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
