Chevrolet Cavalier Ignition Lock Cylinder Guide (1997-2005)
Is your key stuck, hard to turn, or causing a no-start problem in your Cavalier?
- A failing lock cylinder in a 1997-2005 Cavalier often triggers the Passlock anti-theft system, causing a no-start condition and a flashing 'SECURITY' light.
- Replacement is not plug-and-play; a mandatory 30-minute Passlock relearn procedure is required for the car to start.
- If your key won't turn, the cylinder may need to be drilled out, making the job more complex.
- Aftermarket brands like Dorman and Standard Ignition are reliable and cost-effective alternatives to more expensive OEM parts.
Signs of a Failing Ignition Lock Cylinder
When the ignition lock cylinder in your 1997-2005 Cavalier starts to fail, the symptoms are hard to ignore. You might find the key is difficult to insert or won't turn at all. Sometimes, you may have to jiggle the key to get it to work. In other cases, the key might get stuck in the ignition and you won't be able to remove it. A more serious symptom is a no-start condition where the engine cranks but won't fire up, or a start-and-stall situation, often accompanied by a flashing "SECURITY" or "THEFT" light on your dashboard. This is a classic sign that the Passlock anti-theft sensor in the cylinder housing has failed.
Recall Information: Ignition Switch vs. Lock Cylinder
It's important to understand the difference between the ignition switch and the ignition lock cylinder. The massive GM recalls in the mid-2010s were primarily for the electronic ignition switch, which could shut the engine off while driving. However, some recalls also involved replacing the lock cylinder because a worn cylinder could allow the key to be removed when not in the "Off" position, creating a rollaway risk. While the 1997-2005 Cavalier was part of some earlier ignition-related recalls (like NHTSA Campaign #04V036000 for a fire risk if the key was held in "start" too long), it was not part of the main group of vehicles in the highly publicized ignition switch/lock cylinder recalls that affected cars like the Cobalt and Ion. Always check your specific VIN for any open recalls.
Choosing the Right Aftermarket Part
When replacing your Cavalier's lock cylinder, you'll find options from the original equipment manufacturer (GM/ACDelco) and aftermarket brands like Dorman and Standard Ignition (Standard Motor Products).
- OEM (GM/ACDelco): These parts are identical to what your car was built with. They guarantee a perfect fit and function but are typically the most expensive option.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, SMP parts are known for quality construction, often using materials like brass tumblers and die-cast zinc cores that meet or exceed original specifications. They are a trusted choice for professional mechanics.
- Dorman: Dorman provides a cost-effective solution and is one of the largest aftermarket suppliers. Their products are designed to match the original fit and function and often come as a complete kit with instructions. 🎬 Watch this step-by-step guide to installing a new lock cylinder. While they are a popular choice for DIY repairs due to price and availability, some professional mechanics prefer the long-term reliability of SMP or OEM.
For a daily driver like the Cavalier, both Dorman and Standard Ignition offer reliable replacements that can solve common failure symptoms at a lower cost than the dealer part.
The Passlock Relearn Procedure is Mandatory
Because the lock cylinder is tied to the anti-theft system, you cannot simply swap the part and drive away. Your car's computer must "relearn" the new cylinder's Passlock sensor data. Failure to do this will result in a no-start condition. The procedure is simple but takes about 30 minutes and involves cycling the key multiple times.
🎬 See how to perform the 30-minute Passlock relearn procedure.Estimated Replacement Costs
The cost can vary based on whether you do the job yourself or take it to a shop. The part itself is moderately priced, but labor can add a significant amount.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Ignition Lock Cylinder | $150 - $295 |
| Shop Labor | $134 - $197 |
| Total Professional Replacement | $284 - $492 |
Frequently Asked Questions
Do I need to reprogram my car after replacing the lock cylinder?
Yes, you must perform the Passlock relearn procedure. It typically takes 30 minutes and involves turning the key to the 'ON' position and waiting for the security light to go out, repeating this three times. This allows the Body Control Module (BCM) to recognize the new sensor.
Can I replace just the lock cylinder, or do I need the ignition switch too?
You can usually replace just the lock cylinder if your symptoms are related to the key mechanism or the Passlock sensor. The electronic ignition switch is a separate part located behind the cylinder. If your car has issues like losing power to accessories in certain key positions, the switch might also be at fault.
What if my key is stuck and I can't turn it to the 'RUN' position for removal?
To remove the cylinder, the key must be in the 'RUN' position to depress the release pin. If you cannot turn the key, the cylinder will likely need to be drilled out by a mechanic to remove it. This is a last resort as it is destructive.
🎬 Try this quick fix if your lock cylinder is sticking.Why is the 'SECURITY' light flashing on my dash?
A flashing 'SECURITY' light on a Cavalier almost always points to a problem with the Passlock anti-theft system. The system is not reading the correct signal from the magnet in the ignition lock cylinder, and as a safety measure, it prevents the engine from starting and running.
Helpful Videos
Technical Specifications

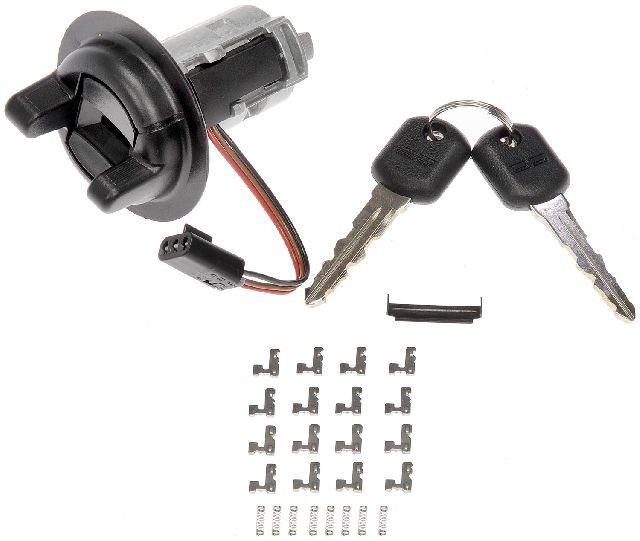

OEM Part Numbers: D1405D D1456C
Includes Passlock sensor housing. Requires 30-minute vehicle relearn procedure upon installation.
