Guide to the 1997-2005 Chevrolet Corvette Engine Intake Manifold Gasket Set
Everything C5 Corvette owners need to know about replacing their LS1 or LS6 intake manifold gaskets.
- Failure symptoms on a C5 Corvette are due to vacuum leaks, not coolant leaks. Look for a rough idle, lean codes (P0171, P0174), and hissing sounds.
- Replacement is a manageable DIY job for many owners, taking 2-4 hours.
- While the intake is off, it is highly recommended to also replace the oil pressure sensor and knock sensors.
- Choose a quality aftermarket brand like Fel-Pro or the OEM ACDelco part for a reliable, long-lasting seal.
Is Your Corvette's Intake Gasket Failing?
The intake manifold gaskets on the C5 Corvette's LS1 and LS6 engines are known to be quite durable, but they can fail over time due to age and heat cycles. When they do, the most common problem is a vacuum leak, which allows extra, unmeasured air into your engine. This can cause a variety of noticeable issues.
Symptoms of a Bad Gasket
- Rough or High Idle: The engine may idle erratically or at a higher RPM than usual because the computer is trying to compensate for the extra air. 🎬 Learn how a gasket leak causes a rough idle.
- Check Engine Light: A vacuum leak often triggers lean condition codes, such as P0171 and P0174, or a random misfire code like P0300.
- Hissing or Whistling Sounds: You might hear a distinct sucking or hissing noise coming from the top of the engine bay, especially during acceleration.
- Reduced Performance and Fuel Economy: The incorrect air-fuel mixture can lead to a noticeable loss of power and an increase in fuel consumption. 🎬 Watch this video to learn more about bad gasket symptoms.
A Note on Leaks
Because the LS1/LS6 engine does not circulate coolant through the intake manifold, symptoms like coolant loss, overheating, or milky oil are not signs of a bad intake manifold gasket on a C5 Corvette. Those symptoms point to other issues, such as a head gasket failure.
Choosing the Right Aftermarket Gasket Set
When it's time for a replacement, you have several good options. The original gaskets are simple, effective O-rings, and many aftermarket brands offer high-quality replacements. Since the job requires removing the intake manifold, it's wise to choose a quality part to avoid doing the work twice.
Brand Quality Tiers
- Premium Aftermarket (OEM Equivalent): Brands like ACDelco (the original equipment manufacturer) and Fel-Pro are highly trusted in the Corvette community. Fel-Pro is often praised for its quality materials and excellent sealing, sometimes considered an upgrade over the original design.
- Quality Aftermarket: Brands such as Victor Reinz and Mahle are also well-regarded OEM suppliers for many European and domestic vehicles and offer reliable gasket sets for the LS1/LS6. They provide a dependable seal for daily driving and performance use.
- Standard/Performance Aftermarket: Companies like Cometic Gasket are known for high-performance applications and offer durable multi-layered steel (MLS) gaskets, though they may be overkill for a stock engine. Other brands like Apex and Weiand also provide functional replacements that meet basic requirements.
Pro Tip: While You're In There
Removing the intake manifold gives you direct access to other parts that are difficult to reach. Many C5 owners use this opportunity to also replace the oil pressure sensor, which is located at the back of the engine block and is a common failure point. It's also a good time to replace the two knock sensors and their wiring harness located in the engine valley, as they can become brittle.
Cost of Replacing Your Corvette's Intake Gasket Set
The cost can be broken down into parts and labor. The gaskets themselves are not expensive, but the labor to access and replace them makes up most of the cost.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $32 - $103 |
| New OEM (ACDelco) Gasket Set | $50 - $90 |
| Shop Labor | $250 - $400 |
| Total Professional Replacement | $300 - $500+ |
Frequently Asked Questions
Can I reuse my old intake manifold gaskets?
While some mechanics and DIYers have successfully reused the LS1/LS6 gaskets if they are in perfect condition, it is not recommended. The gaskets are inexpensive, and replacing them during a repair ensures a proper seal and prevents having to do the job again. Given the age of these vehicles, the original rubber is likely hardened and less effective.
How difficult is it to replace the intake manifold gaskets myself?
For a mechanically inclined owner, this is a very feasible DIY job. The intake manifold on the LS1/LS6 is on top of the engine and relatively easy to access. The process involves removing the air intake, disconnecting fuel lines, sensors, and vacuum hoses, and then unbolting the manifold. The job typically takes 2-4 hours.

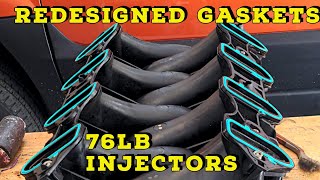

🎬 See how to replace LS intake manifold gaskets yourself.Are there any recalls for the 1997-2005 Corvette intake manifold gasket?
No, there have been no recalls or widespread Technical Service Bulletins (TSBs) issued by GM or the NHTSA for intake manifold gasket failure on the 1997-2005 Corvette. Gasket failure is considered a normal wear-and-tear maintenance item.
Do I need a special type of gasket for a Z06 (LS6) vs. a base model (LS1)?
No, the intake manifold gaskets are the same for both the LS1 and LS6 engines used in the C5 Corvette generation, as they share the same "cathedral port" cylinder head design. Any gasket set listed for a 1997-2005 Corvette will fit both engine types.
Helpful Videos
Technical Specifications

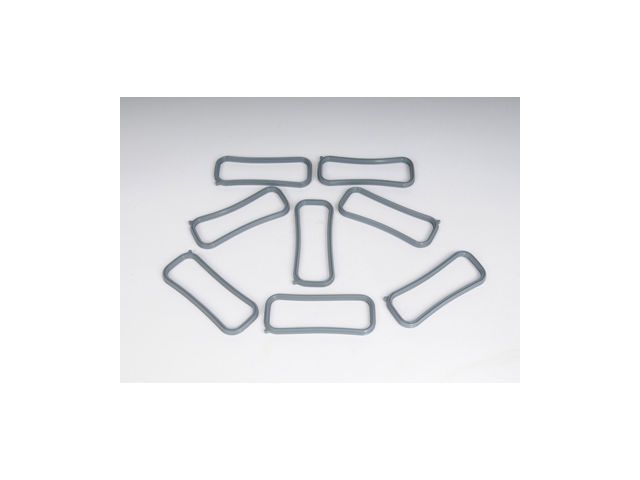

OEM Part Numbers: 12533587
Set of 8 individual O-ring style seals for cathedral port cylinder heads (LS1/LS6).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
