Chevrolet Malibu Engine Camshaft Position Sensor Guide (1997-2005)
Diagnose and choose the right replacement camshaft position sensor for your 1997-2005 Chevrolet Malibu.
- Replacement difficulty varies greatly by engine; the 3.1L V6 is much harder than the 4-cylinder models.
- For critical sensors, spending more for a quality brand like Delphi or Standard Motor Products is recommended over budget options.
- Symptoms like stalling and no-start are common, but check if the major ignition switch recall was performed on your vehicle first.
- The most common trouble codes are P0340 and P0341.
Symptoms of a Failing Camshaft Position Sensor
When the camshaft position sensor in your Malibu starts to fail, the signals it sends to the engine's computer become weak or incorrect. This can cause a range of noticeable problems. You should suspect a bad sensor if you experience one or more of the following issues:
- Check Engine Light: This is often the first sign. The computer will store a trouble code, typically P0340 or P0341, and turn on the light.
- Engine Won't Start: The engine may crank but refuse to start because the computer isn't getting the signal it needs to create spark or time the fuel injectors.
- Stalling Engine: The engine may run for a while and then suddenly shut off, sometimes when it gets hot or while you are driving.
- Rough Idle and Misfires: Your engine may shake, idle unevenly, or you might feel it misfiring because the timing is out of sync.
- Poor Acceleration: The car may feel sluggish and lack power when you press the gas pedal.
- Reduced Fuel Economy: With incorrect timing, the engine burns fuel less efficiently, causing you to fill up more often.
Known Issues for the 1997-2005 Chevrolet Malibu
While no recalls or Technical Service Bulletins (TSBs) specifically target the camshaft position sensor for this generation of Malibu, a major recall is important to be aware of. GM issued a recall for the ignition switch in 1997-2005 Malibus. A faulty ignition switch can cause the engine to stall unexpectedly, a symptom very similar to a failing camshaft sensor. It is wise to check if your vehicle was serviced for this recall to avoid misdiagnosis.
Engine-Specific Replacement Difficulty
The 1997-2005 Malibu used different engines, and replacing this sensor is much harder on one than the others.
• 3.1L V6 Engine (1997-2003): The sensor is located behind the power steering pump. The pump must be unbolted and moved aside for access, making this a more difficult and time-consuming job. 🎬 Watch: Step-by-step camshaft sensor replacement for the 3.1L V6 engine.
• 2.2L & 2.4L 4-Cylinder Engines (2004-2005): The sensor is on top of the engine and easily accessible, held by a single bolt. This is a simple, quick replacement.
Choosing the Right Aftermarket Sensor
For a critical electronic part like a camshaft position sensor, quality matters. While budget parts are available, they have a higher risk of failing early or not working correctly out of the box, forcing you to do the job twice. Here’s a breakdown of available brands to help you choose.
Tier 1: OEM & OEM-Equivalent Brands
These brands are either the original equipment manufacturer or are known to produce parts that meet or exceed GM's standards. They are the safest bet for reliability and longevity.
- Delphi: Delphi was a part of General Motors and is a primary OEM supplier. Choosing a Delphi sensor is often the closest you can get to the original part without going to a dealership. They are built to handle engine heat and provide a clean, accurate signal.
- ACDelco: This is GM's own parts brand. The "GM Original Equipment" line is the exact same part your car was built with. Their "Gold" line offers high-quality aftermarket alternatives.
Tier 2: Reputable Aftermarket Brands
These companies have a long history of producing quality electronic components and are well-respected by professional mechanics.
- Standard Motor Products (SMP): A trusted brand that designs its parts to exceed OEM specifications. They offer a broad range of sensors known for reliability.
- NGK / NTK: While famous for spark plugs, NTK is their sensor division and is known for making high-quality electronic parts that rival OEM performance.

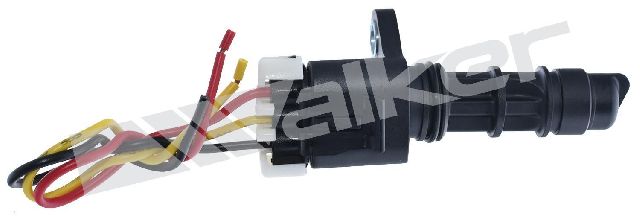

- Walker Products: Another established brand in engine management parts, Walker is a solid choice for sensors that require accurate data for modern engine systems.
Tier 3: Budget-Friendly Brands
These brands offer a cost-effective solution. However, for a sensor this critical, it's a trade-off between price and potential risk.
- Dorman: Dorman specializes in providing direct-fit, cost-effective replacements for OE parts. While many of their parts work well, reviews can be mixed, with occasional fitment or longevity issues reported by users.
- Other Store Brands (True Tech, Global Parts, etc.): These are typically the most affordable options. They can be a viable choice if the budget is tight and the sensor is easy to replace (like on the 4-cylinder engines), but they carry the highest risk of premature failure.
Cost of Replacing a Camshaft Position Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $21 - $79 |
| New OEM Part (ACDelco) | $40 - $90 |
| Shop Labor | $60 - $300 |
| Total (DIY) | $21 - $90 |
| Total (Professional) | $81 - $390 |
Note: Labor costs vary significantly based on your engine. A 4-cylinder engine will be on the low end of the range, while the 3.1L V6 will be on the high end due to the extra labor required.
Frequently Asked Questions
Where is the camshaft position sensor located on a 1997-2005 Malibu?
It depends on your engine. On 2.2L and 2.4L 4-cylinder models, it's on the top of the engine near the valve cover, making it easy to access. On the 3.1L V6, it is located behind the power steering pump, which must be moved to replace the sensor.
Can I drive my Malibu with a bad camshaft position sensor?
It is not recommended. While the car may still run, it is at high risk of stalling at any time, which can be dangerous in traffic. Continued driving can also lead to poor fuel economy and potentially damage other components like the catalytic converter over time.
What is the difference between a P0340 and P0341 code?
Both codes point to a problem with the camshaft sensor circuit. Generally, P0340 means the computer is receiving no signal at all from the sensor. P0341 means the signal is intermittent, irrational, or not in the correct range, which can be caused by a failing sensor or a wiring issue.
🎬 See how to diagnose a P0341 code on a Malibu.Is it better to buy an OEM or aftermarket camshaft sensor?
For critical electronic sensors, many mechanics and experienced owners recommend using the OEM part (ACDelco) or a high-quality OEM supplier like Delphi. These parts have a lower failure rate and ensure correct performance, saving you from future problems.
Helpful Videos

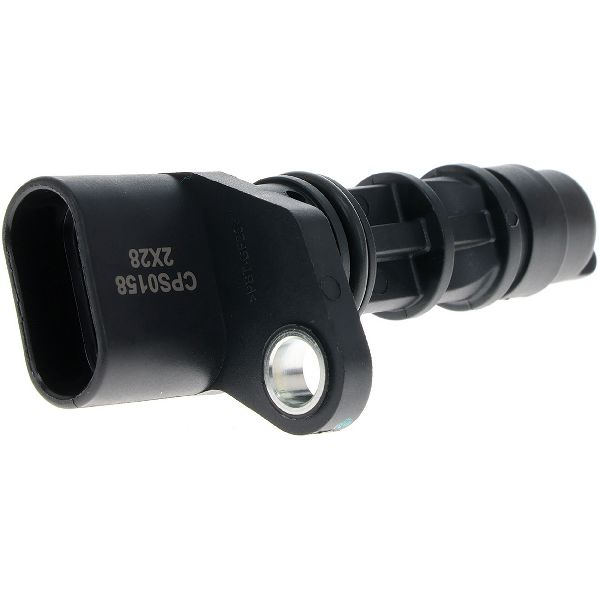

Technical Specifications
OEM Part Numbers: 10456524 24506958 12577245 213-921
This part is an electronic sensor that uses either a Hall-effect or magnetic pickup to detect the rotation of the camshaft. It typically has a 3-pin connector for power, ground, and signal.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
