Chevrolet Venture Engine Oil Pressure Switch Guide for 1997-2005 Models
An essential guide to understanding, diagnosing, and replacing the oil pressure switch on your Venture van.
- A leaking oil pressure switch is a known issue on the 3.4L V6 and can destroy your starter motor.
- Never ignore an oil pressure warning light; it could signal a real pressure drop that can ruin your engine.
- If the warning light is on, check for new engine noises like ticking or knocking, which indicate a serious problem.
- When replacing the starter, always inspect the oil pressure switch for leaks and replace it if there is any doubt.
Is Your Venture's Oil Pressure Light On?
A faulty engine oil pressure switch is a common issue on the Chevrolet Venture. The most frequent sign of a problem is the oil pressure warning light on your dashboard flickering or staying on. You might also see the oil pressure gauge giving incorrect readings, like being stuck at zero, maxed out, or jumping around erratically. In some cases, a failing switch can trigger the Check Engine Light, often storing a P0522 trouble code.
A Leaking Switch is a Major Problem
A very common and serious issue for the 3.4L V6 engine in the Venture is the oil pressure switch leaking oil. Because the switch is located directly above the starter motor, leaking oil will drip down and soak the starter. This can cause the starter to fail prematurely, leaving you stranded and requiring another expensive repair. If you notice an oil leak in that area, it's wise to inspect the switch immediately.

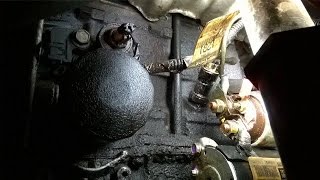

🎬 Watch this guide on fixing a leaking oil pressure switch.Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch, you have several aftermarket options. The quality can vary, so it's important to understand the differences.
- Vemo: Vemo is often considered a higher-quality aftermarket brand that designs parts to meet or exceed original specifications. They specialize in electrical components and sensors, making them a strong choice for a reliable replacement.
- Standard Ignition (SMP): Standard is a well-known brand that has been around for a long time, and they perform extensive testing on their parts. They are generally seen as a solid, reliable mid-tier option for daily drivers, though some online discussions mention occasional premature failures.
- Global Parts: This brand appears to be a value-focused option. Search results for "Global Parts" are often linked to resellers of various new and used parts rather than a dedicated manufacturer with a clear quality history. This could be a budget-friendly choice, but with less certainty about long-term durability.
Pro Tip: Given the switch's tendency to leak and cause other failures, investing in a higher-quality brand like Vemo or a trusted one like Standard Ignition may save you money in the long run by preventing repeat repairs and protecting your starter.
Typical Replacement Costs
The cost to replace the oil pressure switch can vary based on who does the work.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $20.77 - $113.62 |
| Shop Labor | $61 - $90 |
| Total Estimated Cost (DIY) | $20.77 - $113.62 |
| Total Estimated Cost (At a Shop) | $81.77 - $203.62 |
Frequently Asked Questions
Where is the oil pressure switch located on a 1997-2005 Chevy Venture?
The oil pressure switch is screwed into the engine block, right next to the oil filter adapter. On the 3.4L V6 engine, this places it directly above the starter motor.
🎬 See a step-by-step replacement on a 3.4L engine.How do I know if it's a bad switch or real low oil pressure?
You can't be certain without testing. If the oil light comes on, and you hear new engine noises like knocking or ticking, the problem is likely real low pressure, which is critical. If there are no new noises and the gauge is acting erratically or the switch is visibly leaking, it's more likely just a faulty switch. A mechanic can confirm the actual pressure with a mechanical gauge.
🎬 Learn how to diagnose and replace a faulty oil sensor.Why is my starter failing? Could it be the oil pressure switch?
Yes. The 3.4L V6 in these vans is known for the oil pressure switch leaking oil directly onto the starter. This oil saturation will ruin the starter motor over time. If you are replacing your starter, it is highly recommended to inspect and likely replace the oil pressure switch at the same time to prevent the new starter from failing.
What happens if I don't replace a bad oil pressure switch?
If the switch is faulty and just giving false warnings, the main annoyance is the light or dinging. However, if it's leaking, it can cause your starter to fail. Most importantly, if the switch fails to warn you during an actual low-pressure event, you could suffer catastrophic engine damage without any warning.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19436252 12575007 25036853
The switch has a single blade-type terminal and screws into the engine block near the oil filter.
