Engine Water Pump Replacement Guide for the 1997-2005 Chevrolet Venture
Address overheating and coolant leaks by choosing the right new aftermarket water pump for your Venture's 3.4L V6 engine.
- A coolant leak from the front-center of the engine or a whining noise are the most common early warnings of a failing water pump.
- Before replacing the pump, verify the leak is not from the 3.4L V6's common intake manifold gasket failure, which can present similar symptoms.
- Quality aftermarket brands like ACDelco, Gates, and Dayco offer excellent reliability and value compared to dealer parts.
- While replacing the water pump, it is highly recommended to also replace the thermostat and serpentine belt to save on future labor.
Is Your Venture's Water Pump Failing?
A bad water pump can leave you stranded. Recognizing the symptoms early can prevent catastrophic engine damage. If you notice any of these signs, it's time to inspect your cooling system.
🎬 Watch this video to identify common symptoms of a bad water pump.- Coolant Leak: This is the most common sign. You may find puddles of orange or green fluid under the front-center of your van. A slow leak might leave white or colored crusty residue on the engine below the pump, which is located on the passenger side of the engine. The leak often comes from a small "weep hole" at the bottom of the pump, designed to signal that the internal seals are failing.
- Engine Overheating: If your temperature gauge climbs into the red zone, the water pump may not be circulating coolant effectively. Driving an overheating engine for even a few minutes can cause permanent damage.
- Whining or Grinding Noise: A high-pitched whining or grinding sound coming from the engine bay that changes with engine speed is a classic sign of a bad water pump bearing. This indicates the internal parts of the pump are worn out and failing.
- Wobbly Pulley: If you can safely observe the engine running, look at the pulley on the front of the water pump. If it wobbles, the bearing is shot and immediate replacement is needed.
A Note on Intake Manifold Gaskets
The 3.4L V6 engine in the Venture is notorious for coolant leaks from the lower intake manifold gaskets. This can be mistaken for a bad water pump. Before replacing the pump, carefully inspect the top of the engine, around and below the intake manifold, for signs of coolant leaks. A leak in this area is a separate, common issue that will not be fixed by a new water pump.
Choosing the Right Aftermarket Water Pump
For the 1997-2005 Venture, you don't need to buy an expensive OEM part from a dealer. Quality aftermarket brands offer reliable performance at a much better price. Here’s how the available brands generally stack up.
Tier 1: Premium Aftermarket & OEM Equivalent
These brands are known for high-quality manufacturing and are often trusted by professional mechanics. They are an excellent choice for longevity and peace of mind.

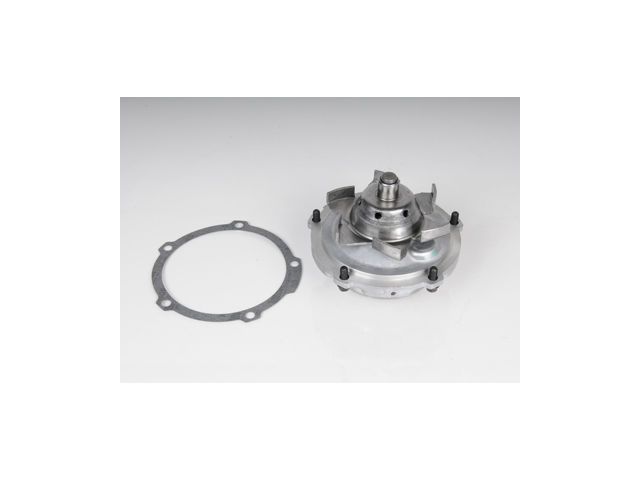

- ACDelco: As a GM-affiliated brand, ACDelco is a go-to choice. Their "Professional" line is a high-quality aftermarket part, while their "OE" line is the same as the factory original. For this application, the Professional series offers a great balance of quality and cost.
- Gates: Gates is a leader in cooling system and belt components. Their water pumps are well-regarded for durability and are often included in comprehensive timing belt or serpentine belt kits.
- Dayco: Similar to Gates, Dayco has a long history of producing reliable belts and cooling parts. Their pumps are designed to meet or exceed original equipment performance and are a solid, dependable choice.
Tier 2: Quality Mid-Range
These brands provide good value and are often OEM suppliers for various car manufacturers, just with a lower price point.
- GMB: GMB is a large Japanese/Korean manufacturer that produces parts for many automakers and the aftermarket. They are generally considered a reliable and affordable option, though some forum users report mixed long-term experiences.
Tier 3: Economy
These brands focus on providing the most budget-friendly options. They can be a good choice for older, high-mileage vehicles where cost is the primary concern.

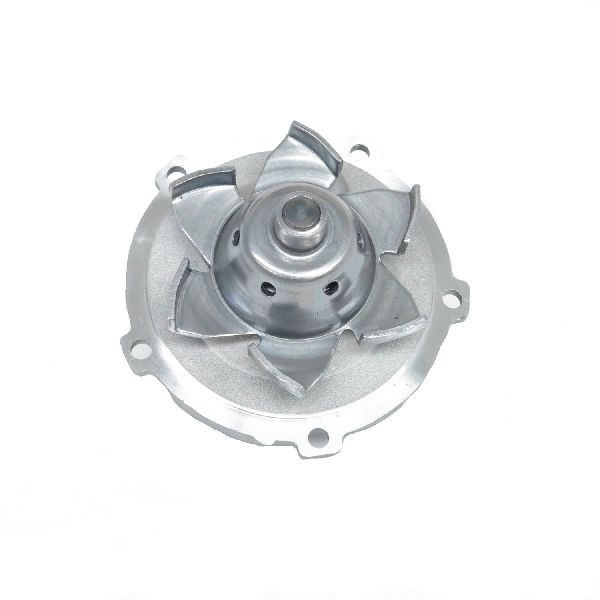

- US Motor Works: This brand positions itself as a value-oriented choice. They often highlight features like metal impellers and testing to OE specifications. Reviews are generally positive for the price point.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $36.00 - $160.71 |
| Shop Labor | $159 - $233 |
| Total Estimated Cost (Parts + Labor) | $195 - $394 |
Pro Tip: What Else to Replace?
Since you'll be draining the coolant and removing the belt, it's smart and cost-effective to replace a few other wear items at the same time. Consider replacing the serpentine belt, thermostat, and the small coolant bypass hose that connects to the water pump. This can save you from having to do a similar job again in the near future.
Frequently Asked Questions (FAQ)
Are there any recalls for the Venture water pump?
No, there have been no specific recalls or widespread technical service bulletins (TSBs) issued by GM or the NHTSA for water pump failure on the 1997-2005 Chevrolet Venture. Cooling system problems are typically due to age-related wear or the well-known intake manifold gasket issue.
Is this a difficult DIY job?

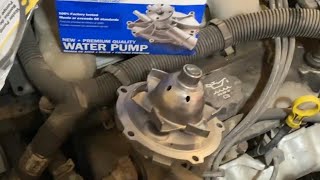

For a DIYer with some experience, this is a manageable job. It requires basic hand tools like 8mm and 10mm sockets. The main challenges are holding the pulley still to remove its bolts and working in the tight space of the engine bay. You will need to drain the coolant, remove the serpentine belt, unbolt the pulley, and then unbolt the pump itself. 🎬 See a step-by-step guide for replacing the water pump and belt. Thoroughly cleaning the old gasket material off the engine block is critical for a leak-free seal.
Should I use a sealant on the new gasket?
Most new water pumps come with a high-quality gasket that does not require sealant. However, some mechanics apply a very thin layer of RTV silicone sealant to help hold the gasket in place during installation. If you do, use it sparingly; excess sealant can break off and clog the cooling system.

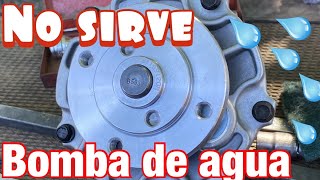

🎬 Vea cómo cambiar la bomba de agua en este motor 3.4 V6.Do I need to bleed the air out of the cooling system afterward?
Yes. After refilling the coolant, you must bleed any trapped air from the system. The Venture's 3.4L engine has bleeder screws to make this easier—one is typically located on the thermostat housing. Trapped air can cause overheating even with a new water pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 130-1480 252-721
Serpentine belt-driven pump for the GM 3.4L (3400) V6 engine. The pump housing is cast aluminum and mounts to the front of the engine block. The pulley is attached with four 10mm bolts.
We Have This Part in Stock
