Guide to 1997-2006 Jeep Wrangler (TJ) Rear Drum Brake Hardware Kits
Don't let worn-out springs and clips compromise your Jeep's stopping power; learn which hardware kit is right for your TJ.
- Always replace the drum brake hardware kit when changing brake shoes to ensure proper function and prevent noise.
- Jeep-specific brands like Crown and Omix-Ada are trusted choices for OE-style fit and complete kits.
- Symptoms like scraping noises, a soft pedal, or a weak parking brake point to worn hardware.
- The job is DIY-feasible, but brake spring tools are highly recommended to make it safer and easier.
Symptoms of Failing Drum Brake Hardware
Worn or broken drum brake hardware can cause a range of braking problems. Because these small parts are under constant tension and exposed to heat and moisture, they eventually fail. Ignoring the symptoms can lead to reduced braking performance or more expensive repairs down the road.
Common Failure Symptoms

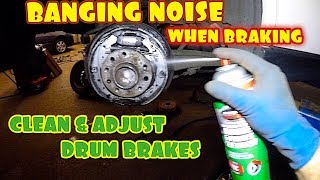

- Scraping or Clicking Noises: A common sign is a scraping, clicking, or "cricket" sound from the rear wheels, which may happen while driving or just when braking. 🎬 Watch: Diagnosing common drum brake noises and banging sounds. This is often caused by a broken or out-of-place spring allowing a brake shoe to make light contact with the drum.
- Spongy or Soft Brake Pedal: If a spring breaks, it can cause the brake shoes to sit incorrectly, leading to a pedal that feels soft or requires more travel to engage the brakes.
- Brake Drag: Weak or broken return springs may not pull the brake shoes fully away from the drum after you release the pedal. This causes constant friction, which can lead to overheating and premature wear of the shoes and drums.
- Loose Parking Brake: The parking brake on a TJ uses the rear drum brake components. If the hardware is worn, the parking brake may feel loose or fail to hold the vehicle securely.
Choosing the Right Aftermarket Hardware Kit
For a common vehicle like the 1997-2006 Wrangler TJ, you have several good aftermarket options. Since this is a simple, mechanical part, aftermarket quality is often on par with OEM for a fraction of the price. The key is choosing a brand with a good reputation for fit and material quality.
Brand Tiers for Jeep Wrangler TJ
Tier 1: Jeep-Specialist Brands
- Crown Automotive: A highly reputable brand in the Jeep community, often considered a go-to for OE-style replacement parts. Their kits are known for good fitment and including all the necessary pieces for a complete job.
- Omix-Ada: Another major player in the Jeep aftermarket world. Omix offers comprehensive kits that often include self-adjusters and other small parts that some other kits miss. Forum discussions show that both Crown and Omix are generally well-regarded, with some users having personal preferences between the two.
Tier 2: General Aftermarket Leaders
- ACDelco, Centric, Dorman, Carlson: These are all well-known aftermarket manufacturers with broad catalogs.
- Centric and Raybestos are part of the same company and are known for producing quality brake components that meet OE specs.
- Carlson specializes in brake hardware and is often praised for making complete, affordable kits that fit well.
- Dorman is a reliable choice, often available at local auto parts stores.
Tier 3: Value Brands
- Dynamic Friction (DFC): This brand is known for offering good quality, often with stainless steel components where others use plated steel, providing excellent value.
Pro Tip: When replacing your brake shoes, always install a new hardware kit. The old springs have been heat-cycled thousands of times and have lost their original tension. Reusing them is a common mistake that can lead to noise and poor brake performance. The low cost of a new kit is cheap insurance for a proper brake job.

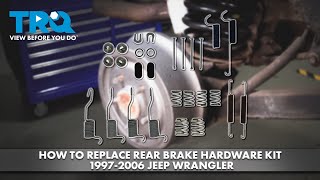

🎬 See a full walkthrough of a rear brake and hardware replacement.Known Issues, Recalls, and TSBs
Searches for the 1997-2006 Jeep Wrangler (TJ) did not reveal any specific recalls or Technical Service Bulletins (TSBs) from the NHTSA related to the drum brake hardware itself. Most issues reported by owners are related to normal wear and tear, corrosion from road salt and moisture, or problems caused by off-roading (debris getting into the drums). An earlier recall (1990-1995 YJ models) existed for a parking brake pedal assembly but does not apply to the TJ generation.
Typical Replacement Costs
The cost to replace a drum brake hardware kit is very reasonable, especially when done at the same time as the brake shoes.
| Part | Price Range |
|---|---|
| New Aftermarket Hardware Kit | $10.92 - $15.37 |
| Shop Labor for Installation | $150 - $250 (typically part of a full rear brake job) |
Frequently Asked Questions (FAQ)
Can I reuse my old drum brake hardware?
It is strongly recommended not to. The springs lose tension over time due to heat and use, and the pins and clips can rust and weaken. A new kit is very inexpensive and ensures your new brake shoes will function correctly and quietly.
What is included in a drum brake hardware kit?
A typical kit includes the shoe return springs, hold-down springs, retainer clips, and pins for both rear wheels. More comprehensive kits may also include the self-adjuster cable and lever.
Do I need special tools to replace the hardware?
While you can often get the job done with pliers and screwdrivers, a set of brake spring tools makes the job much easier and safer. These tools are designed to handle the strong springs without slipping.

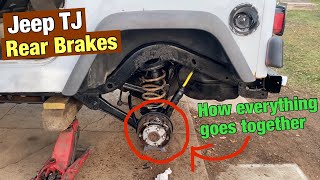

🎬 Watch: How the rear brake components fit together on a TJ.Should I replace anything else at the same time?
Yes. The hardware should always be replaced when you replace the brake shoes and drums. This is also the perfect time to inspect the wheel cylinders for any signs of brake fluid leaks and check the condition of the parking brake cables.
Helpful Videos
Technical Specifications
OEM Part Numbers: H2319 52005350KL
Fits 9-inch rear drum brakes commonly found on 1997-2006 Jeep Wrangler TJ models, including those with the Dana 35 rear axle. Note that some models like the Rubicon with a Dana 44 may have larger 10-inch brakes requiring a different kit.
