Jeep Wrangler TJ (1997-2006) Ignition Switch: Symptoms, Brands, and Replacement
If your TJ won't start, stalls, or has strange electrical problems, your ignition switch could be the culprit.
- A bad ignition switch causes no-start conditions and random electrical issues like the radio or wipers failing.
- Before replacing the switch, check the ignition actuator pin; it's a very common failure point on TJs that causes similar symptoms.
- Replacement is a simple, one-hour DIY job with basic tools and a security Torx bit.
- Quality aftermarket brands like Standard Ignition offer a reliable repair without the high cost of an OEM part.
Is Your Ignition Switch Failing?
A bad ignition switch in a 1997-2006 Jeep Wrangler TJ can cause some confusing problems. Because it controls power to so many different parts of the vehicle, the symptoms can seem random. One day your radio won't turn on, and the next day the engine might not crank at all. Understanding these signs can save you from replacing the wrong parts.
Common Failure Symptoms

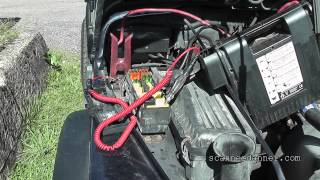

- No Crank, No Start: You turn the key and nothing happens. The dashboard lights may come on, but the starter motor is silent. 🎬 Watch this video to troubleshoot a no-crank condition
- Intermittent Electrical Problems: Your radio, wipers, or turn signals suddenly stop working. Sometimes, restarting the Jeep fixes it temporarily.
- Stalling While Driving: The engine may shut off without warning, especially when hitting a bump. This is a serious safety issue caused by the switch losing electrical contact.
- Starts, Then Immediately Dies: The engine fires up but shuts off as soon as you release the key from the 'START' to the 'ON' position.
A Note on the Ignition Actuator Pin
A very common failure on the TJ Wrangler is the Ignition Switch Actuator Pin. This is a small metal part that connects your key cylinder to the electrical ignition switch. It is known to break, causing a 'no crank, no start' symptom that can be mistaken for a bad switch. If you have power to your accessories but the engine won't crank, investigate the actuator pin before replacing the switch itself.

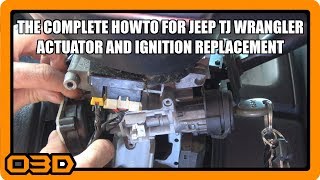

🎬 See how to replace a broken ignition actuator pinChoosing the Right Aftermarket Ignition Switch
For a vehicle like the TJ, a quality aftermarket ignition switch is a reliable and cost-effective choice. The original Mopar parts can be expensive and hard to find. Here’s a breakdown of the common aftermarket brands available.
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard parts are known for meeting or exceeding OEM quality. They use quality materials like copper alloy conductors for good performance and are rigorously tested. This is a trusted choice for a long-lasting repair.
- Omix-Ada: As a brand that specializes in Jeep parts, Omix-Ada offers a direct-fit replacement for the TJ. They are a popular choice within the Jeep community and a solid mid-tier option.
- Dorman: Dorman is a well-known brand that provides affordable and widely available parts. They are a good budget-friendly choice and also manufacture the failure-prone actuator pin, offering a complete solution.
How Much Does an Ignition Switch Replacement Cost?
The cost to replace the ignition switch on a '97-'06 Wrangler is very reasonable, especially if you do it yourself. The part itself is not expensive, and the job requires only basic tools.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Switch | $33 - $115 |
| New OEM (Mopar) Ignition Switch | $150 - $185+ |
| Shop Labor | $120 - $240 |
| Total Professional Replacement | $150 - $350 |
Pro Tip: This is a great DIY project. The replacement takes about an hour and only requires common hand tools and a security Torx bit set, which is inexpensive. Doing it yourself can save you over $100 in labor costs.
🎬 Watch: Step-by-step guide to replacing your TJ ignition switchFrequently Asked Questions
Is the ignition switch the same as the lock cylinder?
No. The lock cylinder is the mechanical tumbler you put your key into. The ignition switch is the separate electrical part it controls, located on the steering column. They are connected by an actuator pin.
Do I need to reprogram my key after replacing the ignition switch?
No. For the 1997-2006 Wrangler, replacing the electrical ignition switch does not require any key programming. If your Jeep has a gray Sentry Key with a security chip, that system is tied to the lock cylinder housing and computer, not the switch itself.
Why do my accessories work but the Jeep won't start?
This is a classic symptom. It could be the ignition switch failing to send power to the starter circuit. However, on a TJ, it is very often a sign of a broken ignition actuator pin, which fails to physically move the switch into the 'start' position.
Are there any recalls for the TJ ignition switch?
Yes, there were a couple of relevant recalls. One was issued for the 2001-2002 Wrangler for the ignition switch itself. Another recall for the 2006 Wrangler with a manual transmission was for the clutch ignition interlock switch, which could prevent starting. You can check your specific VIN on the NHTSA website to see if it's affected.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4685719AB 5014175AA
Located on the steering column, this is the electrical switch activated by the lock cylinder. It uses two multi-pin connectors. Replacement requires a T10 or T15 security Torx driver.
