Ford Lobo 1997-2009: A Guide to Replacing Your Engine Crankshaft Position Sensor
Fix stalling, no-start, and rough running issues by understanding and choosing the right crankshaft sensor for your truck.
- A bad crankshaft sensor will cause stalling or a crank-no-start condition.
- The sensor is on the passenger side front of the engine; the A/C compressor usually needs to be moved to access it.
- The most common diagnostic code is P0320, indicating an erratic signal.
- For this critical part, choosing a quality aftermarket brand like NGK or Standard Ignition is a wise investment over budget options.
Is Your Ford Lobo Stalling or Not Starting? It Could Be the Crankshaft Sensor.
If you own a 1997-2009 Ford Lobo (or F-150), you have a reliable truck. But as they get older, some small parts can cause big headaches. One of the most common is the engine crankshaft position sensor (CKP). When this sensor fails, it can leave you stranded. Symptoms often start small, like a rough idle or occasional stalling, but can quickly turn into a truck that cranks but won't start.
Critical Part Warning
A completely failed crankshaft position sensor will prevent your engine from starting. If it fails while you are driving, the engine will stall, which can be dangerous. It's a good idea to address the symptoms as soon as they appear.
Common Symptoms of Failure
A failing crankshaft sensor on the Ford Lobo V8 engines (like the 4.6L and 5.4L) will give you clear signs. Look out for:
- Engine Won't Start: The engine will turn over (crank), but it won't fire up. This is the most common symptom of a completely failed sensor.
- Sudden Stalling: The engine may shut off unexpectedly while you're driving or idling at a stop light.
- Rough Idling and Misfires: The truck may shake or vibrate at idle because the engine timing is off.
- Poor Acceleration: You might notice the truck feels sluggish or hesitates when you press the gas pedal.
- Check Engine Light: A failing sensor will often trigger the check engine light with codes like P0320.
Choosing the Right Aftermarket Sensor
For a critical sensor like this, quality matters. A cheap, poorly made sensor can fail quickly or be dead on arrival, causing you to do the job twice. While the original Ford (Motorcraft) part is always a safe bet, several aftermarket brands offer a good balance of quality and price.

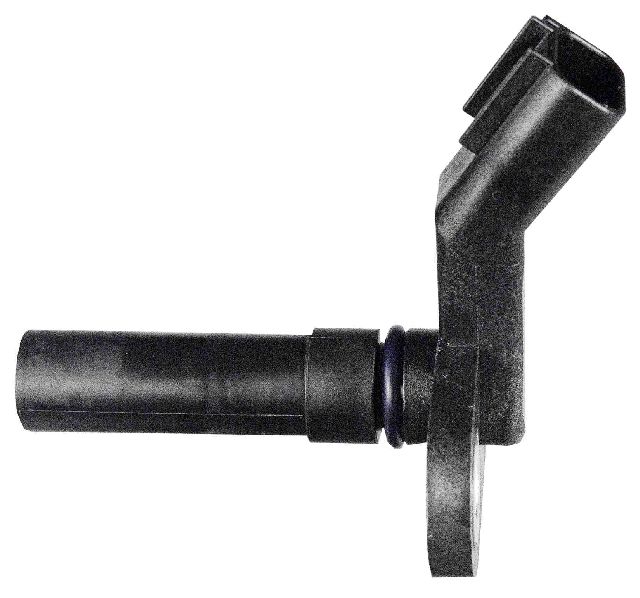

- Top Tier (Recommended): Brands like NGK (NTK) and Standard Motor Products (SMP) have a strong reputation for making sensors that are as good as the original. They are often trusted by professional mechanics.

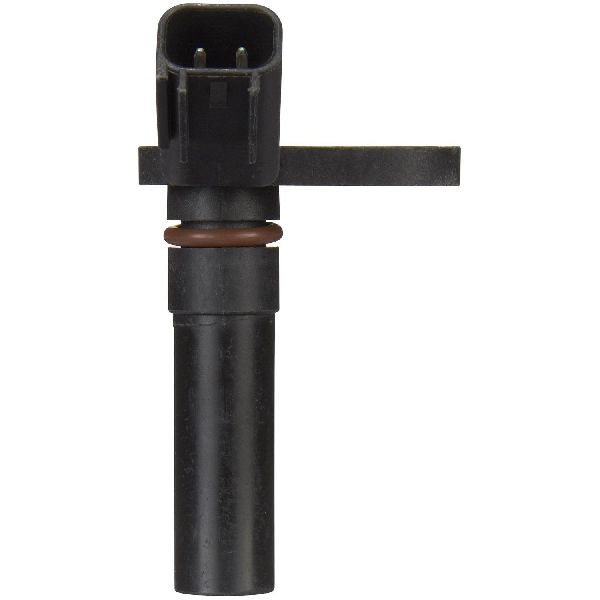

- Mid-Grade (Good Value): Spectra Premium and Walker Products are solid choices that offer reliable performance for a lower price. They are a good option for a daily driver.
- Economy (Use with Caution): Brands like Dorman and other store-brands can be a budget-friendly fix. While Dorman offers a wide range of parts, forum discussions show mixed reviews on sensor reliability. They can be a good option if you're in a pinch, but for long-term peace of mind, a top-tier brand is recommended.
Pro Tip: Check the Wiring First
Before you replace the sensor, inspect the wiring connector and harness. A loose connection, oil contamination, or a damaged wire can cause the same symptoms as a bad sensor. Cleaning the connector with electrical cleaner might solve your problem.
Cost of Replacing the Crankshaft Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $22.51 - $39.32 |
| New OEM (Motorcraft) Part | $40 - $80 |
| Shop Labor | $100 - $200 |
| Total DIY Cost (Aftermarket) | $22.51 - $39.32 |
| Total Shop Cost (Aftermarket) | $125 - $240 |
Frequently Asked Questions
Where is the crankshaft sensor located on the 1997-2009 Ford Lobo?
On the 4.6L and 5.4L V8 engines, the sensor is located on the passenger side of the engine, on the front timing cover, near the main crankshaft pulley. On many models, you will need to loosen and move the A/C compressor to get access to the sensor. You do not need to disconnect the A/C lines.
Is replacing the crankshaft sensor a DIY job?
Yes, for most people with basic tools. The main challenge is access. On V8 models, you'll need to release the serpentine belt tension and unbolt the A/C compressor to move it aside. The sensor itself is held by just one bolt (usually 8mm or 10mm). The job can take about 1-2 hours.
Are there any recalls for this part?
There are no specific recalls from the NHTSA for the crankshaft position sensor on the 1997-2009 Ford F-150/Lobo. There was a recall for a camshaft position sensor on some 7.3L diesel trucks, but this does not apply to the common gas engines in the Lobo.
What happens if I ignore the problem?
Ignoring the symptoms will eventually lead to a no-start condition, leaving you stranded. If the sensor fails while driving, the engine will stall, leading to a loss of power steering and power brakes, which is a serious safety risk.
Technical Specifications
OEM Part Numbers: 1W7Z-6C315-AA
This is a magnetic hall-effect sensor that reads teeth on a reluctor wheel on the crankshaft to determine engine speed and position. It is typically held in place by a single bolt and sealed with an O-ring.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
