Mercedes-Benz C230 Crankshaft Position Sensor Guide (1997-2009)
Everything a C230 owner needs to know about this common failure part before buying a replacement.
- The most common symptom of failure is the engine stalling when hot and not restarting until it cools down.
- This is a critical failure that can leave you stranded; replace the sensor as soon as symptoms appear.
- Bosch is the Original Equipment Manufacturer (OEM); using a Bosch aftermarket sensor is the safest and most recommended choice.
- The sensor is located in a very tight spot on the driver's side rear of the engine, requiring an E8 Torx socket and long extensions to replace.
Is Your C230 Stalling When Hot? It’s Probably the Crankshaft Sensor.
If you own a 1997 to 2009 Mercedes-Benz C230, you will likely face a failing crankshaft position sensor at some point. This is one of the most common failure points on these cars. The classic symptom is the engine stalling once it's fully warmed up, then refusing to restart until it has cooled down for an hour or two. This happens because heat causes the sensor's internal electronics to fail, cutting the signal to the engine computer and shutting the car down.
Critical Failure Warning
A failing crankshaft position sensor can cause your engine to shut off while driving. This is a serious safety risk, as you will lose power steering and power brakes. It is highly recommended to replace this sensor as soon as symptoms appear.
Choosing the Right Aftermarket Sensor: Brand Tiers Matter
When your crankshaft sensor fails, you have a choice between an original part from Mercedes (OEM) and an aftermarket part. For this specific sensor, the brand you choose makes a big difference.
- Tier 1: OEM Supplier (Bosch): Bosch is the original manufacturer for Mercedes-Benz on this part. Buying a Bosch-branded sensor is the same quality as buying one from the dealer, but usually for less money. This is the most recommended option by experienced Mercedes mechanics and owners.
- Tier 2: Reputable Aftermarket (Hella, Delphi, NGK): Brands like Hella, Delphi, and NGK/NTK have a long history of making quality electronic parts. They are generally considered reliable alternatives if a Bosch part is not available.
- Tier 3: Budget Brands: While the low price is tempting, be cautious with budget-friendly or unknown brands for this part. Forum discussions show that some owners who tried a cheap sensor had it fail quickly or not work at all, forcing them to do the job a second time with a quality part. Since a failure can leave you stranded, spending a little more for a proven brand is a smart investment.
Pro Tip: Check for Oil Leaks

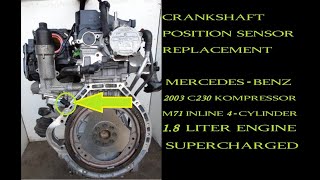

On some C230 models, particularly those with the M111 and M271 engines, 🎬 Watch this step-by-step replacement guide for the M271 engine. leaking camshaft sensors can cause oil to travel through the wiring harness. This oil can contaminate other sensors, including the crankshaft position sensor connector, causing similar issues. When replacing your sensor, inspect the connector for any signs of oil and address the source of the leak if needed.
Cost of Replacing the C230 Crankshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $21 - $88 |
| New OEM (Bosch/Mercedes-Benz) | $50 - $110 |
| Shop Labor | $150 - $300 |
Cost estimates are approximate and can vary by location and supplier.
Frequently Asked Questions
Where is the crankshaft position sensor located on a C230?
The sensor is on the driver's side of the engine, at the very back where the engine connects to the transmission (bell housing). It is tucked away and very difficult to see from above. You will need a flashlight and a mirror to locate it, and you will likely be working by feel.
🎬 Watch a mechanic locate and swap the sensor on a 2007 C230.Can I replace this sensor myself?
Yes, this is a DIY-friendly job if you have patience and the right tools. The main challenge is the tight access. You will need an E8 external Torx socket, a universal joint, and several long extensions to reach the single bolt holding the sensor in place. Many owners have successfully completed this repair at home.
🎬 See how to access the sensor on W203 C-Class models.Are there any recalls for this part on my C230?
No. While there was a recall for crankshaft sensors on some Mercedes models with diesel engines, it did not apply to the gasoline-powered 1997-2009 C230. This is considered a common wear-and-tear failure, not a recall issue.
What is the most common mistake when ordering this part?
The most common mistake is buying a low-quality, unproven brand to save a few dollars. These sensors live in a very hot environment and are known to fail. A cheap sensor may not last, leading to the same stalling problems. Stick with Bosch or another reputable German brand for reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0031532828 0031532728 6429050000
Requires one E8 external Torx bolt for installation. Located on the driver's side bell housing.
