Engine Auxiliary Water Pump: 1998-2002 Ford Ranger EV Specific Guide
This electric pump is for the rare Ranger EV model, not for gasoline-powered trucks.
- This part is ONLY for the 1998-2002 Ford Ranger EV (Electric Vehicle).
- Gasoline engine Rangers with heating problems need to check the heater control valve, blend door, or main water pump.
- Failure on a Ranger EV leads to no heat and no defrost capability, which is a safety concern in cold weather.
- Bosch is a top-tier replacement brand, while Gates and Four Seasons offer a good balance of quality and price.
Important: For Gasoline Ford Ranger Owners
If you have a 1998-2002 Ford Ranger with a 2.5L, 3.0L, or 4.0L gasoline engine, this auxiliary water pump is NOT the correct part for your truck. Your vehicle does not use an auxiliary water pump for the heater. If you are experiencing no heat or poor heat, especially at idle, the problem is likely one of the following:
- Heater Control Valve: A common failure point that can get stuck and prevent coolant from reaching the heater core.
- Air in the Cooling System: Trapped air can cause an airlock that stops coolant circulation to the heater.
- Clogged Heater Core: Over time, sediment can block the small passages of the heater core.
- Weak Main Water Pump: The impellers on the main water pump can wear out, reducing flow at low engine speeds.
- Blend Door Actuator: A small motor in the dashboard that directs airflow. If it fails, it can get stuck on the 'cold' setting.
Engine Auxiliary Water Pump for the Ford Ranger EV
For owners of the all-electric Ford Ranger EV, this auxiliary pump is essential for your climate control system. Since your vehicle lacks a gasoline engine's constant heat source, this pump is the primary component responsible for moving heated coolant to provide cabin warmth. When it fails, your heater and defroster will stop working effectively.
Symptoms of a Failing Auxiliary Water Pump (Ranger EV)
A failing auxiliary water pump on a Ranger EV will directly impact your comfort and safety in cold weather. The signs are usually straightforward:
- No Warm Air: The most obvious symptom is a complete lack of heat from the vents, even when the system is on.
- Fluctuating Heat: The pump motor may be failing intermittently, causing the heat to work one moment and not the next.
- Defroster Not Working: The window defroster relies on hot coolant to clear fog and ice. A bad pump will render it useless.
- Buzzing Noise: You might hear a distinct high-pitched buzzing or whirring sound. This is often the electric motor inside the pump failing.
Choosing the Right Aftermarket Part
When replacing the auxiliary water pump on your Ranger EV, you have several quality aftermarket options. Since this is a specialized part for a rare vehicle, brand reputation for reliability is key.
- Tier 1 (Premium): Bosch

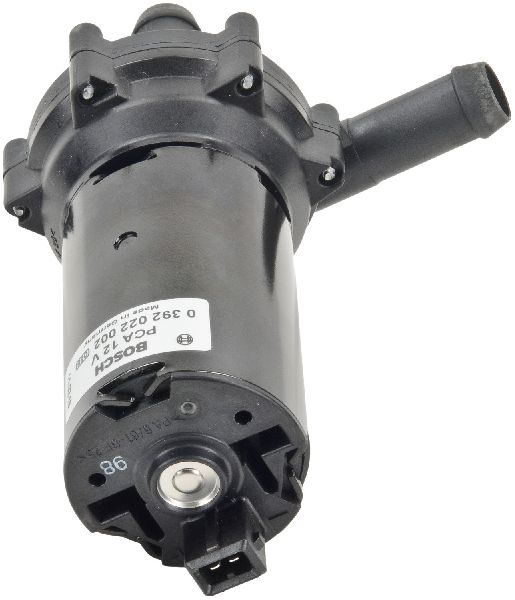

Bosch is a well-regarded OEM (Original Equipment Manufacturer) for many brands and is known for high-quality electronics and pumps. Their auxiliary pumps are built to strict standards, often featuring sealed chambers to protect electronics and are tested for performance before shipping. For a critical component on an EV, a Bosch pump is a reliable choice. - Tier 2 (Quality Aftermarket): Gates, Four Seasons

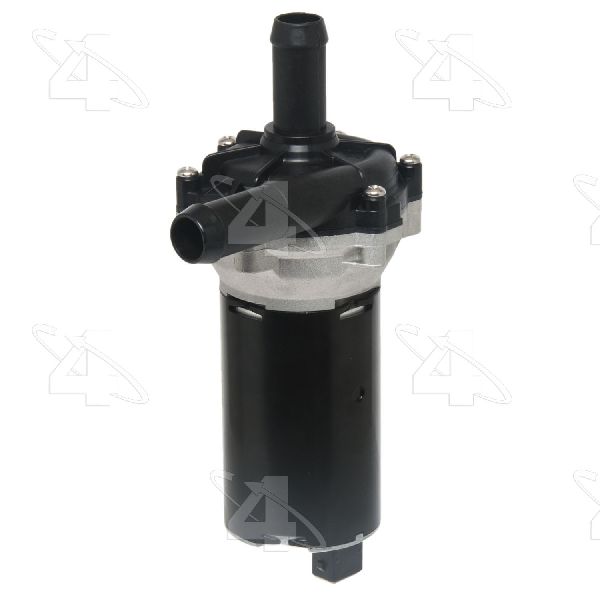

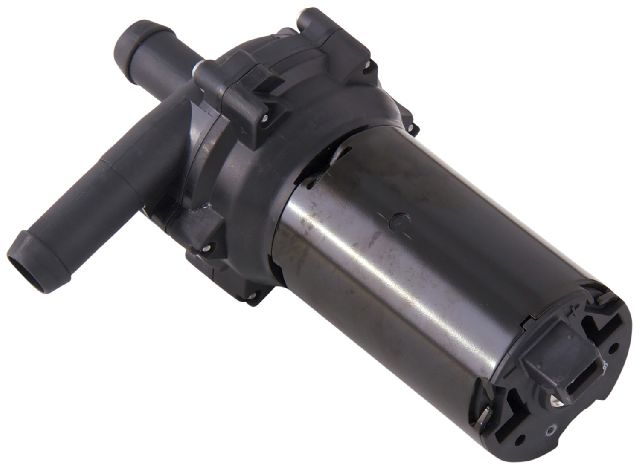

Gates is a giant in the automotive aftermarket, famous for belts and hoses. While some of their mechanical water pumps are viewed as re-boxed from other manufacturers, their electric components are generally considered reliable. Four Seasons has a long history in vehicle climate control systems and produces direct-fit replacement parts that meet or exceed OEM specifications. Both are solid choices that balance cost and quality. - Tier 3 (Value): US Motor Works

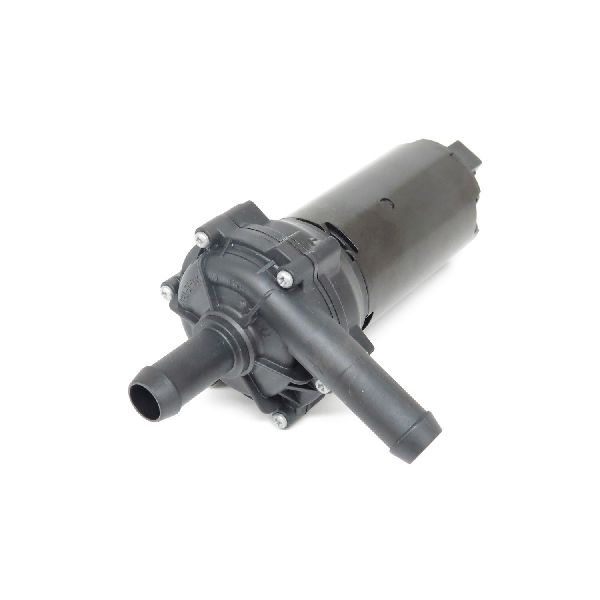

Brands like US Motor Works offer a cost-effective solution. While they may not have the same OEM pedigree as Bosch, they provide a functional replacement that can get your heat working again. For an older vehicle, this can be a practical option.
| Brand | Typical Price Range | Notes |
|---|---|---|
| Bosch | $220 - $255 | Premium quality, often with OEM design. |
| Gates | $190 - $230 | Reputable brand, good performance. |
| Four Seasons | $180 - $220 | Strong reputation in A/C and heating parts. |
| US Motor Works / Store Brands | $170 - $200 | Value-oriented, functional replacement. |
Frequently Asked Questions (FAQ)
I have a gas Ranger with no heat at idle. Is this the part I need?
No. Gasoline-powered 1998-2002 Ford Rangers do not use this part. Your issue is likely a bad heater control valve, air in the cooling system, a clogged heater core, or a weak main water pump.
Can I drive my Ranger EV with a bad auxiliary water pump?
Yes, but you will not have cabin heat or a functioning defroster. This is a safety issue in cold or humid climates. The part's failure does not affect the vehicle's main electric drive system.
Where is the auxiliary water pump located on a Ranger EV?
The auxiliary water pump is an inline electric pump. You will find it integrated into the heater hoses that run between the coolant heater unit and the firewall, leading to the heater core.
Is this the same as the main water pump?
No. This is a small, secondary electric pump specifically for the heater circuit. Gasoline engines have a large, belt-driven mechanical water pump for cooling the entire engine, which is a completely different part.
Technical Specifications
OEM Part Numbers: F87Z-18D473-AA F8YZ8501AA 1W4Z18D473AA
12V Electric Inline Pump
