Exhaust Manifold Gasket Set Guide for 1998-2003 Dodge Durango
Dealing with that annoying ticking sound? Here’s what you need to know about replacing your Durango's exhaust manifold gaskets.
- The root cause is usually broken manifold bolts or a warped manifold, not just a bad gasket.
- Always inspect the manifold for warpage and replace it if it's not perfectly flat.
- Always use new, high-quality bolts and studs for the installation.
- This is a common, well-documented problem on 4.7L, 5.2L, and 5.9L Magnum engines.
Is Your Durango Making a Ticking Noise?
One of the most common issues for 1998-2003 Dodge Durango owners is a distinct ticking or tapping sound coming from the engine bay, especially when the engine is cold. This noise often disappears as the engine warms up because the metal parts expand and temporarily reseal the leak. While the sound points to a leaking exhaust manifold gasket, the gasket itself is usually not the root cause. The problem is almost always broken exhaust manifold bolts or a warped exhaust manifold, which then causes the gasket to fail.
The Real Problem: Broken Bolts and Warped Manifolds
The cast iron exhaust manifolds on the Durango's V8 engines (4.7L, 5.2L, and 5.9L) are notorious for warping due to constant high-heat cycles. This warping puts extreme stress on the mounting bolts, causing them to stretch and eventually snap, particularly the ones at the rear of the cylinder head. Once a bolt breaks, a gap is created, causing the gasket to blow out and leak. Simply replacing the gasket without addressing the warped 🎬 Learn how to fix leaking manifolds on Magnum engines manifold or broken bolts will not solve the problem.

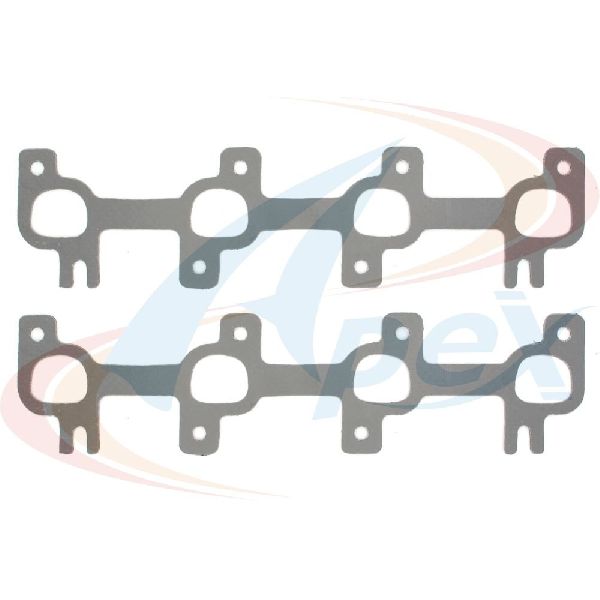

Choosing the Right Aftermarket Gasket Set
When you're ready to make the repair, you'll find several aftermarket brands available. OEM Mopar gaskets are an option, but quality aftermarket brands often provide excellent or even superior performance for this specific repair. The key is to choose a quality gasket and, more importantly, to replace the manifold hardware at the same time.
Aftermarket Brand Tiers
- Premium (Good for Warped Surfaces): Brands like Remflex offer extra-thick, soft graphite gaskets that can crush down and fill imperfections, making them a great choice if your manifold has minor warping.
- Quality Standard Replacement: Fel-Pro is a widely trusted name in the gasket industry and a go-to for many mechanics. They often offer multiple quality levels for the same application. Victor Reinz and Mahle are also considered OEM-quality or better and are excellent choices for a reliable, long-lasting seal.
- Economy: Brands like Apex can be a budget-friendly option for a standard repair where the manifold and cylinder head surfaces are perfectly flat and in good condition.
Pro Tip: Always Replace the Hardware
Do not reuse the old exhaust manifold bolts. They have been through countless heat cycles and are likely fatigued. Many gasket sets come with new hardware, but if not, purchase a new set of high-quality bolts and studs. Some mechanics even upgrade to stronger ARP bolts to prevent future breakage.
Cost of Replacing an Exhaust Manifold Gasket Set
The cost can vary depending on whether you do it yourself or hire a shop. The main variable is labor, especially if bolts are broken and need to be extracted.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Gasket Set | $15 - $42 |
| New Aftermarket Manifold (if needed) | $60 - $150+ |
| Shop Labor | $160 - $270+ |
| Total Professional Repair | $190 - $310+ (more if bolt extraction is difficult) |
Frequently Asked Questions (FAQ)
Do I need to replace the exhaust manifold too?
Inspect the manifold carefully once it's removed. Use a straight edge to check for warping. If it's warped or cracked, it must be replaced. Resurfacing a warped manifold is not recommended as it will likely warp again.
Is this a DIY job?
It can be, but it's challenging. The biggest hurdle 🎬 See a step-by-step guide for replacing the 4.7L manifold is dealing with rusted and broken bolts. If a bolt breaks off flush with the cylinder head, it will need to be drilled out and extracted, which requires special tools and skill. Accessing the bolts can also be difficult, often requiring removal of the fender liner.
Should I use gasket sealant?
Most modern gaskets, especially multi-layer steel (MLS) or graphite types, are designed to be installed dry. Some mechanics apply a thin layer of high-temp copper sealant for extra insurance, but always follow the gasket manufacturer's instructions.
Are there any recalls for this issue?
No, there have been no recalls issued by Dodge 🎬 Watch a summary of common Dodge Durango owner complaints or the NHTSA for failing exhaust manifold gaskets or bolts on the 1998-2003 Durango, despite it being a very common problem. There was a TSB for later model Durangos (2019-2022) with a similar ticking issue, but it does not apply to this generation.
Helpful Videos
Technical Specifications
Gasket material varies by brand and includes multi-layer steel (MLS), graphite, and composite materials. Ensure the gasket set is correct for your specific engine (3.9L V6, 4.7L V8, 5.2L V8, or 5.9L V8) as they are not interchangeable.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
