Guide to 1998-2003 Dodge Durango Exhaust Manifold Hardware Replacement
That ticking noise from your engine is likely a broken exhaust manifold bolt, a common issue on first-generation Durangos.
- A ticking noise when cold is the most common sign of broken exhaust manifold bolts on a 1998-2003 Durango.
- This is a very common problem; using an aftermarket hardware kit from a brand like Motormite is a standard, reliable repair.
- Always replace the manifold gaskets and all hardware at the same time for a complete repair.
- Be prepared for broken bolts during removal; this is the most difficult part of the job and can significantly increase labor time.
Is Your Durango Making a Ticking Sound?
A rhythmic ticking or tapping noise, especially when the engine is cold, is a classic symptom of an exhaust leak on a 1998-2003 Dodge Durango. 🎬 Watch a video on common first-generation Durango problems. This sound is almost always caused by broken exhaust manifold bolts. The original factory bolts are known to be a weak point, often corroding and snapping due to intense heat cycles. When a bolt breaks, it creates a small gap between the exhaust manifold and the cylinder head, allowing exhaust gas to escape and create the ticking noise. As the engine warms up, the metal parts expand and can sometimes quiet the noise, but the problem remains.
Other Signs of Failure
- Smell of exhaust fumes in the engine bay or cabin.
- Reduced engine performance or fuel efficiency.
- Visible black soot marks around the manifold, indicating a leak.
- A Check Engine Light may appear in severe cases.
Choosing the Right Aftermarket Hardware
When it comes to replacing exhaust manifold hardware on a first-generation Durango, aftermarket parts are a common and reliable choice. The original equipment (OEM) bolts were prone to failure, so choosing a quality aftermarket kit is not a downgrade. Brands like Motormite (a Dorman brand) provide direct-fit replacement hardware kits designed to address this common failure point. These kits are an affordable and effective solution for resolving the notorious exhaust tick.
Pro Tip: This is not a job you want to do twice. Always replace the exhaust manifold gasket at the same time you replace the hardware. Reusing an old gasket will almost certainly result in a leak.
🎬 See how to replace the exhaust manifold and gasket.Cost of Replacing Exhaust Manifold Hardware
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $39 - $49 |
| Shop Labor | $250 - $500+ |
| Total Estimated Cost | $289 - $549+ |
Note: Labor costs can vary significantly. The most challenging part of this job is removing the old, broken bolts, which can sometimes require drilling and extraction, increasing labor time. 🎬 Learn a quick method for removing broken manifold bolts.
Frequently Asked Questions
Why do the exhaust manifold bolts break on these Durangos?
The bolts fail from constant expansion and contraction due to extreme heat cycles. Corrosion and the fact that the steel bolts are threaded into an aluminum cylinder head also contribute to the problem, causing them to seize and eventually snap under stress.
Can I just replace the one broken bolt?
It is strongly recommended to replace all the bolts on the manifold at the same time. The other original bolts have been exposed to the same stress and are likely to fail soon. A complete hardware kit ensures a reliable, long-lasting repair.
Is this a difficult DIY job?
Yes, this can be a very challenging job. While unbolting the hardware is straightforward, the bolts are often rusted and break during removal. Extracting broken bolts requires special tools and experience. For mechanics who are not experienced with extracting broken fasteners, this job is best left to a professional.
Do I need to use a specific brand like Motormite?
Motormite (Dorman) is a widely available and generally trusted brand for this type of replacement hardware. The most important factor is using a new, complete kit rather than reusing old hardware or sourcing bolts from a hardware store. High-quality, application-specific bolts are designed to handle the heat and stress.
Helpful Videos
Technical Specifications

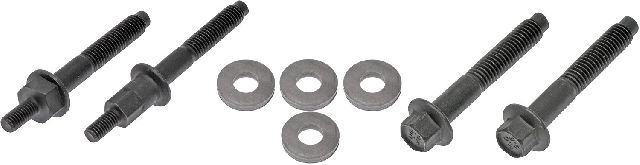

Kit typically includes a set of bolts and/or studs and nuts designed for one exhaust manifold. Two kits are required to service both sides of a V8 engine.
