A Guide to the 1998-2004 Chevrolet Corvette Window Motor and Regulator
Here is what C5 Corvette owners need to know about fixing a slow, noisy, or completely dead power window.
- Window regulator failure is a very common issue on all 1998-2004 C5 Corvettes.
- The entire regulator and motor must be replaced as a single assembly.
- Affordable aftermarket assemblies are a popular and reliable alternative to expensive OEM parts for this specific repair.
- Replacement is a manageable DIY project for owners with basic tools, taking around two hours.
Is Your Corvette's Window Acting Up?
A failing window regulator is a very common problem for 1998-2004 C5 Corvette owners. The issue can appear even on low-mileage cars. 🎬 Watch: See why these regulators fail even with low mileage. Symptoms often start small but get worse over time. If your window is slow, noisy, or has stopped moving, the regulator and motor assembly likely needs to be replaced.
Symptoms of a Failing C5 Window Regulator
- Slow or Intermittent Operation: The window struggles to go up or down, or only works sometimes.
- Grinding or Popping Noises: You may hear grinding, clunking, or popping sounds from inside the door as the window moves. This is often the sound of a frayed cable binding in the mechanism.
- Window is Stuck: The window won't move at all, but you might hear a "click" from the switch or a relay inside the door. In some cases, hitting the inside of the door panel can make it work temporarily, which usually points to a worn-out motor.
- Window Drops or is Crooked: A broken cable or plastic guide can cause the window to drop inside the door or sit crooked in its track.
Choosing a Replacement: Aftermarket vs. OEM
When it comes to replacing the window regulator on a C5 Corvette, you have a choice between Original Equipment Manufacturer (OEM) and aftermarket parts. For this specific component, the decision isn't as clear-cut as it is for other parts.
OEM (AC Delco): Genuine GM or AC Delco parts are the most expensive option. While they are made to factory specifications, even the original parts are known to fail. A key issue to be aware of is that some OEM replacement regulators for the passenger side require a different wiring connector, forcing you to buy and splice in a new pigtail.
Aftermarket (Cardone, Dorman, etc.): Aftermarket regulators are significantly cheaper. Many Corvette owners and even professional repair shops report using affordable aftermarket units from sites like Amazon or eBay with great success. Forum discussions show a general consensus that for this part, an inexpensive aftermarket assembly is a reasonable choice. Most aftermarket passenger-side units are plug-and-play and do not require the wiring adapter that the OEM part might need. However, be aware that some users have reported aftermarket motors being noisier or lacking the soft-stop feature of the original.
Pro Tip
Given the high failure rate of the original design and the high cost of OEM parts, a quality aftermarket regulator is a very popular and practical choice for the C5 Corvette. Many owners find they perform just as well for a fraction of the price.
C5 Corvette Window Regulator Replacement Cost

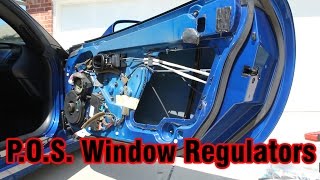

The cost to replace the window regulator assembly depends on the type of part you choose and whether you do the work yourself. The job is considered a straightforward DIY project 🎬 See this step-by-step walkthrough for replacing the motor and regulator. for those with basic tools.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $150 - $220 |
| New Aftermarket Part | $125 - $319 |
| New OEM Part | $180 - $530 |
| Used OEM Part | $60 - $120 |
Frequently Asked Questions
Is replacing the window regulator a DIY job?
Yes, many Corvette owners successfully replace the regulator themselves. It is considered an easy to moderate difficulty job that takes about 1.5 to 2.5 hours. The process involves removing the door panel, the speaker, and then unbolting the regulator assembly.
🎬 Watch: A helpful guide to removing and installing the assembly.What tools are needed for the replacement?
You will need basic hand tools, including plastic trim removal tools, a T-30 Torx driver, and sockets (primarily 10mm and 13mm).
Can I just replace the motor or the cable?
No, the motor, regulator, and cables are sold as a single, complete assembly for the C5 Corvette. You cannot buy the individual components separately.
Do I need a special wiring adapter?
If you are replacing the passenger side regulator with a new OEM AC Delco part, you may need to purchase a separate wiring harness adapter (pigtail). Most aftermarket regulators for the passenger side are plug-and-play and do not require this adapter. The driver's side typically does not have this issue.
Are there any recalls for the C5 Corvette window motor?
No, there have been no official recalls or Technical Service Bulletins (TSBs) issued by GM or the NHTSA for the window motor or regulator on 1998-2004 Corvettes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10344131 15781690
Fits all 1998, 1999, 2000, 2001, 2002, 2003, and 2004 Chevrolet Corvette models. Sold as a complete motor and regulator assembly. Left (Driver) and Right (Passenger) side specific.
