Chevrolet Impala Ignition Control Module Guide (2000-2005)
Solve stalling, misfires, and no-start problems by understanding the ignition control module in your 2000-2005 Impala.
- A classic symptom of failure is the engine stalling after it warms up, often refusing to restart until it cools down.
- This is a simple DIY replacement. The most critical step is applying new thermal paste to the back of the module to prevent overheating.
- For reliability, choose a premium brand like ACDelco or Delphi, as they are original equipment suppliers.
- Confirm the ignition switch recall (NHTSA 14V400) has been addressed, as its symptoms can mimic a failed ICM.
Is Your Impala's Ignition Module Failing?
A bad ignition control module (ICM) on the 2000-2005 Impala, especially those with the 3.8L V6 engine, has very distinct symptoms. The most common sign is the engine stalling after it gets hot. 🎬 Watch: Learn how to test for common ICM failure symptoms. You might be driving normally, and then the engine shuts off for no reason. It often won't restart until it has cooled down for a while.
Other Common Symptoms:
- Engine Misfires: The car may shake, hesitate, or stumble, especially when you accelerate. This often triggers the Check Engine Light.
- Check Engine Light: A failing ICM will almost always turn on the check engine light. Common codes include P0300 for a random misfire. 🎬 See how to diagnose P0300 codes on the 3.8L engine.
- Crank, No Start: You'll hear the engine turning over (cranking), but it won't fire up and run.
- Reduced Power: The car will feel sluggish and weak because the cylinders aren't all firing correctly.
Important Recall Information
Before replacing your ICM, be aware of a major safety recall (NHTSA Campaign ID: 14V400) for all 2000-2005 Impalas. The issue involves the ignition switch, where a heavy key ring could cause the key to turn out of the 'run' position while driving, shutting off the engine. This mimics a bad ICM. Contact a GM dealer with your VIN to see if this recall has been performed on your vehicle.
🎬 Watch: Step-by-step guide to replacing the ignition lock cylinder.Choosing the Right Aftermarket Ignition Module
When buying a new aftermarket ICM, quality matters. This part fails from heat, so a well-made part is crucial for a long-lasting repair. Aftermarket brands generally fall into three tiers.
Brand Quality Tiers

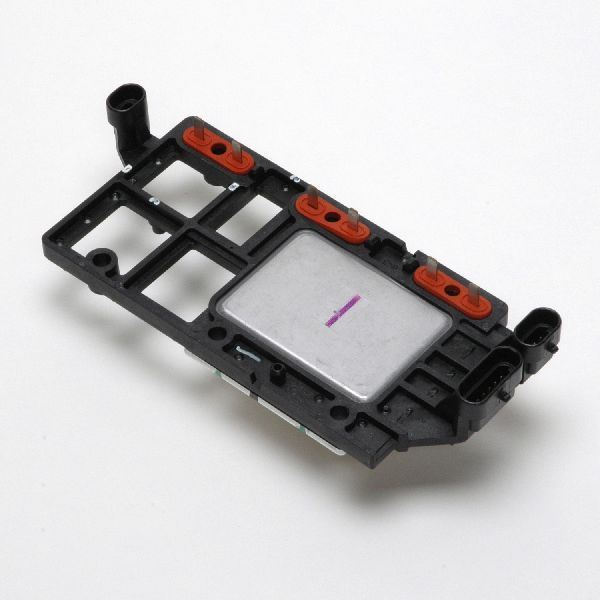

- Premium (OEM-Equivalent): Brands like ACDelco and Delphi are top-tier choices. ACDelco is GM's own parts brand, and Delphi was the original equipment manufacturer for many GM electronics. Choosing one of these gives you the highest confidence in fit, function, and durability, as they are made to the original factory specifications.
- Quality Aftermarket: Standard Ignition (Standard Motor Products or SMP) is a highly respected aftermarket brand known for producing reliable electronic components that are a solid alternative to OEM parts.

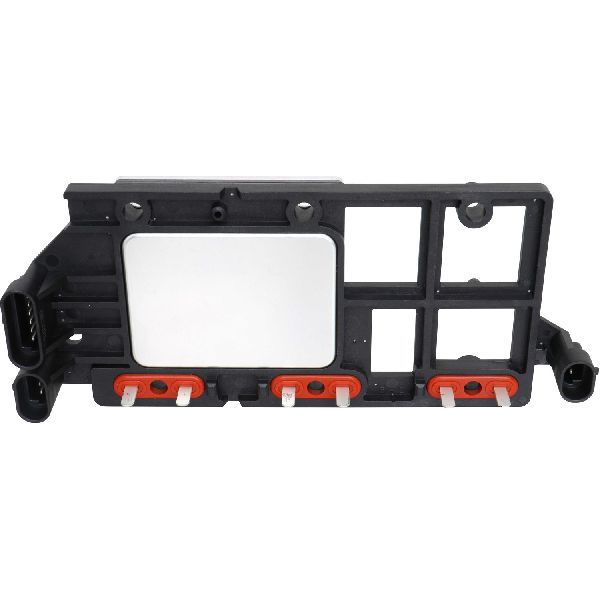

- Economy: Brands like Holstein offer a budget-friendly price and often come with a good warranty. While they claim to meet OE standards, for a critical part like an ICM that is prone to heat failure, investing in a premium or quality aftermarket brand is often a safer long-term decision.
Pro Tip: Don't Forget Thermal Paste!
The new ignition module must have a layer of thermal paste applied to its metal base before installation. This paste helps transfer heat away from the module to its mounting bracket, preventing it from overheating and failing prematurely. Most new modules come with a packet of this paste. Do not skip this step.
Cost of Replacing the Ignition Control Module
Replacing the ICM is a common repair. Below are the estimated costs you can expect. Prices vary based on your location and the brand you choose.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $105.54 - $284.24 |
| Shop Labor | $70 - $120 |
| Total Estimated Cost | $175 - $405 |
Frequently Asked Questions
How difficult is it to replace the Impala's ignition module?
This is a beginner-friendly DIY job that takes less than an hour. It involves removing the three ignition coils (held by 5.5mm bolts) to access the module underneath. The only tools needed are a basic socket set and a screwdriver.
Where is the ignition control module located?
It is mounted on a bracket directly under the three ignition coil packs on top of the engine. You cannot miss it once the coils are removed.
Can I drive with a bad ignition control module?
It is not recommended. The engine can stall at any time, which is a major safety risk, especially in traffic or while turning, as you will lose power steering. Driving with a constant misfire can also damage other expensive components like the catalytic converter.
What causes the ignition module to fail?
Heat is the primary cause of failure. The module's location in the hot engine bay, combined with the heat it generates itself, eventually causes the internal electronics to break down. This is why stalling often happens only when the engine is fully warmed up.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10469470 D1940A
The ignition module is located under the three coil packs. The assembly is secured by the coil pack bolts, and the module itself has a 17-pin male terminal connector.
