Chevrolet Impala Ignition Lock Cylinder Guide for 2000-2005 Models
Having trouble starting your Impala or dealing with a flashing security light? Your ignition lock cylinder might be the problem.
- The most common failure symptom is the car not starting and the 'SECURITY' light flashing, caused by the Passlock anti-theft system.
- Replacing the lock cylinder is a manageable DIY job, but the 30-minute security relearn procedure is mandatory for the car to start afterward.
- A major GM ignition recall for this Impala addressed the key and switch, not the common Passlock sensor failure in the lock cylinder.
- You will likely need to use the new keys that come with the aftermarket cylinder, resulting in separate keys for the ignition and doors.
Is Your Impala's Ignition Lock Cylinder Failing?
A bad ignition lock cylinder in a 2000-2005 Chevrolet Impala often causes very specific and frustrating problems. Because this part includes the Passlock anti-theft sensor, symptoms are often electrical, not just mechanical. Understanding these signs can help you figure out if the lock cylinder is the source of your trouble.
Common Failure Symptoms:
- Car Won't Start, Security Light Flashes: This is the most common symptom. You'll turn the key, the engine may crank for a second and then die, and the "SECURITY" light on the dashboard will start flashing. This happens because the worn sensor in the lock cylinder isn't communicating correctly with the car's computer, triggering the anti-theft system to cut the fuel. 🎬 Watch: Troubleshooting the Passlock system when your car won't start.
- Key is Hard to Turn or Gets Stuck: Over time, the mechanical parts of the cylinder wear out. You might find it difficult to insert, turn, or remove the key. Sometimes, wiggling the key is the only way to get it to work, but this is a temporary fix.
- Intermittent Starting Issues: The problem might not happen every time. It may occur more frequently when running errands with many stops, or it might seem completely random. This unpredictability points to a failing electronic sensor within the cylinder.
Known Issue: The GM Passlock System
The 2000-2005 Impala uses the GM Passlock II anti-theft system, which is notorious for causing starting issues as the vehicle ages. The problem is almost always the sensor inside the ignition lock cylinder, not the key itself. When you replace the cylinder, you MUST perform a "security relearn" procedure, which takes about 30 minutes. If you don't, the car will not start.
Choosing the Right Aftermarket Ignition Lock Cylinder
When your original lock cylinder fails, you have several aftermarket options. Here’s a breakdown of the brands available to help you choose.
Brand Quality Tiers
- Premium Tier (ACDelco, Standard Ignition): ACDelco is GM's original parts brand, so their replacements are considered the benchmark for fit and function. Standard Motor Products (Standard Ignition) is a highly respected aftermarket manufacturer known for producing quality parts that meet or exceed original specifications. These brands are your best bet for longevity and reliability.
- Mid-Grade Tier (Dorman): Dorman is a popular choice that offers a good balance of quality and value. They often re-engineer parts to fix common factory flaws. For the Impala, Dorman offers several kits, some of which include new keys. They are a solid, reliable choice for most owners.
- Value Tier (Replacement, Skyward, True Tech): These brands provide a budget-friendly solution to get your car back on the road. They are functional replacements but may not have the same long-term durability or precision feel as the premium brands. They are a good option if cost is your primary concern.
| Brand | Typical Price Range | Notes |
|---|---|---|
| ACDelco | $90 - $190 | OEM-level quality, often sold without new keys. |
| Standard Ignition | $80 - $150 | Professional-grade, known for durability. |
| Dorman | $50 - $100 | Good value, often includes keys and instructions. |
| Replacement / Value Brands | $37 - $60 | Most affordable option. Quality can be inconsistent. |
Installation and Security Relearn
Replacing the lock cylinder is a DIY-friendly job that takes about an hour. You will need to remove the radio and surrounding trim to access it. 🎬 See this step-by-step guide to replacing the lock cylinder. The most critical part of the job is the 30-minute security relearn procedure. It involves cycling the key multiple times in 10-minute intervals to sync the new sensor with your car's computer. Do not skip this step.
Frequently Asked Questions
Do I need a special tool to replace the ignition lock cylinder?
No special tools are required, but you will need basic hand tools like a 7mm socket, a 10mm socket, and trim removal tools to take the dash apart. The most important part of the process is patience for the 30-minute relearn procedure, which requires no tools at all.
Was there a recall for the ignition lock cylinder on my Impala?
There was a major GM recall (NHTSA Recall No. 14V355, GM No. 14299) for the 2000-2005 Impala related to the ignition, but it was for the ignition switch and key, not the lock cylinder itself. The recall addressed the key unintentionally moving from the "run" position. The fix involved providing new key inserts or covers. This recall does not fix a faulty Passlock sensor within the lock cylinder.
Can I reuse my old keys with the new lock cylinder?
Generally, no. Most aftermarket lock cylinders come with a new set of keys. This means you will have one key for the ignition and a separate key for your doors and trunk. Some owners don't mind this, but if you want a single key, a locksmith may be able to re-pin the new cylinder to match your old key, though this adds cost.
What is the 30-minute security relearn procedure?
After installing the new lock cylinder, you must perform this procedure: 1. Turn the key to ON (without starting the engine). The SECURITY light will be on. 2. Wait about 10 minutes until the SECURITY light turns off. 3. Turn the key to OFF for 10 seconds. 4. Repeat steps 1-3 two more times for a total of three cycles. After the third cycle, the car will have learned the new sensor and should start normally.
🎬 Watch: A quick walkthrough of the 30-minute security reset.Helpful Videos
Technical Specifications
OEM Part Numbers: 12458191 15822350 25832354 19168637

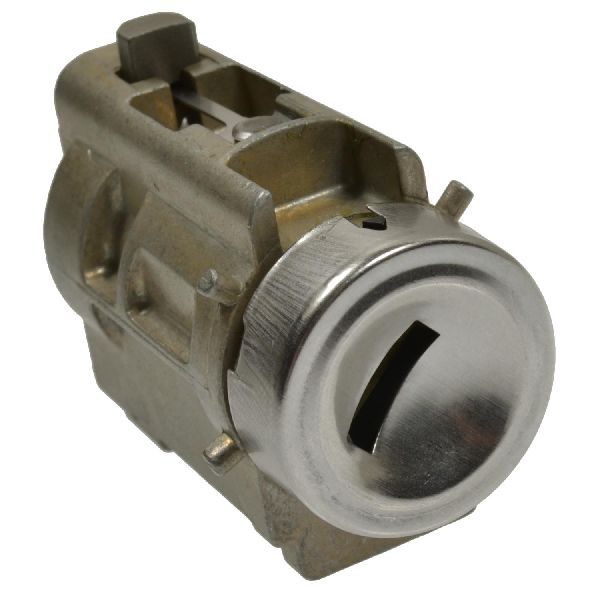

Dash-mounted ignition lock cylinder with integrated Passlock II anti-theft sensor. Replacement requires a 30-minute security relearn procedure.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
