1998-2006 Lincoln Navigator A/C Clutch Cycle Switch: A Complete Guide
If your Navigator's A/C is blowing warm or not working at all, this small, easy-to-replace switch could be the problem.
- A bad A/C clutch cycle switch is a common cause for warm air or a non-working A/C compressor on the 1998-2006 Navigator.
- Replacement is very easy for a DIYer and does not require evacuating the A/C system, as a Schrader valve prevents refrigerant loss.
- Before replacing the switch, verify the refrigerant level is correct and check the A/C clutch relay in the fuse box.
- For best results and longevity, Motorcraft is the recommended brand, but aftermarket options from Four Seasons or GPD can provide significant savings.
Is Your Navigator's A/C Failing? It Could Be This Switch.
If the air conditioning in your 1998-2006 Lincoln Navigator is blowing warm air, working intermittently, or the compressor isn't turning on at all, a faulty A/C clutch cycle switch is a common and inexpensive part to investigate. This component tells your A/C compressor when to turn on and off, and its failure can mimic several other, more expensive A/C problems. Fortunately, for most DIY mechanics, it's a very simple part to replace.
Symptoms of a Failing A/C Clutch Cycle Switch
A bad A/C clutch cycle switch can cause several distinct symptoms. Because these signs can also point to other issues like low refrigerant or a bad compressor, it's important to diagnose the problem correctly.
🎬 Watch: How to test your A/C clutch cycling switch- A/C Blows Warm Air: This is the most obvious sign. If the switch fails in the 'off' position, it will never tell the compressor to engage, and you'll only get warm air from the vents.
- Compressor Clutch Won't Engage: Look at the front of the A/C compressor with the engine running and A/C on. The outer plate (the clutch) should be spinning with the pulley. If only the pulley is spinning, the clutch is not engaged. A bad switch is a primary reason for this failure.
- Intermittent Cooling (Rapid Cycling): The A/C might blow cold for a few moments, then warm, then cold again. You may hear a distinct clicking sound from the engine bay as the compressor clutch engages and disengages too frequently. This happens when the switch sends erratic signals.
Choosing the Right Aftermarket Switch for Your Navigator
When replacing the A/C clutch cycle switch, you have a choice between the original equipment (Motorcraft) and several aftermarket brands.
| Brand Tier | Brands | Quality & Fit Assessment |
|---|---|---|
| OEM / Top Tier | Motorcraft | As the original Ford part, Motorcraft offers guaranteed fit, function, and the highest likelihood of long-term reliability. Many technicians recommend sticking with OEM for critical A/C components to avoid future issues. |
| Aftermarket / Value Tier | Four Seasons, Global Parts (GPD) | These brands offer a cost-effective alternative. Forum discussions show mixed reviews for Four Seasons, with some users experiencing early failures and others having no issues for years. In some cases, aftermarket parts may even be physically identical to the Motorcraft part, made in the same factory. GPD is a large aftermarket supplier that states its parts are durability tested. These are viable options if budget is the primary concern. |
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch located on my Navigator?
The switch is located on the A/C accumulator (or receiver/drier). This is a metal cylinder, typically black or silver, found on the passenger side of the engine bay near the firewall. The switch is screwed into a port on the accumulator and has an electrical connector attached to it.
Do I need to drain the refrigerant to replace this switch?
No. On 1998-2006 Navigators, there is a Schrader valve (like a tire valve) in the port underneath the switch. When you unscrew the old switch, the valve will seal the system, preventing refrigerant from escaping. You may hear a brief hiss of trapped pressure, which is normal. This makes it a quick and easy DIY job.
🎬 Watch this simple walkthrough to replace your A/C pressure switchMy new switch didn't fix the problem. What should I check next?
If a new switch doesn't solve your A/C issue, the problem lies elsewhere. The most common culprits are: 1) Low refrigerant level due to a leak. 2) A bad A/C compressor relay (check the fuse box). 3) A worn-out or failed A/C compressor clutch coil. 4) A problem with the climate control head unit inside the cabin.
Are there any recalls for this part on my Navigator?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or widespread Technical Service Bulletins (TSBs) for the A/C clutch cycle switch on the 1998-2006 Lincoln Navigator. A/C-related bulletins for Navigators primarily concern much newer model years.
Helpful Videos
Technical Specifications

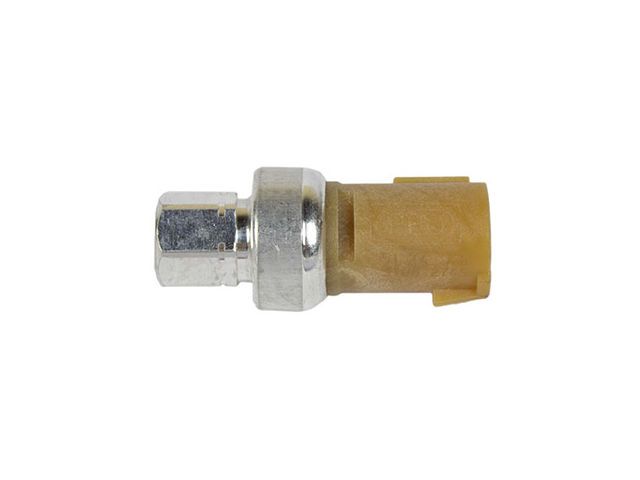

OEM Part Numbers: 5L2Z19D594AA
The switch for this Navigator generation is typically a 2-pin switch with a round electrical connector that screws onto the A/C accumulator.
