Volkswagen Passat Automatic Transmission Mount Guide (1998-2006)
Stop the clunks and vibrations in your B5 Passat by choosing the right replacement transmission mount.
- Symptoms include clunking noises when shifting, excessive vibration, and rough shifting feel.
- Always replace transmission mounts in pairs to ensure even support and prevent premature failure.
- For best results and to avoid new vibrations, choose OE-equivalent brands like Corteco, CRP, or Vaico over budget brands.
- Check that the underbody heat shields are in place to protect the new mounts from premature heat damage.
Is Your Passat's Transmission Mount Failing?
The transmission mounts on the B5/B5.5 Passat are solid rubber and located toward the rear of the transmission, connecting it to the subframe. Unlike the fluid-filled engine mounts which can leak when they fail, transmission mounts fail by cracking or collapsing. Because they are close to the exhaust, heat shields are used to protect them, but the constant heat and vibration eventually take their toll. When a mount fails, the transmission can move excessively, leading to a number of noticeable symptoms.
Symptoms of a Bad Transmission Mount:
🎬 Watch: 7 common signs of a failing transmission mount- Clunking Noises: A distinct "clunk" or "thump" when you shift gears (especially into Drive or Reverse), accelerate hard, or brake suddenly is the most common sign. This is the sound of the transmission moving and hitting other parts.
- Excessive Vibration: You might feel vibrations through the floor, seats, or steering wheel, particularly when the car is idling or accelerating. A healthy mount absorbs these vibrations, so feeling them means the mount is likely worn out.
- Rough Shifting: While not as common, a severely failed mount can cause the transmission to misalign, potentially leading to rough or difficult gear shifts.
- Visible Wear: If you can inspect the mounts, look for deep cracks, tearing, or sagging in the rubber. Any visible damage is a clear sign that replacement is needed.
A Note on Recalls
There have been no direct recalls for the transmission mounts themselves on the 1998-2002 Passat. However, NHTSA recall 26E5 was issued for a potentially damaged underbody heat shield near the transmission. A damaged or missing heat shield can expose the mounts to excessive heat, causing them to fail prematurely. It's wise to ensure these heat shields are intact when replacing your mounts.
Choosing the Right Aftermarket Mount
When shopping for a new automatic transmission mount, you'll find several brands. They generally fall into a few quality tiers. For a daily-driven Passat, sticking to OEM-equivalent brands is highly recommended for longevity and to avoid introducing new vibrations.
Tier 1: OEM & OE-Equivalent
These brands are either the original suppliers to Volkswagen or produce parts to the exact same standards. They provide the best fit and performance, virtually identical to the part you'd get from a VW dealer.
- Corteco: Widely regarded as an OE supplier for many German vehicles, including Volkswagen. Choosing Corteco is often the safest bet for aftermarket quality that matches the original part.
- CRP (Rein): Another trusted OE-supplier brand that offers high-quality rubber and metal components for European cars.
- Vaico: A reputable German brand known for producing parts that meet or exceed OEM specifications.
Pro Tip: Brands like Corteco and CRP often manufacture the parts for Volkswagen. You can get the same quality as a genuine VW part without the dealership markup.
Tier 2: Quality Aftermarket
These brands are generally reliable and offer a good balance of price and quality. They may not be original suppliers, but they have a solid reputation.
- URO Parts: URO offers a wide range of European car parts. While some of their more complex parts have mixed reviews, simple components like solid rubber mounts are generally considered a decent budget-friendly option.
Tier 3: Economy Brands
These brands focus on being the lowest-cost option. While tempting, they often use harder rubber compounds or have less precise manufacturing, which can lead to a poor fit, increased cabin vibration, and a much shorter lifespan. Many professional mechanics and long-time VW owners advise against them.

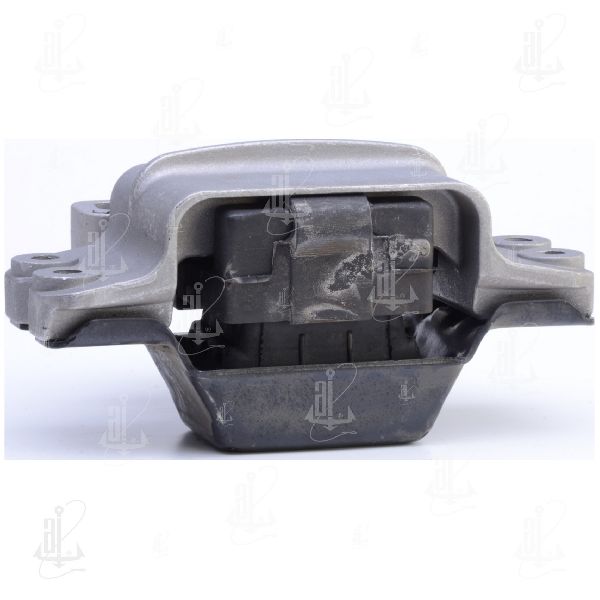

- Anchor, DEA, Westar: Forum discussions and reviews frequently mention issues with fitment and durability for these brands, sometimes causing more problems (like vibration) than the old, worn-out part they replaced.
Cost of Aftermarket Transmission Mounts
| Brand Tier | Example Brands | Estimated Price (Per Mount) |
|---|---|---|
| Tier 1 (OE-Equivalent) | Corteco, CRP, Vaico | $45 - $90 |
| Tier 2 (Quality Aftermarket) | URO Parts | $30 - $55 |
| Tier 3 (Economy) | Anchor, DEA, Westar, Pioneer | $25 - $40 |
Note: Your Passat has two automatic transmission mounts (left and right). It is highly recommended to replace them as a pair. Prices are estimates and may vary.
Frequently Asked Questions
Do I need to replace both transmission mounts at the same time?
Yes. It is strongly recommended to replace both the left and right mounts simultaneously. If one has failed, the other has been subjected to the same age and stress and is likely not far behind. Replacing only one can put extra strain on the new part and the remaining old mount.
Is this a difficult job to do at home?
For a DIY mechanic with the right tools, this is a manageable job. It involves safely lifting and supporting the vehicle, supporting the transmission with a jack, and removing a few bolts. Access can be tight, but it doesn't typically require major disassembly. The difficulty is moderate, and it might take 1-2 hours.
🎬 See this full walkthrough for diagnosing and replacing your mountsWill a new transmission mount fix my car's vibration?
If the vibration is caused by a failed transmission mount, then yes. However, vibrations can also be caused by bad engine mounts, worn CV axles, or unbalanced tires. It's common to replace the engine and transmission mounts as a set, as they all work together to keep your powertrain stable.
🎬 Learn how to diagnose your transmission mount for goodWhat are the OEM part numbers for the automatic transmission mount?
The common part numbers for the B5 Passat automatic transmission mount include 8D0399151M, 8D0399151J, 8D0399151R, and 8D0399151Q, among others. Always verify the part number with your vehicle's VIN for a guaranteed fit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8D0399151M 8D0399151J 8D0399151R 8D0399151Q 8D0399151P 8D0399151N 8D0399151F
The 1998-2006 Passat uses two solid rubber-metal mounts for the automatic transmission, one on the left and one on the right side of the subframe.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
