A Guide to Replacing the Starter on a 1998-2012 Toyota Land Cruiser
Everything a Land Cruiser owner needs to know before tackling a starter replacement.
- Starter replacement on the 4.7L V8 is a very difficult job because it is located under the intake manifold.
- Due to the high labor cost, using a top-quality OEM Denso starter is strongly recommended to avoid repeat failures.
- The most common failure is worn solenoid contacts, causing a 'click-no-crank' symptom.
- While the starter is out, it is wise to also replace intake gaskets, knock sensors, and coolant hoses in the engine valley.
Understanding Starter Failure in the Land Cruiser
The starter in the 1998-2012 Land Cruiser is known to be very durable. Many last for over 200,000 miles. However, when they do fail, it's often not the motor itself but the electrical contacts inside the starter solenoid. These contacts wear down over time, leading to common symptoms. Because the starter is so difficult to access, it's important to be sure it's the problem before starting the repair.
Symptoms of a Failing Starter:
- Single Loud "Click": You turn the key, hear one click from the engine bay, but the engine doesn't crank. This is the most common sign of worn starter contacts.
- Intermittent Starting: The vehicle starts fine sometimes, but other times it only clicks. This happens as the contacts wear and only make a connection sometimes.
- No Sound at All: If the battery is good but you get no sound when turning the key, the starter or its relay could have failed completely. Sometimes this can be a simpler issue like a bad starter relay in the fuse box. 🎬 Watch: How to troubleshoot the relay before pulling the starter.
- Slow Cranking: If the engine turns over much slower than usual, it could be a sign of a weak starter motor, though this can also be caused by a weak battery.
A Word of Warning: Replacement is a Major Job
On the 4.7L V8 (2UZ-FE) engine used in the 1998-2012 Land Cruiser, the starter is not on the side of the engine. It is buried deep in the engine valley, underneath the entire intake manifold. Replacing it is a very labor-intensive job that requires removing many parts from the top of the engine. This is not a quick or easy repair for a beginner.
🎬 See this step-by-step guide to the 4.7L starter removal process.Choosing the Right Aftermarket Starter
Because the labor is so difficult, choosing a high-quality starter is critical. You do not want to do this job twice. While several brands are available, they fall into different quality tiers.
Tier 1: OEM or OEM-Equivalent

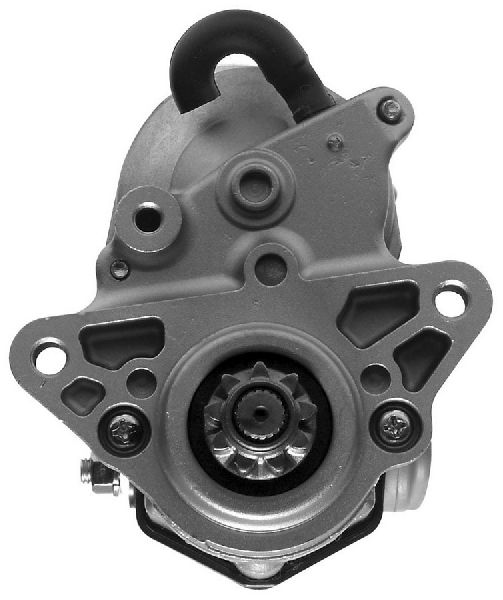

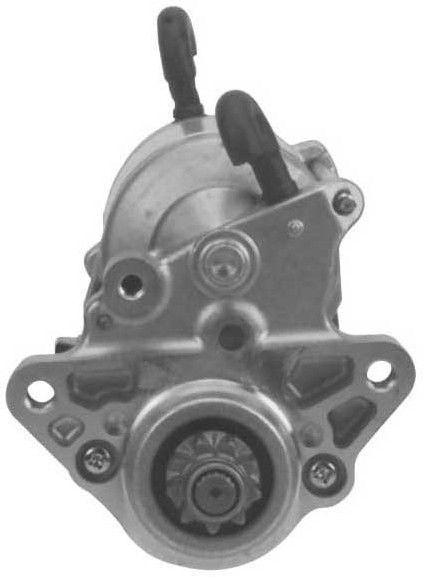

- Denso: Denso is the Original Equipment Manufacturer (OEM) for Toyota, meaning they made the starter that came in your Land Cruiser from the factory. A new or remanufactured Denso starter is widely considered the best and most reliable option. It is the safest choice to ensure you won't have to replace it again soon.
Tier 2: Reputable Aftermarket

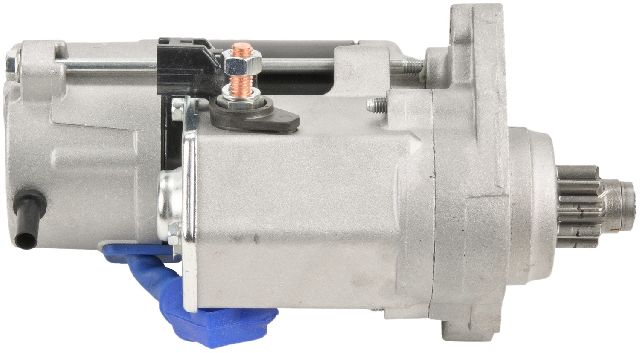

- Bosch: Bosch is a major, well-respected parts manufacturer. While their products are generally high-quality, for this specific application, most experts and owners recommend sticking with the OEM Denso. A Bosch starter is a viable option, but Denso is preferred.
Tier 3: Economy Brands

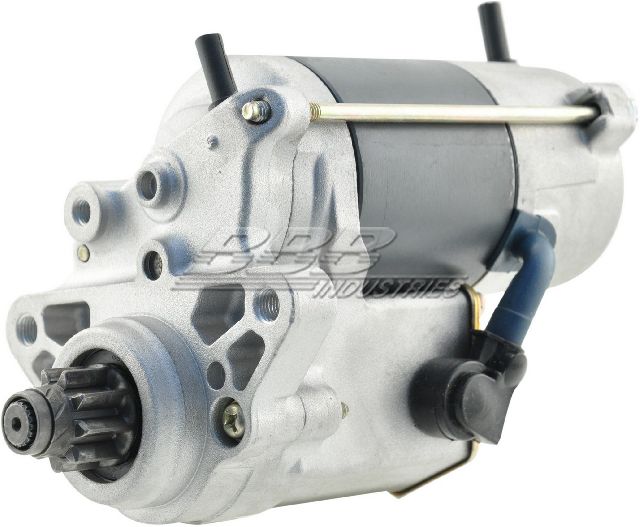

- Remy & BBB Industries: These brands offer more budget-friendly options. Remy appears to be owned by BBB Industries. Forum discussions show mixed results, with some users experiencing premature failures. Given the extreme difficulty of this repair, saving a small amount on a lower-tier part is not recommended. A part failure would mean repeating a very expensive and time-consuming job.
Pro Tip: Replace Other Parts While You're In There
Since the intake manifold must be removed, this is the perfect time to replace other inexpensive parts in the engine valley. This includes the intake manifold gaskets, knock sensors and their wire harnesses, and various coolant bypass hoses and gaskets. 🎬 Watch: Replacing the starter on 2005-2011 models with air injection. Replacing these "while you're in there" can prevent future leaks and save you from having to do another big repair down the road.
Cost to Replace a Land Cruiser Starter
The cost can vary significantly based on who does the work and what parts are used. The high labor time is the biggest factor.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Remanufactured) Starter | $140 - $260 (plus core charge) |
| New Aftermarket Starter | $121 - $298 |
| Shop Labor | $375 - $600+ |
| Total Professional Job | $515 - $860+ |
Frequently Asked Questions
Can I replace just the starter contacts?
Yes. The common failure point is the copper contacts in the solenoid, which can be purchased as a small, inexpensive kit. However, you still have to perform the entire difficult removal process to get the starter out. If you are doing the work yourself, this is a very cost-effective repair. If you are paying a shop, it makes more sense to replace the entire starter assembly.
Is a remanufactured starter okay?
Yes, as long as it's a quality unit. A remanufactured starter from Denso (the OEM) or Toyota is an excellent choice and often more readily available than a brand new one. The key is the quality of the rebuilder. An OEM remanufactured part is almost always better than a new part from an economy brand.
Why is the labor so expensive?
The starter is located under the intake manifold in the valley of the V8 engine. Mechanics must disconnect fuel lines, drain some coolant, and remove the entire air intake system just to access the starter. This process takes several hours, which is why the labor cost is high.
Are there any recalls on the starter?
No. There are no recalls or technical service bulletins (TSBs) from Toyota or the NHTSA specifically for starter motor failure on the 1998-2012 Land Cruiser.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28100-50101-84 28100-50101 28100-50070 28100-50040 28100-50091
Fits 1998-2012 Toyota Land Cruiser with 4.7L 2UZ-FE V8 engine. The starter is typically a 12V, 2.0kW gear reduction unit.
