Ford F-350 Alternator Guide: 1999-2003 Models
Keep your Super Duty's electrical system running strong by choosing the right new aftermarket alternator.
- For 7.3L diesel models, always replace both batteries at the same time to prevent burning out a new alternator.
- Before replacing the alternator, inspect the wiring harness and connectors, as corrosion is a common point of failure on these trucks.
- A simple voltage test with a multimeter can confirm if your alternator is bad; you should see 13.5-14.7 volts at the battery with the engine running.
- A critical safety recall (09V399000) exists for a faulty speed control switch that can cause a fire; ensure this has been addressed on your vehicle.
Is Your F-350's Alternator Failing?
When an alternator starts to go bad, it gives you some clear warning signs. On these heavy-duty trucks, especially the 7.3L Power Stroke models, a weak alternator can even cause engine running problems. Don't ignore these symptoms, as a complete failure can leave you stranded.
Common Symptoms:
- Dim or Flickering Lights: You might notice the headlights and dash lights are dimmer than usual, or they flicker and change brightness as the engine RPM changes.
- Battery Warning Light: A battery-shaped light on your dashboard is the most direct indicator that your charging system has a problem.
- Whining or Grinding Noise: A high-pitched whine or a grinding sound from the front of the engine that changes with RPM often points to bad bearings inside the alternator.
- Weak or Dead Battery: If you need to jump-start your truck often, the alternator is likely not recharging the batteries properly. On diesel models, it's critical to replace both batteries at the same time to avoid straining a new alternator.
- Slow Accessories: Power windows that move slowly or windshield wipers that seem sluggish are signs of low electrical power.
Pro Tip: Test It Yourself
You can do a quick check with a simple multimeter. With the engine running, touch the multimeter's probes to the battery terminals. A healthy alternator should produce a reading between 13.5 and 14.7 volts. If you see a number closer to 12 volts or less, the alternator is not charging.
🎬 Watch this complete guide to diagnosing and replacing your alternator.Choosing a New Aftermarket Alternator

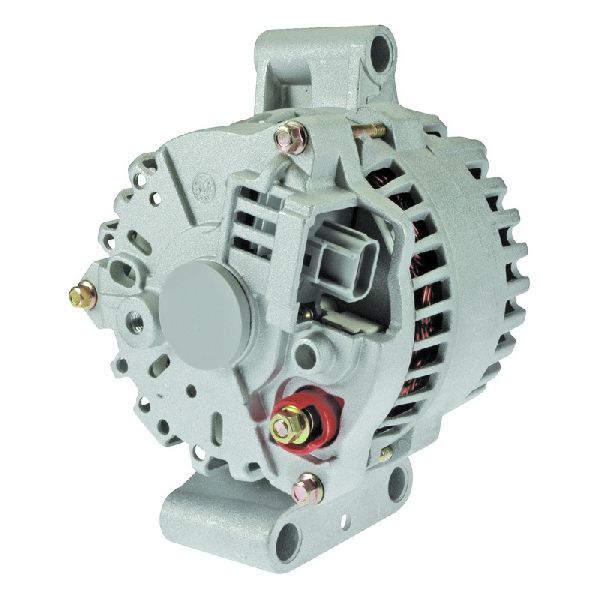

When replacing your alternator, you don't have to buy an expensive OEM part from the dealer. Aftermarket brands offer a good balance of quality and price. For your 1999-2003 F-350, brands like MPA and WAI Global are common choices.
- MPA (Motorcar Parts of America): Sold under the 'Quality-Built' name, MPA offers new and remanufactured alternators that are designed to meet or exceed original specifications. They are a common, reliable choice found in many auto parts stores.
- WAI Global: WAI is known for producing 100% new alternators, not remanufactured ones. Some units even come with a test result sheet in the box, which shows it was checked before shipping. However, some user reviews in forums mention issues with noise or lower-than-advertised amperage, so quality can be inconsistent.
Aftermarket parts can be just as durable as OEM parts but are often more affordable. For a work truck like the F-350, a quality new aftermarket unit provides excellent value.
Diesel Owners: Check Wires First!
On 7.3L Power Stroke engines, charging problems are often caused by bad wiring, not the alternator itself. Before you replace the part, inspect the small electrical connector on the alternator and the main power wire. These are known to corrode or burn out, causing a no-charge situation that can be misdiagnosed as a bad alternator.
🎬 See how to fix a flickering battery light on your dash.Cost of Replacing Your Alternator
Here is a general cost breakdown for a 1999-2003 Ford F-350. Prices can vary based on your engine and location.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Alternator | $112 - $162 |
| Shop Labor | $130 - $220 |
| Total Estimated Cost | $242 - $382 |
Frequently Asked Questions
Is it hard to replace the alternator on a 1999-2003 F-350?
No, it is a reasonably easy job for someone with basic mechanic's tools. The alternator is located at the top of the engine and is easy to access. The process involves disconnecting the batteries, releasing the serpentine belt tension, removing a few bolts, and swapping the part.
🎬 Follow this step-by-step video to change your alternator yourself.Do I need a special alternator for the diesel engine?
Yes, make sure you buy the correct alternator for your specific engine (e.g., 7.3L Power Stroke, 5.4L V8, or 6.8L V10). The diesel trucks have a demanding electrical system with two batteries, and using the correct, high-amperage alternator is critical.
Why did my new alternator fail after a few months?
If you have a diesel F-350, the most common reason for premature alternator failure is not replacing both batteries at the same time. If one battery is old and one is new, the alternator works overtime trying to equalize them, causing it to burn out. Also, check for corroded battery cables and grounds.
Are there any recalls I should know about?
Yes, there is a major safety recall (NHTSA ID: 09V399000) for these trucks involving the speed control deactivation switch. This switch can leak brake fluid, overheat, and potentially cause a fire, even when the truck is parked. This is unrelated to the alternator but is a critical safety repair that should be checked.
Helpful Videos
Technical Specifications
Varies by engine. The 7.3L Power Stroke diesel typically uses a 110-amp alternator from the factory, while gas engines may use a 95-amp or 105-amp unit. Higher amperage aftermarket options are available and recommended for trucks with accessories like plows or winches.
