Engine Valve Cover Gasket Set Guide for 1999-2003 Lexus RX300
Stop that burning oil smell and fix common leaks on your RX300's 1MZ-FE engine.
- A burning oil smell is the most common sign of a failing valve cover gasket on the RX300.
- The rear gasket is significantly harder to replace than the front, requiring removal of the intake plenum.
- Always replace the spark plug tube seals, PCV valve, and intake gaskets at the same time for a complete repair.
- High-quality aftermarket brands like Fel-Pro and Victor Reinz are reliable and cost-effective alternatives to OEM parts.
Is Your RX300 Leaking Oil? Symptoms of a Bad Valve Cover Gasket
A leaking valve cover gasket is a very common issue on the Lexus RX300's 1MZ-FE engine as it ages. The signs are usually easy to spot. If you notice any of these symptoms, it's probably time for a replacement.
- Burning Oil Smell: This is the most common symptom. When the gasket fails, oil drips onto the hot exhaust manifolds below, creating a distinct and unpleasant burning smell that you may notice inside or outside the car, especially after parking.
- Visible Oil Leaks: You may see oil residue and grime caked onto the valve covers or the side of the engine. The rear valve cover, near the firewall, is a frequent source of leaks and can be harder to see without a mirror and flashlight.
- Oil in Spark Plug Wells: If the spark plug tube seals fail, oil will pool in the spark plug wells. This can lead to a rough running engine or misfires. You might get a check engine light with misfire codes like P0300, P0301, etc.
- Low Engine Oil: A significant leak will cause your engine oil level to drop over time, potentially triggering the low oil light on your dashboard. Driving with very low oil can cause serious engine damage.
A Note on the Rear Gasket
Replacing the valve cover gasket on the front cylinder bank (near the radiator) is straightforward. However, the rear bank (near the firewall) is much more difficult. It requires removing the intake plenum and several other components to gain access. This significantly increases the labor time and cost if you're having a shop do the work. Many DIY mechanics find this part of the job challenging.
Choosing the Right Aftermarket Gasket Set
For the 1999-2003 RX300, both OEM and high-quality aftermarket gaskets provide a reliable seal. The key is proper installation on a clean surface. Aftermarket brands offer excellent value and often come in complete kits.
Brand Quality Tiers
- Premium Aftermarket (Fel-Pro, Victor Reinz): Fel-Pro and Victor Reinz are well-regarded brands that often meet or exceed OEM quality. They are known for making durable gaskets that seal well. Many professional mechanics trust and use these brands for their reliability.
- OEM-Equivalent (Beck Arnley, Ishino): Beck Arnley often repackages parts from the original equipment manufacturer, so you may receive a genuine Toyota/Lexus part in their box. Ishino is also known as an OEM supplier for many Japanese vehicles. These are excellent choices for those who prefer OEM quality.
- Standard Aftermarket (DNJ Engine Components, DJ Rock): These brands offer a more budget-friendly option. While they can provide a good seal, some users prefer to stick with premium brands for a labor-intensive job like the rear valve cover gasket to ensure longevity.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Gaskets Only) | $48 - $65 |
| New Aftermarket Set | $25 - $50 |
| Shop Labor | $330 - $560 |
Pro Tip: What Else to Replace
Since the job requires significant disassembly (especially for the rear gasket), it's smart to replace a few other parts at the same time. Consider replacing the spark plugs, the PCV valve and its grommet, and the intake plenum gaskets. This saves you from paying for the same labor twice in the future.
Frequently Asked Questions (FAQ)
Do I need to use sealant (RTV) with the new gaskets?
Yes. A small dab of Form-in-Place Gasket (FIPG) or RTV sealant is required at the sharp corners where the timing cover meets the cylinder head. This is a critical step to prevent leaks. Some mechanics also apply a very thin layer in the gasket channel on the valve cover itself to help hold the gasket in place during installation, especially on the difficult rear cover.
Is there a recall for leaking valve cover gaskets on the RX300?
No, there are no specific recalls from the NHTSA for oil leaks related to the valve cover gaskets on the 1999-2003 Lexus RX300. This is considered a normal wear-and-tear maintenance item.
Can I just tighten the valve cover bolts to stop the leak?
It is generally not recommended. By the time the gasket is leaking, it has become hard and brittle. Tightening the bolts is unlikely to stop the leak and risks cracking the aging plastic or aluminum valve cover or stripping the bolts. The correct fix is to replace the gasket.
Do I have to replace the spark plug tube seals?
Yes, it is highly recommended. The gasket sets include new spark plug tube seals for a reason. The old seals become very hard and are often baked into the valve cover, but they can be carefully pried out. Skipping this step is a common cause of future oil leaks into the spark plug wells.
Technical Specifications
OEM Part Numbers: 11213-0A010 11213-20030 11214-0A010 11214-20030 11193-70010

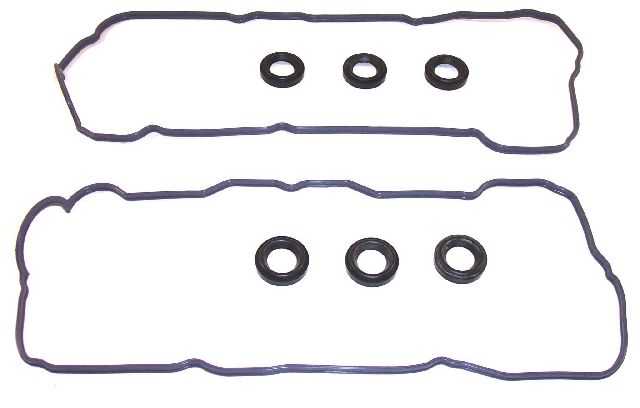

Fits the 3.0L 1MZ-FE V6 engine used in all 1999, 2000, 2001, 2002, and 2003 Lexus RX300 models. The set should include two valve cover gaskets (front and rear), six spark plug tube seals, and bolt grommets.
