Guide to Universal Joints for the 1999-2004 GMC Sierra 2500
Don't let a bad U-joint leave your heavy-duty truck stranded; here's what you need to know.
- Symptoms include squeaking, clunking when shifting, and vibrations at speed.
- Dana/Spicer is the OEM-quality choice; their non-greaseable joints are often recommended for durability.
- Verify your truck's exact configuration (2WD/4WD, driveshaft type) before ordering, as multiple U-joint sizes exist for this model.
- Replacing all U-joints on the driveshaft at once is recommended for long-term reliability.
Is Your Sierra 2500's U-Joint Failing?
Universal joints on heavy-duty trucks like the Sierra 2500 live a tough life. They handle immense torque and are exposed to the elements. When they start to wear out, they give clear warning signs. Ignoring them can lead to a complete failure, where the driveshaft can detach from the truck, causing significant damage and leaving you on the side of the road.
Common Failure Symptoms
- Squeaking or Chirping: A rhythmic squeak that gets faster as you drive is a classic sign of a dry, failing U-joint. This sound is often most noticeable at lower speeds. 🎬 Listen to the specific sounds of a failing Sierra U-joint.
- Clunking or Pinging: A distinct “clunk” or metallic “ping” when you shift from park into drive or reverse points to excessive play in a worn U-joint.
- Vibration: A vibration that you can feel through the floor or seats, especially at highway speeds, can be caused by a worn U-joint throwing the driveshaft out of balance.
- Grease Stripe: Sometimes you can see a line of grease slung onto the underbody of your truck, directly above the U-joint, 🎬 Watch this quick guide to identify a bad U-joint. which indicates the seal has failed.
Ordering the Right Part is Crucial
The 1999-2004 GMC Sierra 2500 was built with many different configurations. Your truck could have a one-piece or two-piece rear driveshaft, and be 2WD or 4WD. Each of these setups can use different U-joints. It is critical to verify your truck's specific drivetrain, wheelbase, and driveshaft type before ordering to avoid getting the wrong part. Measuring the old U-joint's cap diameter and width is the most reliable way to ensure a match.
Choosing the Right Aftermarket U-Joint
When replacing U-joints, you have a choice between sealed (non-greaseable) and greaseable designs. Original equipment U-joints are typically sealed. Many mechanics and experienced owners prefer high-quality sealed joints because they are solid-body and considered stronger. Greaseable joints require periodic maintenance but allow you to flush out contaminants and add fresh grease.
Brand Tiers for Your Sierra 2500
- Top Tier (OEM Quality): Dana/Spicer is widely considered the original equipment manufacturer for GM trucks and the highest quality option available. Many professionals recommend using their non-greaseable joints for maximum strength and longevity, just like the factory part.
- Mid-Tier (Quality Aftermarket): Moog and SKF are well-known aftermarket brands that offer a range of U-joints. Moog has a reputation for problem-solving designs, but some users report inconsistent quality with their U-joints compared to Spicer. Yukon Gear & Axle is another strong contender, often associated with heavy-duty and performance applications.
- Standard Tier (Value-Oriented): GMB is a common brand that provides a functional, budget-friendly replacement option for daily driving and standard use.
Pro Tip: When one U-joint fails, the others are likely not far behind. It is good practice to replace all the U-joints on a driveshaft at the same time. If you have a two-piece driveshaft, inspect the center support bearing for wear as well.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $20.60 - $237.75 |
| Shop Labor for Replacement (Single) | $200 - $450 |
Frequently Asked Questions
Are there any recalls for my Sierra 2500's U-joints?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for universal joints on the 1999-2004 GMC Sierra 2500.
Should I get greaseable or non-greaseable U-joints?
This is a matter of debate. Non-greaseable (sealed) joints, like those from Spicer, are solid and considered stronger by many experts because they don't have channels drilled for grease. Greaseable joints can have a longer life if maintained properly, but the grease fitting can be a weak point. For a heavy-duty truck, the strength of a solid, non-greaseable joint is often the preferred choice.
Can I replace a U-joint myself?
Yes, if you have the right tools and some mechanical skill. The process involves removing the driveshaft, then using a ball joint press or a large vise and sockets to press the old joint out and the new one in. It is important to mark the driveshaft's orientation before removal to maintain balance.

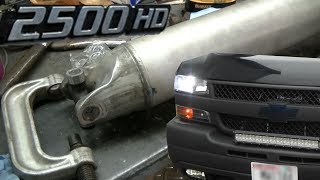

🎬 See a step-by-step walkthrough for replacing 2500HD U-joints.How many U-joints does my truck have?
It depends on your truck's configuration. A 2WD truck with a single driveshaft will have two U-joints. A truck with a two-piece driveshaft will have three. A 4WD truck will have additional U-joints on the front driveshaft. It's essential to inspect your vehicle to confirm the exact number you need.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12471502 12479126 26042371 12472409 12471503
U-joint selection is specific to driveshaft position (front/rear), driveshaft material (steel/aluminum), and 2WD vs. 4WD configuration. Common attachment methods include outside snap rings or straps. It is critical to measure bearing cap diameter and overall width to ensure correct fitment.
