Audi A3 Engine Coolant Temperature Sensor Guide (1999-2005)
Solving temperature gauge problems and poor performance in your 8L Audi A3 starts with this critical sensor.
- A faulty ECT sensor is a very common issue on 1999-2005 Audi A3s, causing erratic gauge behavior, poor performance, and a check engine light.
- The original black sensors are known to fail; the updated OEM part is green. If you have a black one, consider replacing it.
- This is an easy and inexpensive DIY replacement that can be done in under an hour with basic tools.
- Always replace the O-ring and retaining clip with the sensor to prevent future coolant leaks.
Is Your Audi A3 Temp Gauge Acting Up?
If you own a 1999-2005 Audi A3 (8L chassis), 🎬 See how to swap the sensor on an 8L chassis Audi. you might be familiar with strange temperature gauge behavior. The gauge might not move, shoot to maximum, or jump around randomly. Often, the root cause is a failing Engine Coolant Temperature (ECT) sensor. This sensor provides critical data to your engine's computer, and when it fails, it can cause more than just a faulty gauge reading. You might experience poor fuel economy, a rough idle, or even have trouble starting the engine.
A Common Failure Point
The original ECT sensors on these Audis were black and known for a high failure rate. The updated, more reliable OEM replacement part is green. If your car still has a black sensor, it's a good idea to replace it proactively. The sensor's O-ring can also fail, causing coolant leaks around the sensor housing.
Choosing the Right Aftermarket Sensor
When replacing your ECT sensor, you don't have to buy the expensive OEM part from a dealer. High-quality aftermarket brands often meet or exceed OEM specifications and can be a reliable, cost-effective choice. However, for critical electronic parts on German vehicles, it's wise to avoid the cheapest, no-name options, which can fail prematurely.
Here's a look at the available brands:
- Standard Ignition (SMP): A well-regarded aftermarket manufacturer that produces a wide range of sensors. They are often considered a reliable choice for direct-fit replacement parts.
- NGK (NTK): Known globally for spark plugs, their NTK sensor line is also built to meet or exceed OE specifications and undergoes rigorous testing.
- Motorad: This brand manufactures sensors designed to OEM specs in ISO TS16949 certified facilities, ensuring a focus on quality and accurate temperature readings.
Pro Tip: When you replace the sensor, it's also recommended to replace the small plastic retaining clip and the rubber O-ring. These are inexpensive parts that ensure a leak-free seal and secure fit.
Cost of Replacing the Engine Coolant Temperature Sensor
| Part Type | Price Range |
|---|---|
| New Aftermarket Sensor | $13.98 - $40.08 |
| New OEM Sensor | $35 - $60 |
| Shop Labor | $80 - $150 |
Frequently Asked Questions
Where is the ECT sensor located on a 1999-2005 Audi A3?
On engines like the 1.8T, 🎬 Watch this 1.8T sensor replacement guide for a step-by-step walkthrough. the sensor is typically located in a plastic coolant flange on the side or back of the cylinder head. It's held in place by a simple plastic clip, making it accessible for replacement.
Can I replace the ECT sensor myself?
Yes, this is a very DIY-friendly job. 🎬 Watch a quick demonstration of the sensor replacement process. The main steps involve removing the engine cover, locating the sensor, unplugging the electrical connector, and pulling a retaining clip. Some coolant will spill, so it's best to have the new sensor and clip ready to swap in quickly. The whole process can take less than an hour.
What are the trouble codes for a bad ECT sensor?
A failing ECT sensor will often trigger a Check Engine Light. Common codes include P0116 (Range/Performance Problem), P0117 (Circuit Low Input), and P0118 (Circuit High Input). A P0118 code can occur if the sensor is unplugged or has an internal open circuit, often causing the temperature reading to show an extreme cold value like -40°F.
Was there a recall for the Audi A3 coolant temperature sensor?
No specific recall was found for the engine coolant temperature sensor on the 1999-2005 Audi A3. However, there have been recalls and Technical Service Bulletins (TSBs) for cooling system components on other Audi models and years, including issues with coolant pumps and sensor O-rings causing damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 059919501A 078919501C 06A919501A

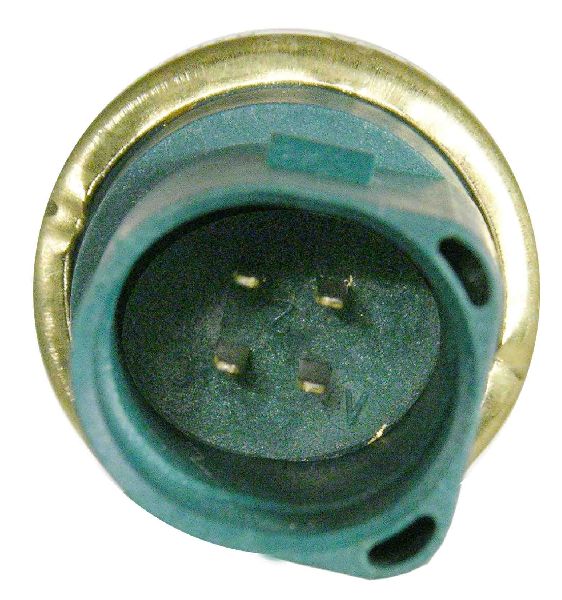

Typically a 4-pin sensor with a D-shaped connector. The original part was black, but the updated, more reliable version is green.
