A Guide to the Engine Intake Manifold Gasket for the 1999-2005 Buick Regal
Leaking intake manifold gaskets are a well-known issue on the Buick Regal 3.8L V6, but upgraded aftermarket parts can solve the problem for good.
- The factory plastic-framed intake gaskets are a common failure point; always upgrade to an aftermarket or revised OEM metal-framed gasket.
- Symptoms are often mistaken for a blown head gasket, but intake gasket failure is far more common on the 3.8L V6 engine.
- Coolant mixing with engine oil is a critical symptom that requires you to stop driving immediately to prevent engine seizure.
- While replacing the gaskets, it is highly recommended to also replace the plastic coolant elbows with aluminum versions.
A Notorious Problem for the Buick 3.8L V6
If you own a 1999-2005 Buick Regal, you have the reliable GM 3800 Series II V6 engine. While it's a strong motor, it has a widely recognized weak point: the factory lower intake manifold gaskets. The original gaskets were made with a plastic frame that can become brittle, crack, and warp from heat and exposure to coolant. This failure can lead to serious engine problems, but thankfully, modern aftermarket gaskets have solved this design flaw.
Symptoms of a Failing Intake Gasket
A bad intake manifold gasket can cause problems that are sometimes misdiagnosed as a more serious head gasket failure. Watch for these specific signs:
- Coolant Loss: You may notice your coolant level dropping with no visible puddle under the car. This could mean coolant is leaking internally.
- Engine Overheating: A significant coolant leak, internal or external, will cause the engine to run hot and potentially overheat.
- Milky Engine Oil: If coolant leaks internally and mixes with the engine oil, it will create a milky, frothy substance. You can often see this on the oil dipstick or under the oil filler cap. This is a serious condition that requires immediate attention to prevent catastrophic engine damage.
- Rough Idle and Misfires: A break in the gasket can create a vacuum leak, allowing extra air into the engine. This throws off the air-fuel ratio and can cause a rough idle, engine misfires, and hesitation.
- Check Engine Light: 🎬 See a visual guide on common intake manifold gasket symptoms. A vacuum leak will often trigger a Check Engine Light with lean codes (like P0171) or misfire codes (like P0300).
Known Issues and Recalls
While there are no specific recalls for the intake manifold gasket itself on the 1999-2005 Buick Regal, there was a safety recall (NHTSA Campaign 09V116000, 08V-118) for some models with the 3.8L V6 engine concerning the front valve cover gasket. This issue could cause oil to leak onto the hot exhaust manifold, creating a fire risk. This is a separate repair from the intake manifold gasket but highlights the importance of addressing any fluid leaks in the engine bay.

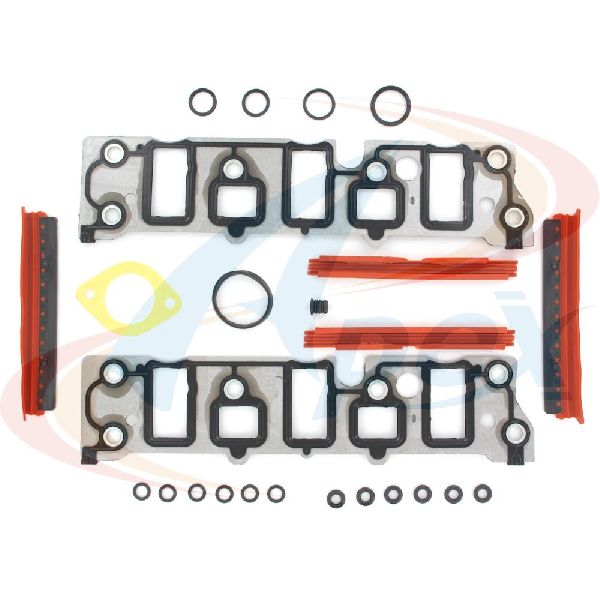

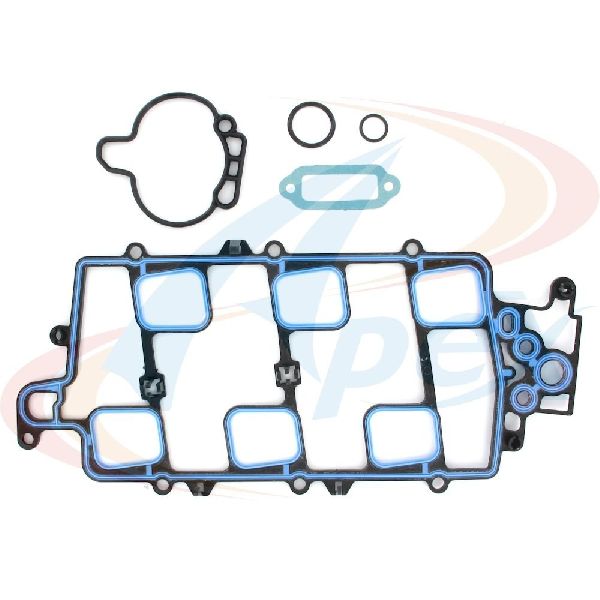

Choosing the Right Aftermarket Gasket Set
This is one of the rare cases where aftermarket parts are widely considered a significant upgrade over the original factory design. The key is to choose a set with a metal frame instead of the original-style plastic one.
- Good (Value Tier): Brands like Apex offer affordable replacement options. While functional, they may not have the same long-term durability as premium brands. For a vehicle you plan to keep for only a few more years, this can be a cost-effective choice.
- Better (Mid-Grade): Brands such as Victor Reinz and Dorman are popular choices. Dorman, in particular, is known for its "problem-solver" parts and offers redesigned components that directly address the original factory flaws. Many owners have had success with these brands.
- Best (Premium Tier): Gasket sets from Cometic Gasket and the premium lines from brands like Fel-Pro (e.g., PermaDryPlus MS98014T) are top-of-the-line choices. These gaskets often feature robust aluminum frames and high-quality sealing materials designed to provide the longest service life. The updated GM OEM aluminum-framed gaskets are also an excellent choice.
What Else Should I Replace?
Since this repair requires significant labor, it's smart to replace a few other inexpensive parts at the same time. Most mechanics recommend replacing the two plastic coolant elbows with new aluminum versions, as the originals are also prone to cracking. It's also a good time to install a new thermostat and change the engine oil and coolant.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket Gasket Set | $15 - $170 |
| New OEM Gasket Set (Updated Design) | $60 - $100 |
| Shop Labor | $329 - $483 |
| Total Professional Repair | $688 - $1,133 |
Frequently Asked Questions
Why do these gaskets fail so often on the Buick Regal?
The original gaskets used a plastic frame that sits between metal engine components that expand and contract with heat. Over many heat cycles and constant exposure to hot coolant, the plastic becomes brittle and cracks, leading to leaks.
🎬 Watch a detailed breakdown of why these 3800 gaskets fail.What is included in a typical intake manifold gasket set?
A lower intake manifold gasket set typically includes the main gaskets that seal the manifold to the cylinder heads, as well as end seals for the front and back of the manifold valley. Some premium kits, like the Fel-Pro MS98014T, include everything needed for the job, including RTV sealant and sometimes even replacement bolts.
Can I reuse my old intake manifold bolts?
While some DIY mechanics have reused the bolts after cleaning them, many professional sources and service manuals recommend replacing them. They are torque-to-yield bolts, meaning they stretch when tightened and are designed for one-time use. Given the importance of the seal, using new bolts is a wise precaution.
Is this a DIY-friendly repair?
For an experienced DIY mechanic, this job is achievable. It requires draining the coolant, removing the fuel rail and injectors, and disconnecting various sensors and hoses. However, it is an intermediate-level job that can take several hours. If you are not comfortable with this level of engine work, it is best left to a professional.
🎬 Follow this step-by-step video to replace your intake manifold gaskets.Helpful Videos
Technical Specifications
OEM Part Numbers: 89017825 89017400
Fits 3.8L (3800) Series II V6 Engine (VIN K). Aftermarket upgrade gaskets feature a metal carrier frame instead of the OEM plastic design.
