Cadillac Escalade (1999-2006) Wiper Linkage and Transmission Guide
If your Escalade's wipers are acting up, the problem might not be the motor—it could be the linkage.
- Verify your Escalade's generation before buying: 1999-2000 and 2002-2006 models use different parts.
- If you can hear the wiper motor running but the arms don't move, the linkage is almost certainly the problem.
- Common symptoms include out-of-sync wipers, jerky movement, or the arms slapping the windshield frame.
- Using a wiper arm puller tool is highly recommended to avoid damaging the wiper arms during removal.
Is Your Escalade's Wiper Linkage Failing?
A bad wiper linkage on your 1999-2006 Cadillac Escalade can create a serious safety hazard. The symptoms often get mistaken for a bad wiper motor, but it's important to know the difference. The most common cause of failure is wear and tear on the plastic bushings at the pivot points, or when the arms are put under stress, like trying to operate wipers frozen to the windshield.
Key Symptoms of a Bad Wiper Linkage:
🎬 Watch this video to see common signs of linkage failure.- Wipers Move Out of Sync: One wiper arm moves, but the other doesn't, or they move at different times. This often happens when a linkage arm pops off its pivot.
- No Wiper Movement, But Motor is Humming: 🎬 See what happens when the motor runs but wipers don't move. If you can hear the wiper motor running when you turn the wipers on, but the arms don't move, the linkage has likely become disconnected from the motor.
- Jerky or Stuttering Wipers: Wipers that hesitate or move erratically across the glass can be a sign of a loose or binding linkage.
- Wipers Slapping or Over-Rotating: If the wiper arms travel too far, hitting the edge of the windshield or the cowl, it's a sign of excessive play in the linkage joints.
- Grinding or Popping Noises: Unusual sounds from the cowl area during wiper operation often point to a broken or disconnected linkage piece.
Important: Know Your Escalade's Generation
The 1999-2006 model years cover two different generations of the Cadillac Escalade, and they use different wiper linkages. Ordering the wrong part is a common mistake. Always verify the part fits your exact year before purchasing.
- 1st Gen (1999-2000): Based on the GMT400 platform (similar to the GMC Yukon Denali).
- 2nd Gen (2002-2006): A complete redesign on the GMT800 platform (no 2001 model year was produced).
Choosing the Right Aftermarket Wiper Linkage
For a vehicle of this age, an aftermarket linkage is a smart and cost-effective choice compared to expensive original equipment (OEM) parts. Aftermarket brands like Dorman and others are engineered to match the fit and function of the original.
Brand Tiers
- Dorman: A widely recognized aftermarket brand that often provides a direct replacement for the original part. They are known for engineering parts that address common failure points of the original design and are backed by a team of engineers in the United States.
- Replacement: This category represents budget-friendly options that meet the basic requirements to get your wipers working again. They are designed to be a direct-fit replacement and are a good choice when cost is the primary concern.
Pro Tip: While you are replacing the linkage, it's a good idea to inspect the wiper motor. If the linkage failed due to binding, it may have put extra strain on the motor. It's also the perfect time to replace old wiper blades to ensure the best performance from your new parts.
Cost to Replace a 1999-2006 Cadillac Escalade Wiper Linkage
The cost can vary depending on the part brand and labor rates. Replacing the linkage is a common DIY job for those with basic tools.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Wiper Linkage | $57 - $277 |
| Shop Labor Cost | $130 - $235 |
| Total Professional Replacement (Aftermarket) | $187 - $512 |
Frequently Asked Questions (FAQ)
Do I need to replace the wiper motor 🎬 Learn how to test for a bad wiper motor versus linkage. at the same time?
Not necessarily. If the motor still runs smoothly when disconnected from the old linkage, you likely don't need to replace it. However, if the linkage failure caused the motor to strain or burn out, or if you want to save on future labor, replacing them together as an assembly can be a good idea.
Is a special tool needed for this job?
While most of the job can be done with basic hand tools (like sockets and wrenches), the wiper arms can be seized on their posts. A special tool called a 'wiper arm puller' is highly recommended to remove them without causing damage to the arms or the linkage pivots.
My wipers only work on high speed. Is that a linkage problem?
This is typically a symptom of a failed circuit board (pulse board) inside the wiper motor itself, not the linkage. The high-speed setting often bypasses the board's circuitry.
Can I just replace the small plastic bushings?
In some cases, yes. Aftermarket bushing kits are available. However, if the linkage arms or pivot points are also worn or corroded, replacing the entire assembly is a more reliable and longer-lasting repair.
Are there any recalls for the wiper linkage on my Escalade?
Searches of the NHTSA database did not show any specific recalls for the wiper linkage or transmission on the 1999-2006 Cadillac Escalade. However, a recall was issued for some 2007-2009 models related to a heated washer fluid system that could cause a fire, but this is unrelated to the mechanical linkage itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15043370 15783970 15812089 88958406

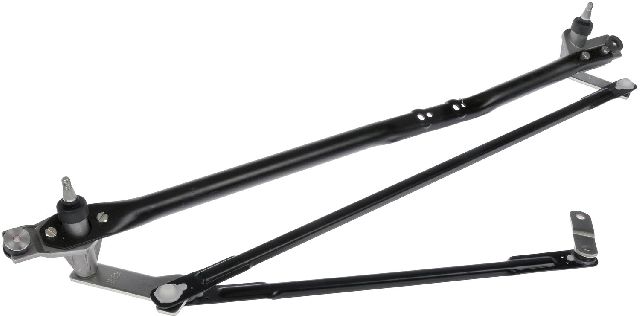

The wiper linkage assembly consists of metal arms, pivot points, and plastic or rubber bushings that connect the wiper motor to the wiper arms. It is located under the plastic cowl panel between the hood and the windshield.
