A Guide to Disc Brake Hardware for the 1999-2006 Volvo S80
Ensure your S80's braking system is quiet and effective by understanding the importance of new brake hardware.
- Always replace the disc brake hardware kit when changing brake pads on your S80 to prevent noise and ensure even wear.
- Sticking calipers and brake drag on this platform are often caused by failing to service guide pins and replace hardware during a brake job.
- Aftermarket brands like Raybestos and Centric offer excellent quality and value for this part.
- Be sure to order the correct kit for the front or rear axle, as they are not interchangeable.
Symptoms of Failing Brake Hardware
Worn or missing brake hardware on your 1999-2006 Volvo S80 can cause several noticeable problems. Because these components are under constant tension and exposed to heat and road grime, they wear out over time. Ignoring them can lead to bigger headaches down the road.
- Brake Noise: The most common symptom is noise. You might hear a rattling or clunking sound, especially when driving over bumps. This happens when weak or missing clips allow the brake pads to move around loosely in the caliper bracket. You may also hear a persistent squealing or scraping sound during braking if the hardware is not allowing the pads to retract properly.
- Uneven Pad Wear: If the hardware is rusted or the springs have lost their tension, the brake pads can sit at a slight angle. This causes them to wear down unevenly, significantly reducing their lifespan and effectiveness.
- Sticking Calipers: While not part of the hardware kit itself, the guide pin boots are often included. If these rubber boots tear, moisture and dirt can seize the caliper guide pins. This prevents the caliper from moving freely, causing the brake on one wheel to drag. This leads to overheating, a burning smell, poor fuel economy, and rapid wear of the pad and rotor.
Choosing the Right Aftermarket Hardware
When you replace the brake pads and rotors on your S80, you must also replace the hardware. It's a small cost that prevents future noise and ensures the new pads wear evenly. For a heavy, premium sedan like the S80, using quality hardware is key to maintaining its quiet, smooth ride.
Aftermarket Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| Better | Raybestos, Centric | These brands are well-regarded in the industry for providing quality that often meets or exceeds original equipment standards. They are a solid choice for most S80 owners, offering a good balance of performance, durability, and value. Kits from these brands are often made from stainless steel for better corrosion resistance. |
| Good | Dynamic Friction, Carlson | These brands offer reliable, standard-replacement hardware kits that will get the job done. They are a dependable and cost-effective option for a daily driven vehicle. |
| Standard | Dorman | Dorman provides a wide range of aftermarket parts. While their hardware will fit and function, some professional mechanics have noted preferences for other brands when it comes to brake components. It remains a widely available and budget-friendly choice. |

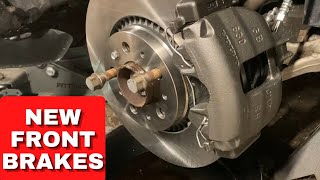

Pro Tip: Pay close attention to whether you are ordering a front or rear kit. 🎬 See how to properly service the rear brake assembly. The hardware is specific to each axle and is not interchangeable. Also, the first-generation S80 was offered with two different front rotor sizes (286mm and 305mm). While this primarily affects the rotor and caliper bracket, always confirm fitment for your specific vehicle 🎬 Watch this step-by-step walkthrough for replacing your front brakes. before ordering any brake components.
Known Issues, Recalls, and TSBs
For the 1999-2006 Volvo S80, there are no specific recalls or Technical Service Bulletins (TSBs) directly related to the disc brake hardware kit itself. However, the braking system as a whole has been subject to some attention.
- ABS Control Module: The S80 from this era is known for potential issues with the ABS control module, which can cause ABS and brake warning lights to appear on the dash. This is an electronic issue and is not related to the mechanical hardware clips and springs.
- Brake Drag: Forum discussions among S80 owners frequently mention issues with brake drag or sticking calipers, often after a brake job. This is almost always traced back to either seized caliper guide pins or not cleaning the surfaces where the new hardware clips sit. This highlights the importance of cleaning and lubricating guide pins and installing a fresh hardware kit with every pad replacement.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with my brake pads?
Yes, absolutely. The old clips and springs have been heat-cycled thousands of times and have lost their tension. Reusing them is a common cause of brake noise and uneven pad wear. For the low cost of a new kit, it is essential insurance for a proper brake job.
Will new hardware fix my squealing brakes?
It can help significantly. If the squealing is caused by pad vibration, new hardware that holds the pads tightly can solve the problem. However, squealing can also be caused by the brake pad material itself or a rotor surface that needs refinishing. A complete brake job including pads, rotors, and hardware is the best way to ensure a quiet stop.
What is included in a typical disc brake hardware kit?
A standard kit for your S80 will include the metal abutment clips (which snap into the caliper bracket) and anti-rattle springs that put tension on the pads. Some more comprehensive kits may also include new guide pin boots and a small packet of high-temperature lubricant.
🎬 Learn the right way to grease and maintain caliper pins.Can I reuse my old brake hardware?
You should not. Old hardware is a primary cause of brake noise and problems after a brake job. The clips lose their spring tension from heat and can't hold the new pads as securely as they should. Always install new hardware with new pads for the best results.

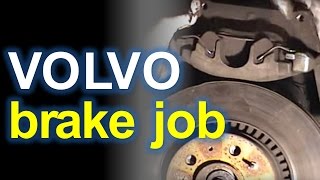

Helpful Videos
Technical Specifications
Kit typically includes abutment clips and anti-rattle springs. May also include guide pin boots. Materials vary, with stainless steel being a premium option.
