A Guide to Replacing the Engine Oil Pan Gasket on Your 2000-2003 Chrysler Voyager
Stop oil leaks and protect your engine by choosing the right oil pan gasket for your Voyager.
- The most common sign of failure is an oil leak, which can lead to a burning smell and potential engine damage if ignored.
- For a reliable repair, choose a quality aftermarket brand like Fel-Pro or Victor Reinz, which often meet or exceed OEM standards.
- Replacement is a manageable DIY job, but accessing rear bolts can be tricky and requires care.
- Properly cleaning surfaces and correctly torquing the bolts in sequence is critical to prevent future leaks.
Is Your Voyager Leaking Oil? Signs of a Bad Oil Pan Gasket
An oil pan gasket is made of materials like rubber that can wear out over time due to heat and age. When it fails, the seal is broken, and oil will start to leak. Here are the common symptoms you'll notice:
- Oil Stains Under Your Van: The most obvious sign is a puddle of dark brown or black oil on your driveway or parking spot. Even if you have a plastic tray under the engine that catches drips, you might not see puddles, but the problem is still there.
- Low Oil Level Warning: If the leak is bad enough, your oil level will drop, which might trigger the low oil light on your dashboard. Driving with very low oil can cause serious engine damage.
- Burning Oil Smell: Oil leaking from the gasket can drip onto hot exhaust parts under the engine. This creates a strong, unpleasant burning oil smell that you might notice while driving or after you park.
- Smoke from the Engine Bay: In some cases, if enough oil leaks onto the hot exhaust, you may see smoke coming from under the hood. This is a serious fire hazard.
Don't Ignore the Drip
A small oil leak might not seem like a big deal, but it should not be ignored. Over time, it can lead to major oil loss, engine overheating, and eventually, catastrophic engine failure. 🎬 Watch this video to learn more about oil leak symptoms. It's also a safety risk for other drivers if your car leaves oil slicks on the road.
Choosing the Right Aftermarket Gasket for Your Voyager
When replacing the oil pan gasket on your 2000-2003 Voyager, you have several aftermarket options. You don't need to pay for an expensive OEM part to get a reliable seal. Aftermarket brands often provide excellent quality, sometimes even improving on the original design. Here’s a look at the brands available:
- Fel-Pro: Fel-Pro is a highly trusted name in the aftermarket gasket industry. They are known for engineering gaskets that solve common OEM issues and provide a durable, long-lasting seal. For a daily-driven vehicle like the Voyager, Fel-Pro is often considered a top choice by professional mechanics and DIYers alike.
- Victor Reinz / Reinz: Victor Reinz is another top-tier brand that is a major supplier of gaskets to vehicle manufacturers (OEM). Their gaskets are known for their precise fit and high-quality, pliable rubber materials. You can be confident that a Victor Reinz gasket will meet or exceed the original factory specifications.
- Apex: Apex is generally considered a budget-friendly brand. While it can provide a functional seal, the materials and construction might not be as robust as those from Fel-Pro or Victor Reinz. For a critical seal like the oil pan gasket, investing a little more in a premium brand is often a wise choice to avoid having to do the job twice.
Pro Tip: One-Piece Gasket is Key
For the V6 engines in the Chrysler Voyager, a one-piece oil pan gasket is the preferred design. It is generally easier to install and less prone to leaks than older multi-piece designs. All the recommended brands offer a modern, one-piece solution.
How Much Does an Oil Pan Gasket Replacement Cost?
The cost can vary depending on whether you do the work yourself or take it to a shop. The job requires removing some components to access all the oil pan bolts, which adds to the labor time.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $25 - $70 |
| Shop Labor | $171 - $251 |
| Total Professional Repair | $248 - $388 |
Frequently Asked Questions
Are there any recalls for the 2000-2003 Chrysler Voyager oil pan gasket?
No, there are no specific recalls or widespread technical service bulletins (TSBs) from Chrysler for oil pan gasket failures on the 2000-2003 Voyager. Leaks are typically due to the normal aging of the gasket material.
Can I do this replacement myself (DIY)?
Yes, this is a feasible DIY project for someone with moderate mechanical skill and basic hand tools. The main challenge is accessing the bolts at the rear of the pan, which may require loosening a support bracket. 🎬 See a step-by-step guide for replacing the V6 gasket. It's important to clean both the engine block and oil pan surfaces thoroughly before installing the new gasket.
Do I need to use sealant with the new gasket?
It depends on the gasket and the engine. Many modern one-piece rubber gaskets are designed to be installed dry. However, it is common practice to apply a small dab of RTV silicone sealant at the points where engine components meet, such as where the timing cover meets the engine block, to ensure a leak-proof seal. Always follow the instructions included with your specific gasket set.
Should I replace the oil pan bolts?
It is not usually necessary to replace the oil pan bolts, but you should clean them thoroughly before reinstallation. When tightening the bolts, follow the correct crisscross pattern and torque specifications (typically measured in inch-pounds) to avoid crushing the gasket or stripping the bolt holes. Over-tightening is a common mistake that can cause leaks.

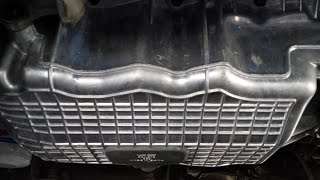

Helpful Videos
Technical Specifications
OEM Part Numbers: 5241062AB
Fits 2000-2003 Chrysler Voyager models, typically with the 3.3L V6 engine. The gasket is a one-piece design made of molded rubber.
