A Guide to Replacing the Engine Valve Cover Gasket on Your 2000-2004 Dodge Ram 3500
Stop that burning oil smell and keep your engine clean by choosing the right valve cover gasket for your Ram 3500.
- A burning oil smell is the most common sign of a failed valve cover gasket on your Ram 3500.
- For the 5.9L Cummins, quality aftermarket brands like Fel-Pro, Victor Reinz, and Mahle are excellent choices.
- The correct torque for the valve cover bolts is critical: 18 ft-lbs. Do not overtighten.
- While the original gasket may be reusable, it is best practice to replace it to ensure a leak-free repair.
Is Your Valve Cover Gasket Failing?
A valve cover gasket leak is one of the most common oil leaks on any engine. Due to constant heat from the engine, the gasket material becomes hard and brittle over time and loses its ability to seal properly. When this happens on your Ram 3500, you'll likely notice a few key symptoms.
Telltale Signs of a Leak:
🎬 Watch: How to diagnose a bad leaking valve cover gasket- Burning Oil Smell: This is the most obvious sign. Oil drips from the leaking gasket onto the hot exhaust manifold, where it burns off and creates a sharp, unpleasant smell.
- Visible Oil and Grime: You will see wet, oily patches around the edge of the valve cover. This oil attracts dirt and road debris, creating a thick, greasy buildup on the side of your engine block.
- Low Engine Oil: A persistent leak will cause your engine oil level to drop over time, forcing you to add oil between changes.
- Smoke from Engine Bay: In cases of a heavier leak, you might see blue or white smoke coming from under the hood as the oil hits hot engine parts.
Fire Hazard Warning
A significant oil leak from the valve cover can be a fire risk. If oil drips onto a very hot exhaust manifold, it can ignite. If you smell burning oil or see smoke, it's important to get the leak fixed promptly.
Choosing the Right Aftermarket Gasket
For the 2000-2004 Dodge Ram 3500, especially the popular 5.9L Cummins model, you have several good aftermarket gasket options. Unlike some parts where OEM is the only reliable choice, quality aftermarket brands provide excellent seals for this application.
A Note on Engine Differences
Your truck could have one of several engines. The vast majority are the 5.9L 24v Cummins diesel. Less common are the 5.9L Magnum V8 and 8.0L Magnum V10 gas engines. The diesel uses one large valve cover and gasket, while the gas engines use two. Furthermore, some late-model 2004 Cummins engines use a more complex gasket that has the fuel injector wiring harness built into it. Be sure to identify your engine before ordering.
Aftermarket Brand Tiers
- Top Tier (Excellent Quality): Brands like Fel-Pro, Victor Reinz, and Mahle are well-respected in the industry. Fel-Pro is known for making gaskets specifically for repair environments, which helps seal surfaces that may not be perfectly flat anymore. Victor Reinz and Mahle are also considered OEM-quality suppliers and are trusted by many professional mechanics.
- Standard Tier (Good Quality): Brands like Crown Automotive and Apex offer a cost-effective solution that meets standard requirements. For a simple gasket application like this, these are often sufficient for a reliable repair.
Can I Reuse My Old Gasket?
The original Cummins valve cover gasket is a high-quality, thick rubber seal that is designed to be reusable. However, this only applies if the gasket is still soft, pliable, and not damaged. If your gasket is the original one from 20+ years ago, it has likely hardened and compressed. To avoid having to do the job twice, it is highly recommended to install a new gasket.
Estimated Replacement Costs
The cost to replace the valve cover gasket can vary depending on your engine and whether you do the work yourself.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $38 - $166 |
| New OEM Gasket Set | $80 - $600+ (varies greatly if it includes the injector harness) |
| Shop Labor | $125 - $300 |
| Total Professional Replacement | $163 - $466 |
Frequently Asked Questions (FAQ)
Do I need to use sealant on the new gasket?
For this application, a high-quality rubber gasket from a brand like Fel-Pro or Victor Reinz is designed to be installed dry. No sealant is typically required. The key is to make sure both the cylinder head and the valve cover surfaces are perfectly clean and free of old gasket material and oil.
What is the torque spec for the valve cover bolts?
For the 5.9L Cummins engine, the correct torque specification is 18 ft-lbs (foot-pounds), which is equivalent to 216 in-lbs (inch-pounds). It is critical to tighten the bolts to this spec and not overtighten them, as doing so can crack the valve cover or damage the new gasket. Always tighten the bolts in a sequence starting from the center and working your way out.
Are there any recalls for this part?
No. While there have been several recalls for the 2000-2004 Dodge Ram 3500 for issues like airbags and steering components, none are related to the engine valve cover gasket.
Is this a difficult job to do myself?
No, this is considered a relatively easy job for a DIY mechanic, especially on the 5.9L Cummins. It requires basic hand tools, a torque wrench, and careful cleaning of the surfaces. The entire job can usually be completed in 1-2 hours.
🎬 Watch this 24V Cummins valve cover gasket replacement walkthroughHelpful Videos
Technical Specifications
OEM Part Numbers: 5179091AD 5367847 5264950 3975641 VS50506R VS50317

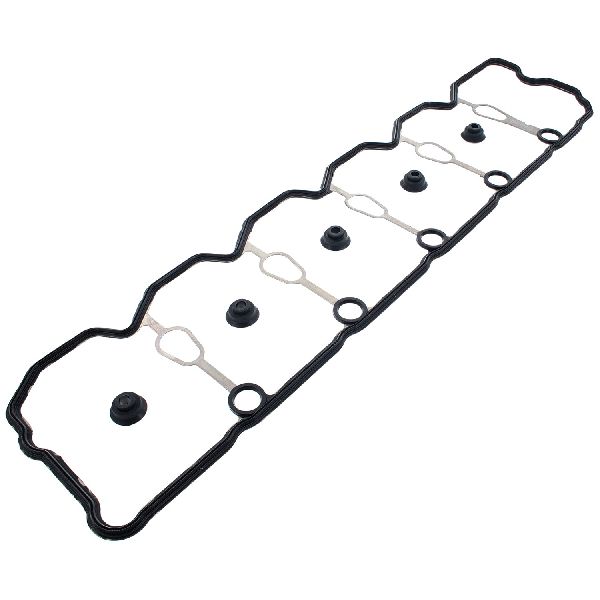

Material: Molded Rubber or Cork-Rubber composite. For 5.9L Cummins, this is a single gasket. For 5.9L/8.0L Gas engines, this is a set of two gaskets. Some 2004+ models may have an integrated injector harness.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
