Ford Excursion 2000-2005 HVAC Heater Hose: A Complete Guide
If you smell coolant or see a puddle, your Excursion's heater hose is the likely culprit—here's what to know.
- The plastic 'Y' or 'T' connectors are the primary failure point; choose an aftermarket replacement with metal connectors if possible.
- A coolant leak is serious. Do not drive the vehicle, as a small leak can quickly become a large one and cause engine overheating.
- The quick-disconnect fittings at the firewall are notoriously difficult to remove; be prepared with the correct tool and patience.
- On a 20+ year-old Excursion, it is wise to replace all heater hoses as a set for preventative maintenance.
Understanding Heater Hose Failure in Your Excursion
On a 20+ year-old truck like the Ford Excursion, rubber and plastic parts are living on borrowed time. The primary weak points in the factory heater hose assemblies are not usually the rubber hoses themselves, but the integrated plastic components. Ford used plastic "Y" or "T" connectors that are molded directly into the hose assemblies to split coolant flow. After two decades of constant heat cycles, these plastic connectors become extremely brittle and are prone to cracking, causing sudden and significant coolant leaks. Another common failure point is at the quick-disconnect fittings that attach the hoses to the heater core at the firewall. These can also become brittle and the internal O-rings can fail, leading to persistent weeping leaks.
Known Issues: Plastic Connectors and Rear Lines
The plastic Y- and T-connectors are the most common failure point on both V8 and V10 engine models. Additionally, Excursions equipped with rear heat have long metal and rubber lines that run along the passenger-side frame rail; these are susceptible to corrosion and physical damage, causing leaks near the rear passenger door area.
Choosing the Right Aftermarket Heater Hose
For a vehicle of this age, aftermarket parts often provide a significant improvement over the original factory design. While OEM Motorcraft hoses were good quality, many have been discontinued or are very expensive, and they still use the failure-prone plastic connectors.
Aftermarket brands have addressed these weak points directly:

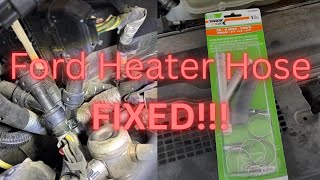

- Tier 1 (Recommended Upgrade): Look for brands like Dorman that offer an "OE Fix" line. These parts specifically replace the original plastic Y-connectors with robust metal ones, permanently solving the main design flaw. 🎬 Watch: How to upgrade to a durable metal Y-connector. This is the smartest choice for long-term reliability.
- Tier 2 (Good Quality): Gates and Continental are reputable brands that produce quality replacement hoses. Forum users often report that Gates hoses have excellent fitment, which is crucial for a complex part like this. These are solid choices if a metal-connector version isn't available for your specific hose.
- Tier 3 (Acceptable): Dayco is another major manufacturer. While their hoses are generally fine, some users have reported fitment issues or slightly thinner material compared to Gates. They are an acceptable replacement, but be prepared to double-check the shape and bends against your old part before installation.
Pro Tip: Replace in Sets
If one heater hose has failed due to age, the others are not far behind. It is highly recommended to replace the inlet, outlet, and any associated bypass hoses at the same time to prevent having to do the job again in a few months. Also, consider replacing the spring clamps with new worm-gear clamps for a secure seal.
Ford Excursion Heater Hose Cost
| Part Type | Price Range |
|---|---|
| New Aftermarket Hose Assembly | $11.67 - $97.84 |
| New OEM (Motorcraft) Hose Assembly | $200 - $310+ |
| Shop Labor for Replacement | $150 - $400 |
Frequently Asked Questions (FAQ)
Why did my heater hose fail?
Most likely, it failed due to age. The original hoses use plastic connectors and fittings that become brittle after years of exposure to heat and pressure. These plastic parts eventually crack, causing a coolant leak. The rubber itself can also degrade, but the plastic is almost always the first point of failure.
Can I just replace the broken plastic 'Y' connector?
Yes, this is a common DIY repair. Instead of buying a whole new assembly, many owners cut out the failed plastic connector and splice in a metal T-fitting (often from copper or brass plumbing parts) and secure it with hose clamps. This can be a more durable and cheaper solution than a direct replacement.
What are the quick-disconnects and are they hard to remove?

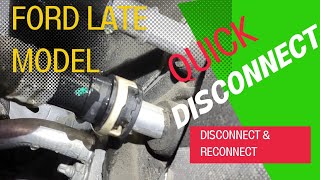

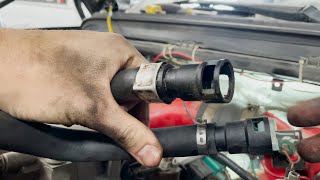

These are fittings at the firewall that connect the hoses to the heater core. They require a special, inexpensive tool to release. 🎬 Watch: How to properly use the quick disconnect tool. However, after 20+ years, they are often seized and extremely difficult to remove, even with the proper tool. Many owners find they have to break the old plastic fitting to get it off, so be prepared for a frustrating experience.
Should I replace my heater hoses proactively?

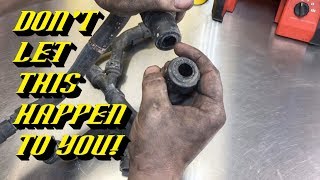

Absolutely. If your hoses are original, they are well past their intended service life. A sudden failure can leave you stranded and cause the engine to overheat, risking catastrophic damage. 🎬 See why these brittle hoses are a common breakdown risk. Replacing them as preventative maintenance is a smart investment in your Excursion's reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3C7Z-18472-BA
Hose assemblies often include multiple branches for front and rear HVAC systems, with integrated plastic T-connectors and quick-disconnect fittings. Material is typically EPDM rubber.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
