GMC Jimmy Ignition Lock Cylinder Guide (2000-2005)
Having trouble with your key not turning or getting stuck in your 2000-2005 GMC Jimmy? This guide is for you.
- A failing ignition lock cylinder on a 2000-2005 Jimmy commonly causes the key to get stuck or become difficult to turn.
- This is a simple DIY repair for most owners, typically taking less than an hour with basic tools.
- A dead battery can also cause the key to get stuck, so check your battery's health before replacing parts.
- Quality aftermarket brands like Dorman or Standard Ignition are excellent choices and may be more durable than the original part.
Is Your GMC Jimmy Ignition Lock Cylinder Failing?
If your key is giving you trouble, the ignition lock cylinder is a likely suspect. Over time, the small metal parts inside the cylinder wear down from thousands of key turns. This wear can cause a variety of frustrating and common issues in the 2000-2005 GMC Jimmy.
Common Failure Symptoms
- Key Won't Turn: The most common problem is the key refusing to turn in the ignition, sometimes feeling completely jammed. This can happen because of worn tumblers inside the cylinder or a worn-out key.
- Key Gets Stuck: You might be able to start the truck, but then you can't turn the key all the way back to the 'off' position to remove it. This can leave your truck in the accessory position, which will drain the battery.
- Difficulty Inserting/Removing Key: The key might not slide in and out smoothly anymore. You may have to jiggle it to get it to work.
- No-Start Condition: In some cases, a failing lock cylinder can prevent the ignition switch from getting the signal to start the engine. You'll turn the key and nothing will happen.
Check This First!
Sometimes, a key stuck in the ignition isn't the cylinder's fault. On these trucks, a very low or dead battery can prevent the key release mechanism from working. If your key is stuck and the truck has no power, try charging or replacing the battery first.
🎬 Watch: What to do if your key is stuck in the ignition.Known Issues for the 2000-2005 GMC Jimmy
General Motors issued a Technical Service Bulletin (TSB) for a problem where the key is difficult to remove or binds in the ignition. The fix was to replace the original ignition lock cylinder with a newly designed part, suggesting that aftermarket parts designed to meet or exceed original quality are a solid choice. Another TSB (02-02-35-001) updated the replacement procedure, noting that a Passlock™ anti-theft system relearn might be necessary after replacement.
Additionally, a safety recall (GM Recall 14696) was issued for some 1998-2002 GM S/T models, which includes the GMC Jimmy. This recall addressed a faulty ignition lock cylinder housing (not the cylinder itself) that could allow the key to accidentally move from the 'run' to the 'accessory' position, potentially shutting off the engine while driving. While you are replacing the cylinder, it is wise to be aware of this related component issue.
Choosing the Right Aftermarket Ignition Lock Cylinder
For a vehicle like the 2000-2005 Jimmy, a high-quality aftermarket lock cylinder is often a better choice than tracking down a new old stock (NOS) OEM part. The original parts had known issues, and reputable aftermarket brands often improve on the original designs.
- Good Tier (Value): Brands like Replacement offer a direct-fit part that gets the job done at a low cost. They are a good option for budget-conscious repairs.
- Better Tier (Quality Aftermarket): Dorman is a well-known brand that specializes in fixing common OE problems. Their ignition lock cylinders are known for easy installation and reliability, often coming as a complete kit.
- Best Tier (Exceeds OE): Standard Ignition (SMP) has a strong reputation for producing parts that meet or exceed original specifications. They are known for engineering durable components that address the weak points of the factory design.
What's the Difference: Lock Cylinder vs. Ignition Switch?
It's a common point of confusion. The Ignition Lock Cylinder is the mechanical part your key goes into. The Ignition Switch is the electronic part behind it that the cylinder turns. If your key is physically stuck or hard to turn, the cylinder is the problem. If the key turns fine but the truck has electrical starting issues (like no power to accessories or no crank), the switch is more likely the culprit.
🎬 See this step-by-step guide for replacing the electronic ignition switch.DIY Replacement & Cost
Replacing the ignition lock cylinder on a 2000-2005 Jimmy is a straightforward job that most DIYers can handle.
| Aspect | Details |
|---|---|
| DIY Difficulty | Easy. Requires basic hand tools. |
| Estimated Time | 30-45 minutes. |

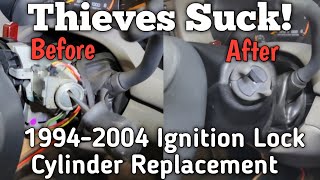

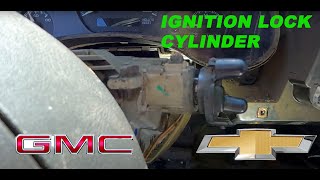

| Process Overview | Disconnect the battery, remove the plastic steering column covers, turn the key to the 'run' or 'start' position, press a small release pin on the housing with a pick or small screwdriver, and pull the old cylinder out. The new one slides right in. | 🎬 Watch this video for a complete removal and installation walkthrough.
Cost Breakdown
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $33 - $87. |
| Shop Labor | $100 - $250. |
| Total Professional Replacement | $133 - $337. |
Frequently Asked Questions
Do I need to program the new keys or the truck?
Usually, no. The Passlock™ anti-theft system on these trucks has its critical components in the ignition lock housing, not the cylinder itself. In most cases, you can swap the cylinder without needing any special programming. However, a GM service bulletin does mention that a relearn procedure may be required in some cases, so be prepared for that possibility.
Can I use my old keys with the new lock cylinder?
No. The new ignition lock cylinder is a new lock and will come with its own set of matching keys. You will now have one key for your ignition and a separate, original key for your doors and tailgate.
My key turns, but the truck won't start. Is it the lock cylinder?
Probably not. If the key turns smoothly but the engine doesn't crank or accessories don't work, the problem is more likely the electronic ignition switch located behind the lock cylinder, or another issue in the starting system.
Is it safe to drive with a failing ignition lock cylinder?
It is not recommended. If the key gets stuck, you could be stranded or left with a dead battery. If the cylinder is related to the issue in recall 14696, there is a risk of the engine shutting off while driving, which is a serious safety hazard.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15794826 15919460 19120038
This is a mechanical lock cylinder located in the steering column. It does not typically contain the Passlock™ transponder chip, which is located in the surrounding housing. Replacement usually does not require key reprogramming.
