Guide to 2000-2006 Chevrolet Impala Engine Intake Manifold Gaskets
Leaking coolant or a rough idle on your Impala often points to a common and fixable intake gasket failure.
- The original plastic-frame intake gaskets are a known failure point; always replace them with an updated metal-frame design.
- This is a common problem on both the 3.4L and 3.8L V6 engines in the 2000-2006 Impala.
- A coolant leak that mixes with engine oil can cause catastrophic engine failure. Check your oil for a milky appearance.
- For a lasting repair, use a quality aftermarket set from a brand like Dorman or Victor Reinz that specializes in problem-solving parts.
A Notorious but Fixable Problem
If you own a 2000-2006 Impala, you may have heard about intake manifold gasket issues. The original gaskets, especially on the 3.4L V6, used a plastic frame design. Over time, exposure to engine heat and coolant (specifically Dex-Cool) can cause this plastic to degrade, crack, and fall apart. This leads to coolant and air leaks, which are the root of most symptoms.
The Original Gasket Design is Flawed
The factory-installed gaskets on many GM 3.4L and 3.8L V6 engines from this era are known to fail prematurely. The plastic carrier material breaks down, causing the gasket's sealing rings to shift and leak. Aftermarket manufacturers and GM itself later released updated designs to solve this problem permanently.
Choosing the Right Aftermarket Gasket Set
When replacing your intake gaskets, it is critical to choose an updated design. Do not use a new old stock (NOS) gasket with the original plastic frame. All reputable aftermarket brands offer an improved gasket made with a metal frame.
Brand Tiers for Your Impala
- Premium Problem-Solvers (Recommended): Brands like Dorman and Victor Reinz specialize in re-engineering OEM parts to fix known flaws. Their kits for the Impala often feature a sturdy, one-piece aluminum or steel frame gasket that resists degradation from coolant and heat. These are highly recommended for a long-term fix.
- OEM Supplier: ACDelco is the original equipment supplier for GM. While their early gaskets were the problem, their current replacement parts are the updated metal-frame design. Ensure you are buying the new version, not old stock.
- Standard Aftermarket: Brands like Apex and Cometic Gasket provide gaskets that meet or exceed original specifications. For this specific repair on the Impala, it is vital to confirm that the kit you are buying contains the modern metal-frame design, as these brands may also offer basic replacement types. 🎬 See an unboxing of a complete Apex intake gasket set.
Pro Tip: Get the Kit
Always buy a complete intake manifold gasket set. These kits include not just the main lower intake gaskets, but also the upper intake (plenum) gaskets, throttle body gasket, and other small seals and O-rings you will need to complete the job correctly. Replacing all included components at once prevents future leaks.
Frequently Asked Questions (FAQ)
Why did my original gasket fail?
The original gaskets used a nylon/plastic frame that was not fully compatible with long-life Dex-Cool coolant. Over thousands of heat cycles, the plastic becomes brittle, cracks, and allows coolant to leak externally or into the engine's oil, and can also cause vacuum leaks.
Should I replace my intake manifold bolts?
Yes, it is highly recommended. The intake manifold bolts on these engines are often torque-to-yield, meaning they stretch when tightened and are designed for one-time use. Reusing them can lead to improper sealing and leaks. Many premium gasket sets include new bolts.
What else should I replace while I'm in there?

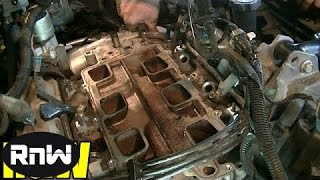

Since you'll have the top of the engine apart, it's a great time to inspect and replace the thermostat, coolant elbows (if applicable on the 3.8L), and valve cover gaskets if they show any signs of leaking. Also, plan on 🎬 Watch a step-by-step guide for replacing upper and lower gaskets. an oil and filter change immediately after the repair to remove any coolant that may have contaminated the oil.
Can I use any coolant after the repair?
It is best to stick with an OAT coolant that meets the Dex-Cool specification, but the most important thing is to ensure the system is completely flushed and filled with fresh coolant. The new metal-frame gaskets are designed to be resistant to modern coolants.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89017825 12573662 89017554
The key specification is the gasket's carrier material. The original design used a nylon composite carrier. The improved, and currently recommended, design uses an aluminized steel carrier for superior durability and resistance to heat and modern coolants.
