A Comprehensive Guide to the 2000-2007 Audi A6 Quattro Engine Water Pump
Everything you need to know before replacing the water pump on your C5 or C6 Audi A6 Quattro.
- Always replace the water pump as part of a complete timing belt kit, including the belt, tensioners, and idlers.
- Choose a high-quality aftermarket pump with a metal impeller from a brand like Hepu or Graf to prevent common failures.
- This is a complex, labor-intensive job best left to a professional mechanic with Audi-specific experience.
- Never drive an overheating engine; pull over immediately to prevent catastrophic damage.
Symptoms of a Failing Water Pump
A water pump rarely fails without warning. For the 2000-2007 Audi A6 Quattro, the signs are usually clear if you know what to look and listen for. Ignoring them can lead to severe engine damage.
🎬 Watch: 5 common symptoms of a bad water pump- Coolant Leaks: This is the most common symptom. You may notice puddles of pink or green fluid under the front-center of your car after it has been parked. These leaks often come from a small 'weep hole' on the pump, which is designed to leak when the internal seals start to fail.
- Engine Overheating: If you see the temperature gauge on your dashboard climbing into the red, it's a serious sign that coolant is not circulating properly. You should pull over immediately to prevent engine damage like a warped cylinder head.
- Whining or Grinding Noises: A high-pitched whining or grinding sound coming from the front of the engine that changes with RPM is a classic sign of a failing water pump. This noise is caused by a worn-out bearing inside the pump.
- Steam from the Engine: If you see steam coming from under the hood, it means the engine is severely overheating. Pull over safely and turn off the engine immediately.
The Most Important Rule: Replace Everything at Once
On all engines available in the 2000-2007 Audi A6 Quattro, the water pump is driven by the timing belt. To access the water pump, a mechanic must remove the timing belt. Because of this, the water pump is considered a standard part of a timing belt replacement job. The recommended service interval is typically between 60,000 and 90,000 miles. Never replace just the water pump without also replacing the timing belt, tensioners, and idler pulleys. The labor is the same, and a failed belt will destroy your engine.
Choosing the Right Aftermarket Water Pump
When shopping for a new water pump, you'll find several brands and one very important feature to consider: the impeller material.
Key Decision: Metal vs. Plastic Impeller
Many original Audi water pumps from this era used a plastic impeller. Over time, this plastic can become brittle and break, causing an immediate and complete loss of coolant circulation. Most high-quality aftermarket replacements feature a more durable metal impeller to prevent this common failure point. Unless you are aiming for a 100% original restoration, choosing a pump with a metal impeller is a highly recommended upgrade for reliability.
Aftermarket Brand Tiers
- Tier 1: OEM Supplier Quality (Hepu, Graf, Saleri): These German or Italian brands are often the original equipment manufacturers for Audi or are known for producing parts of equal or greater quality. They are a top choice for enthusiasts and mechanics who want the best reliability. Brands like Graf are well-known for offering metal impeller upgrades.
- Tier 2: Reputable Aftermarket Kits (Gates): Gates is a leading name in the industry, famous for its complete timing belt kits which typically include a water pump. While the pump in the kit may be sourced from various manufacturers, Gates has a strong reputation and their kits are a reliable, all-in-one solution.
- Tier 3: Standard/Budget Brands (URO Parts, GMB, etc.): These brands offer a more budget-friendly option. While functional, they may not have the same reputation for long-term durability as the European OEM suppliers. Given the massive labor cost involved in a water pump replacement, most Audi specialists recommend investing in a higher-quality pump to avoid having to do the job twice.
Pro Tip: The cost of the water pump itself is a small fraction of the total repair bill, which is dominated by labor. Spending an extra $30-$50 on a top-tier pump from a brand like Hepu or Graf is a wise investment.
Cost to Replace an Audi A6 Quattro Water Pump
The replacement cost is high due to the complexity of the job. The entire front of the car must be put into a 'service position', 🎬 See how to put your Audi into service position and special tools are needed to lock the engine timing. The cost is essentially the same as a full timing belt service.
| Item | Estimated Cost |
|---|---|
| Aftermarket Water Pump Part | $52 - $205 |
| Full Timing Belt Kit (Recommended) | $200 - $500 |
| Shop Labor (6-9 hours) | $900 - $1,800 |
| Total Estimated Cost | $1,100 - $2,300 |
Frequently Asked Questions
Do I have to replace my timing belt at the same time?
Yes, absolutely. The water pump is located behind the timing belt. The labor to get to the pump is 95% of the work. Replacing the belt, tensioners, and idlers along with the pump is standard procedure and critical for engine health.
Should I choose a water pump with a metal or plastic impeller?
A metal impeller is strongly recommended. The original plastic impellers are a known failure point on these engines, as they can crack and break apart. A high-quality aftermarket pump with a metal impeller is a significant reliability upgrade.
Are there any recalls for the water pump on my 2000-2007 A6?
No. While there were recalls for electric coolant pumps on much newer Audi models, there are no active recalls or common TSBs for the main, belt-driven water pump on the 2000-2007 A6 Quattro.
Can I replace the water pump myself?
This is not recommended for a DIY mechanic without significant experience and special tools. The job requires putting the front of the car in a service position, removing many components, and correctly setting the engine's mechanical timing. Mistakes during this process can lead to catastrophic engine failure.
🎬 Watch this complete timing belt and water pump installation guideHelpful Videos
Technical Specifications

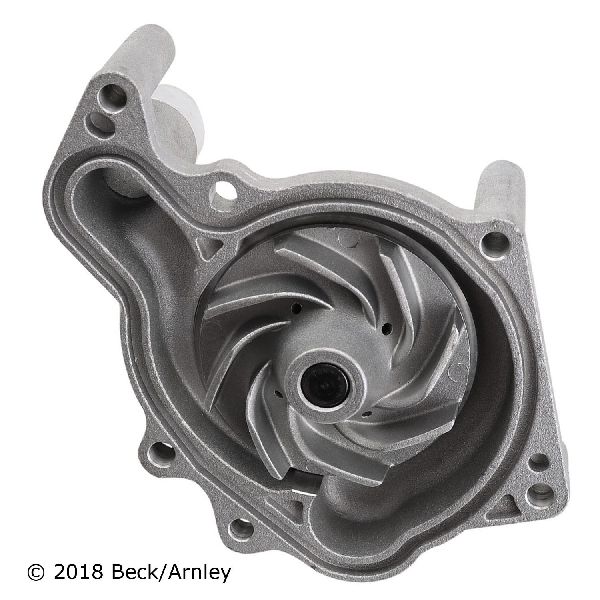

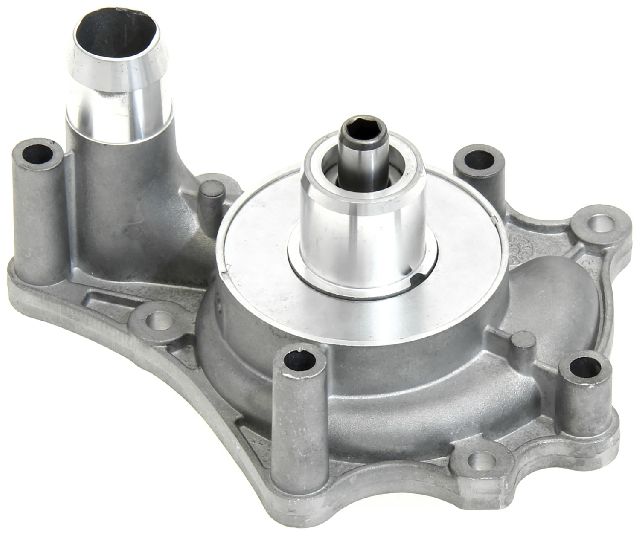

OEM Part Numbers: 078121006A 078121006 078121004H 06C121004H
Belt-driven centrifugal pump. Aftermarket options available with composite/plastic or upgraded metal impellers.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
