Chevrolet Suburban 2500 Crankshaft Position Sensor Guide for 2000-2007 Models
Everything a 2000-2007 Suburban 2500 owner needs to know about a failing crankshaft position sensor.
- A failing sensor will cause stalling or a no-start condition, often with trouble code P0335.
- Replacement requires removing the starter motor to access the sensor on the engine block.
- A 'Crankshaft Variation Relearn' procedure with a professional scan tool is MANDATORY after replacement.
- Due to the difficult labor, using a high-quality aftermarket brand like Delphi, Standard (SMP), or NGK is strongly recommended over budget parts.
Understanding Crankshaft Sensor Failure in Your Suburban 2500
A failing crankshaft position sensor in a 2000-2007 Chevrolet Suburban 2500 can cause serious and sudden problems. Symptoms often start small, like occasional stalling, but can quickly lead to a situation where the truck will not start, leaving you stranded. This guide will walk you through the symptoms, how to choose the right aftermarket replacement part, and what to expect during the replacement process.
🎬 Watch this step-by-step replacement guide for your Suburban.Symptoms of a Bad Crankshaft Position Sensor
If your Suburban's crank sensor is failing, you will likely experience one or more of the following issues:
- Engine Cranks but Won't Start: This is the most definitive symptom. The starter will turn the engine over, but it will never fire up because the computer doesn't see the crankshaft spinning.
- Intermittent Stalling: The engine may stall unexpectedly while driving, especially after it has warmed up. It might restart after cooling down for a while, or it might not.
- Check Engine Light: A faulty sensor will almost always trigger a Check Engine Light. The most common trouble code associated with this failure is P0335 (Crankshaft Position Sensor "A" Circuit Malfunction).
- Rough Idle and Misfires: The engine may run poorly, shake at idle, or misfire because the computer can't time the spark and fuel delivery correctly.
- Poor Acceleration: You may notice a significant loss of power and sluggish acceleration.
Recall Information for 8.1L V8 Owners
General Motors issued a safety recall (GM Recall #06083, NHTSA Campaign #07V521000) for some 2001 model year Chevrolet Suburbans equipped with the 8.1L V8 engine. The recall addressed a high failure rate of the original crankshaft position sensors, which could cause the engine to stall without warning, increasing the risk of a crash. While this recall was specific to that year and engine, it highlights the critical nature of this sensor across the entire 2000-2007 generation.
Choosing the Right Aftermarket Sensor
The labor to replace this sensor is significant, so choosing a quality part is essential to avoid doing the job twice. Aftermarket sensors for your Suburban 2500 fall into a few tiers.
- Premium Aftermarket (OEM-Equivalent): Brands like Delphi, Standard Ignition (SMP), and NGK/NTK are excellent choices. Delphi was an original equipment supplier to GM for many parts, and their quality is well-regarded. These brands engineer their parts to meet or exceed factory specifications and are the recommended choice for reliability.
- Standard Aftermarket: Brands like Dorman, Hitachi, and Walker Products offer a balance of price and quality. They are a reliable option for many repairs, though some professional mechanics prefer to stick with premium brands for critical electronic sensors like this one.
- Economy Brands: While brands like Global Parts, True Tech, and other lower-priced options are available, they can be a gamble. Given the difficulty of replacing this sensor, saving a few dollars on the part itself may cost you more in the long run if it fails prematurely.
CRITICAL: The Crankshaft Variation Relearn Procedure
After you replace the crankshaft position sensor, you are not finished. You MUST perform a "Crankshaft Position Variation Relearn" (also called a CASE Relearn). This procedure uses a professional-grade scan tool to calibrate the new sensor to the engine computer. Skipping this step will likely cause the truck to run poorly, set a P1336 trouble code, and disable the misfire detection system. Most DIY code readers cannot perform this function; it requires a bi-directional scan tool. 🎬 Watch a demonstration of the mandatory crankshaft relearn procedure. Plan on taking the vehicle to a repair shop to have this procedure done immediately after replacing the sensor.
Estimated Replacement Costs
The cost to replace the crankshaft position sensor can vary based on who does the work and the part you choose.
| Item | Estimated Cost |
|---|---|
| New OEM (ACDelco) Part | $60 - $120 |
| New Aftermarket Part | $27 - $96 |
| Shop Labor (including relearn) | $150 - $300 |
| Total Professional Replacement | $210 - $420 |
Frequently Asked Questions
Is replacing the crank sensor a DIY job?
It can be, but it is challenging. The sensor is located behind the starter motor on the engine block. You must work under the truck and remove the starter to get access. The job requires a good set of tools and patience. The biggest hurdle for a DIYer is the mandatory crankshaft variation relearn procedure, which requires an expensive scan tool. Most people will need to have a shop perform the relearn after they install the part.
What is the difference between a crankshaft and a camshaft sensor?
They work together but have different jobs. The crankshaft sensor tracks the rotation of the crankshaft (the main rotating assembly in the engine). The camshaft sensor tracks the position of the camshaft, which controls the valves. Both are critical for engine timing, but a bad crankshaft sensor is more likely to cause a complete no-start condition.
My truck has an 8.1L V8. Is the replacement different?
The principle is the same, but the location may be slightly different. On the 8.1L V8, the sensor is often cited as being on the driver's side of the engine block, near the bellhousing. On the 6.0L V8, it is on the passenger side, above the starter. Regardless of the engine, access is tight and the starter is usually in the way.
🎬 See how to remove the sensor on 8.1L engines.Will a cheap sensor from Amazon or eBay work?
It might work initially, but the quality and longevity are not guaranteed. Electronic sensors are complex, and cheaper units are more likely to fail from heat and vibration. Because replacing this sensor is labor-intensive, it is highly recommended to use a quality, name-brand part to ensure you only have to do the job once.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12560228 213-354

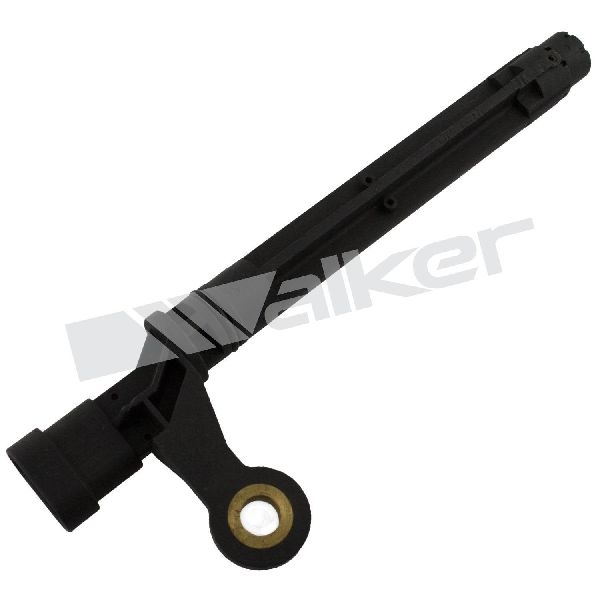

This is a 3-pin magnetic or Hall-effect sensor that reads the crankshaft reluctor wheel. The correct part for the 6.0L V8 is typically ACDelco 213-354. The 8.1L V8 may use a different part number (e.g., 12575172). Always verify the part number for your specific engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
