Nissan Maxima A/C Expansion Valve Guide (2000-2015)
Is your Maxima's A/C blowing warm? Your expansion valve might be the problem—here's what you need to know.
- A failing expansion valve typically causes warm A/C, inconsistent cooling, or frost from the vents.
- Replacement is a difficult job requiring special A/C service tools; it is not recommended for most DIYers.
- For this hard-to-access part, choosing an OEM-quality brand like Denso is strongly recommended over cheaper alternatives to ensure longevity.
- Always replace the receiver/drier and all related O-rings anytime the expansion valve is replaced.
Symptoms of a Failing A/C Expansion Valve
When an expansion valve fails, it usually gets stuck either open or closed. This disrupts the refrigerant flow and can cause several noticeable problems. Look out for these common signs in your 2000-2015 Maxima.
- Warm or Inconsistent Air: This is the most common symptom. The air from your vents may be warm, or it might switch between cool and warm. A valve stuck closed starves the evaporator of refrigerant, while a valve stuck open can flood it, both leading to poor cooling. 🎬 Watch: A visual guide to common expansion valve failure symptoms.
- Frost on Vents: If the valve is stuck open, it can allow too much refrigerant into the evaporator, causing it to get too cold and freeze. You might see frost coming from the A/C vents.
- Hissing Sound from Dash: Some Maxima owners report hearing a hissing or rushing sound from the passenger side of the dashboard when the A/C is running. This can be a sign of a faulty valve.
- A/C Compressor is Always On: A bad valve can send incorrect signals, causing the A/C compressor to run constantly, which can lead to further damage.
Is It the Expansion Valve or Something Else?
These symptoms can also be caused by other issues, like a refrigerant leak, a bad compressor, or a clogged cabin air filter. A proper diagnosis with manifold gauges to check system pressures is the only way to be sure. Low refrigerant can also cause noises that sound like a bad expansion valve.
Choosing the Right Aftermarket Expansion Valve
For a part that is difficult to access, part quality is key. You don't want to do this job twice. Here is an honest breakdown of the available brands.
Brand Quality Tiers
- Tier 1 (OEM Quality): Denso
Denso is a well-known Original Equipment Manufacturer (OEM) for Nissan and many other Japanese automakers. Choosing a Denso aftermarket part is the safest bet for fit, performance, and longevity. It is often the exact same part that was installed at the factory, without the dealership price tag. For a difficult job like this, spending a little more on a Denso valve is highly recommended. - Tier 2 (Standard Aftermarket): Four Seasons & Global Parts

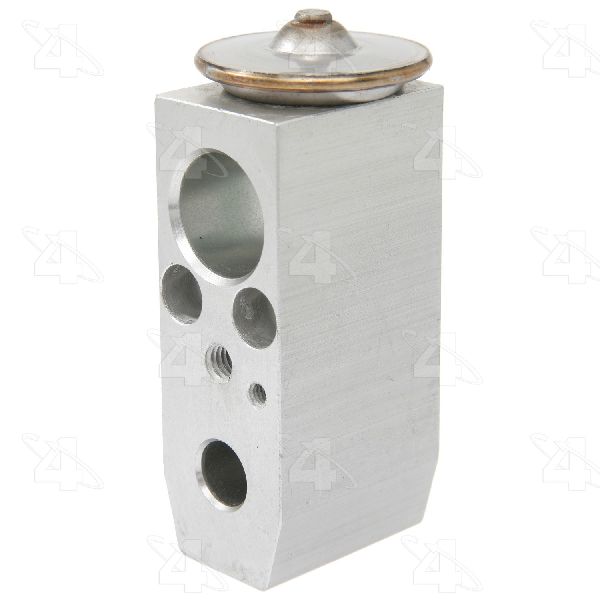

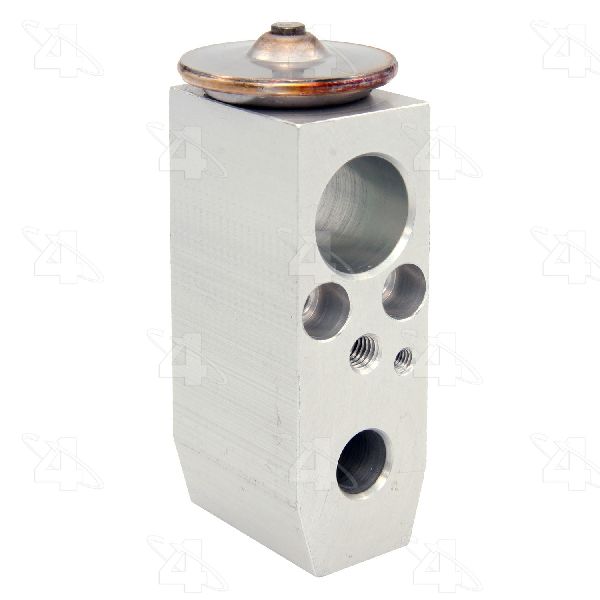

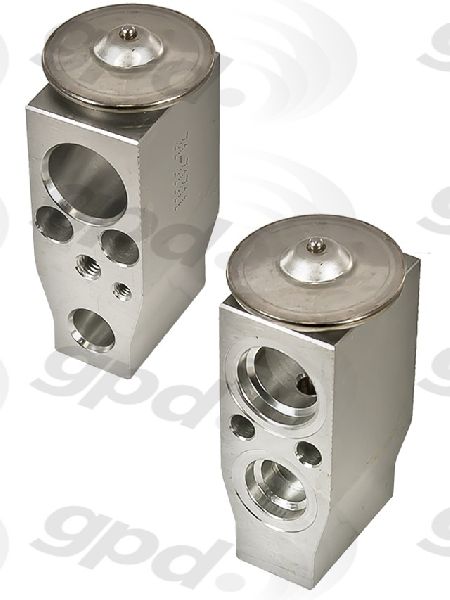

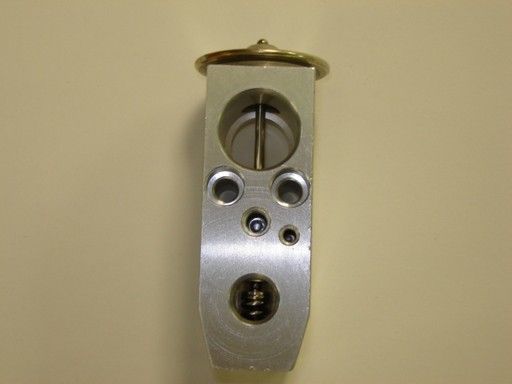

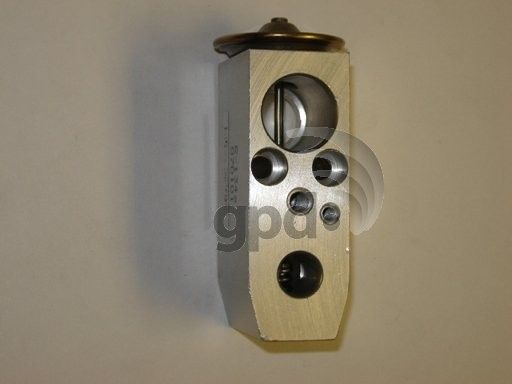

Four Seasons and Global Parts are established aftermarket brands that offer a more budget-friendly option. They produce parts that meet original specifications and are a viable choice if the budget is tight. However, for a part buried deep in the dash or firewall, many experienced mechanics would advise against taking a risk on non-OEM parts to avoid premature failure.
Pro Tip: Replace in Sets
Anytime you open the A/C system, you MUST replace the receiver-drier (also called an accumulator). It absorbs moisture from the system, and it can only hold so much. A new drier is cheap insurance to protect your entire A/C system. Also, always install new O-rings lubricated with the correct PAG oil on any connection you open.
Cost to Replace a Nissan Maxima A/C Expansion Valve
Here is a general breakdown of what to expect in terms of cost. Prices will vary based on your location and specific model year.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Expansion Valve | $28 - $85 |
| New OEM Expansion Valve | $140 - $170 |
| Shop Labor | $200 - $300 |
| Total Professional Replacement | $340 - $465 |
Frequently Asked Questions (FAQ)
Where is the expansion valve located on my 2000-2015 Maxima?
The expansion valve is located at the firewall on the passenger side of the vehicle, where the two aluminum A/C lines go into the passenger cabin. Access can be from the engine bay (after removing the wiper cowl) on some generations, or from inside the car by removing the glove box and blower motor assembly on others.
🎬 Watch: How to access and replace the expansion valve body.Is this a DIY job?
This is not recommended for beginners. The job requires special tools to safely evacuate and recharge the A/C system. Access is very difficult on most Maxima models, sometimes requiring removal of the dashboard, glove box, or wiper cowl assembly. 🎬 See this walkthrough for replacing the valve on a 2014 Maxima. Given the complexity and the need for an A/C machine, this job is best left to a professional or a very experienced DIY mechanic.
Are there any recalls on the A/C expansion valve?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database and Technical Service Bulletins (TSBs) did not show any recalls or specific service campaigns for the A/C expansion valve on 2000-2015 Nissan Maxima models.
Do I have to replace my A/C compressor at the same time?
Not necessarily. However, if your A/C compressor failed internally, it likely sent metal debris throughout the system. This debris will clog the new expansion valve and cause it to fail immediately. In the case of a compressor failure, you must replace the compressor, the receiver/drier, and the expansion valve, and have the entire system professionally flushed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 92200-4M405 92200-9N00A 92200-6GU0A
Block-type Thermal Expansion Valve (TXV). O-ring fittings. Specific superheat and tonnage settings are based on vehicle year.
